Femtosecond Fiber Laser, 540nm, 100nJ

Request Quote   Ships: Request | Model Orange

Key Features
  • High Stability and Beam Quality
  • Low Amplitude and Phase Noise
  • All-PM Solution
  • figure 9® Technology
  • Laser Output in less than 60 Seconds after Pressing On-Button

Customers Also Considered:

MODEL Orange
PRICE Request Price

Product Overview:

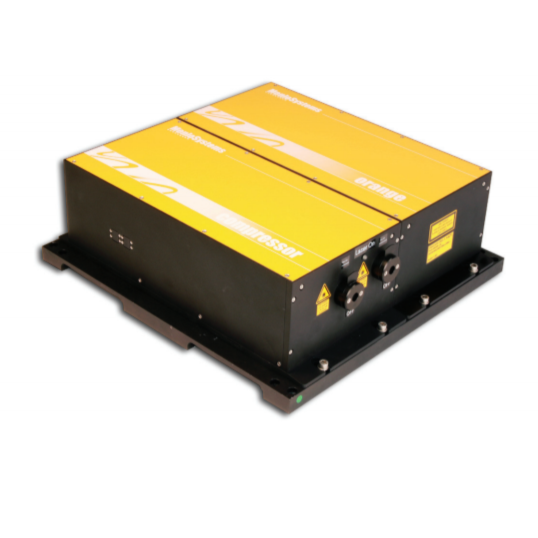

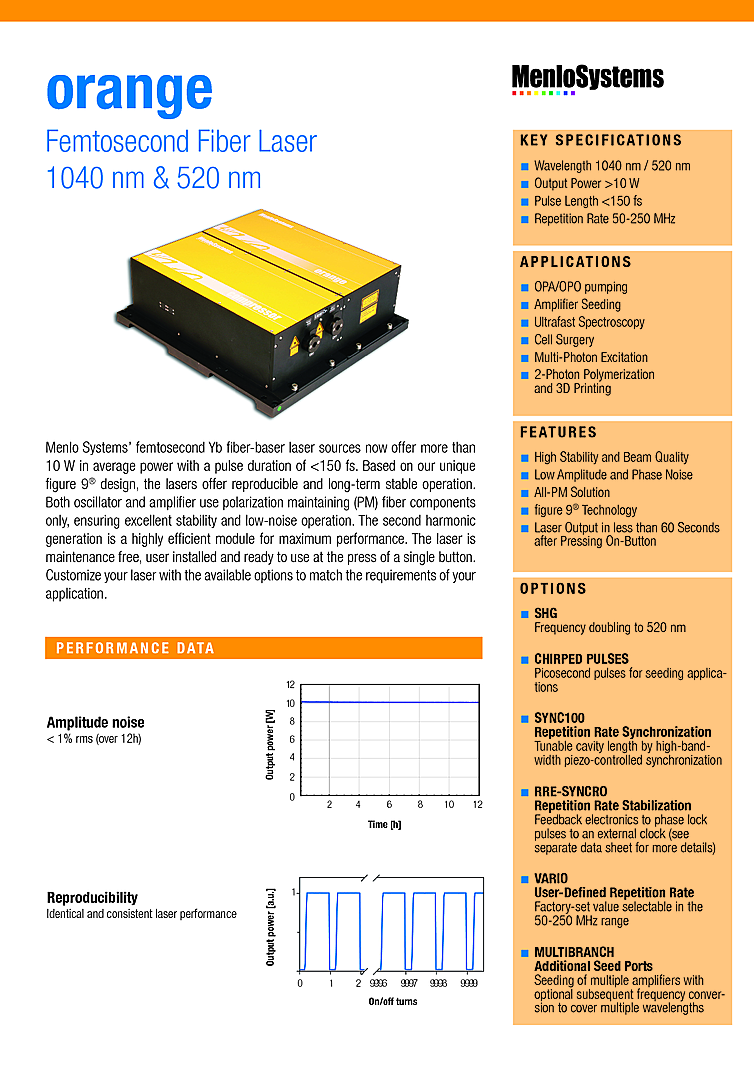

This ORANGE series femtosecond laser oscillator by MenloSystems provides sub-150fs pulses at around 1040nm and at any repetition rate between 50-250MHz.

Menlo Systems’ femtosecond Yb fiber-baser laser sources now offer more than 10 W in average power with a pulse duration of <150 fs.

Menlo Systems unique Figure 9 design results in reproducible and long-term stable operation. The ‘Figure 9’ design is based on the well-established nonlinear optical loop mirror (NOLM) mode locking mechanism. With this mechanism, oscillator and amplifier use polarization maintaining (PM) fiber components only, ensuring excellent stability and low-noise operation.

The ORANGE femtosecond laser oscillator has an average output power of up to 10W and pulse duration of <150 fs. It has a synchronization option to an external clock and self-starting mode-locking mechanism.

This product could be used for the following applications:
- OPA/OPO pumping
- Amplifier Seeding
- Ultrafast Spectroscopy
- Cell Surgery
- Multi-Photon Excitation
- 2-Photon Polymerization and 3D Printing

This device offers you a reliable performance and is built to last a lifetime. It is highly stable and offers a low cost of ownership, giving you a better value in the long run.

Other versions with high-power (>1W), SHG (520nm) and chirped-pulse (ps) versions are also available.
