L-BAND EDFA; Extended L-Band; 158mW Output Power; 1570nm - 1620nm Gain Range

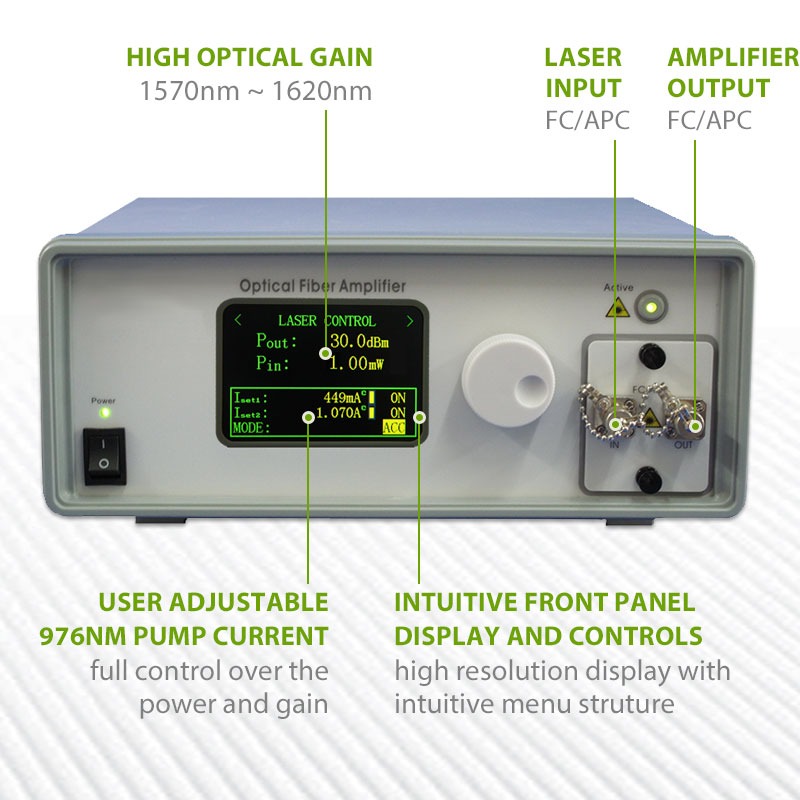

  • EDFA,Erbium Doped Fiber Amplifier, L-Band, Front Panel

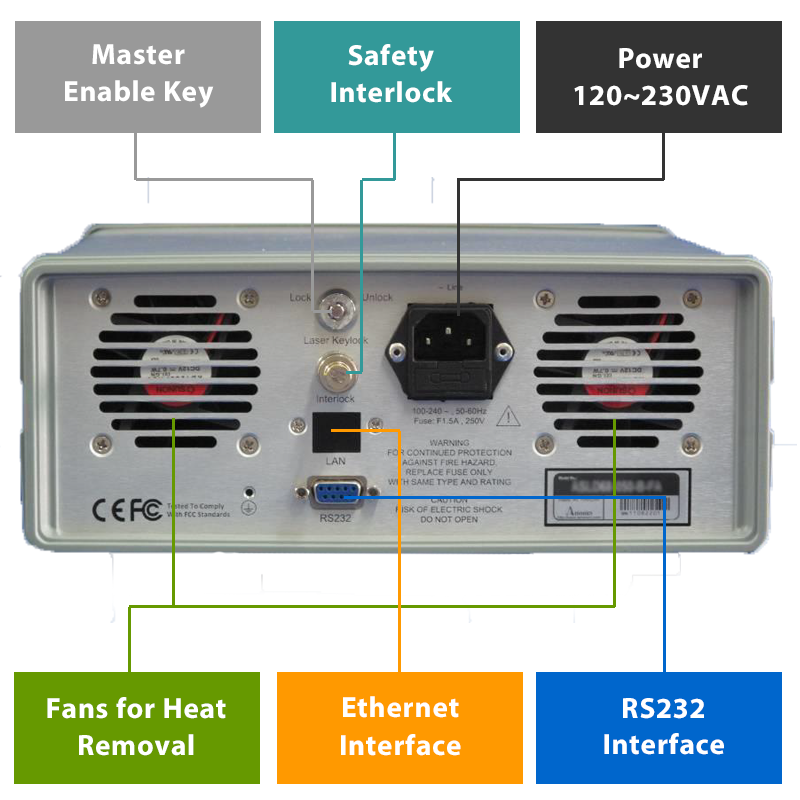

  • L-Band EDFA, Erbium Doped Fiber Amplifier Rear Panel

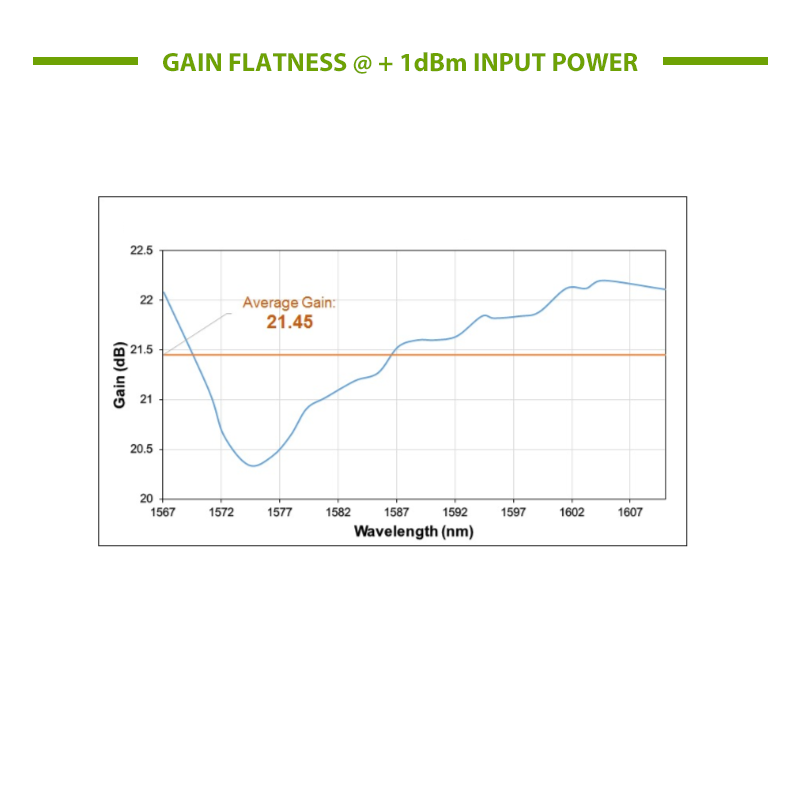

  • L Band EDFA Gain Curve
  • Benchtop EDFA Front Panel

Request Quote   Ships: Inquire | Model AMN-EDFA-LX2

Key Features
  • User Adjustable Output Power 0 to 158 mW (+22 dBm)
  • Gain Range 1570 nm - 1620 nm
  • User Controlled Pump Current Levels
  • Manufactured by Amonics for Laser Lab Source
  • Sold & Supported in North America by:
    Solid State Laser Source, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AMN-EDFA-LX2
PRICE Request Price
Optical Specifications
  • Saturation Output Power: +22 dBm
  • Operating Wavelength Range: 1570 nm - 1620 nm
  • Gain (dB): Up to 25 dB
  • Noise Figure (typ.): < 6.0 dB
  • Gain Flatness (peak to peak): Typical 1.0 dB, Maximum 2.0 dB
  • Polarization Dependent Gain: < 0.5 dB
  • User Set Control Modes: ACC (current), APC (power feedback), AGC (gain feedback)
  • Input / Output Isolation: > 30 dB
user INTERFACE
  • Front Panel: Alphanumeric Color Front Panel Interface with Adjustment Control Knob
  • Remote: RS232, LabView control software included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connector Options: FC/APC, FC/UPC, SC/APC, SC/UPC
  • Optical Fiber Options: PM fiber, SMF-28 (optional)
General Specifications
  • Operating Temperature Range: 0ºC to +40ºC
  • Storage Temperature: -10ºC to +70ºC
  • Power Supply: 90 – 240 VAC, 47 – 63 Hz
  • Dimensions: 260 mm(W) x 330 mm(D) x 120 mm(H)
  • Chassis Safety Control: Key-lock switch, BNC
  • Interlock Key

Product Overview:

Benchtop L-Band EDFA Overview

These L-Band EDFA instruments are high power erbium doped fiber amplifiers (EDFA) which offer excellent power stability and high output power – up to to +22 dBm, 158 mW of output power. These L-Band EDFA's are designed with high power and high reliability pump lasers and pump combiners to provide excellent long term reliability.

These affordable Turn-Key benchtop instruments allow users to control pump power individually as well as view the overall power from the front panel or remote interface. The turnkey microprocessor-controlled EDFA provides illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. These EDFA's are available in both benchtop and rackmount casings.

These EDFA's feature high output power as well as high gain values with very low noise. They can be customized to accommodate a wide range of input signal levels (contact us for customized product quotes). The standard base model is specified for the wavelength range of 1570nm ~ 1603nm. Extended L-Band wavelength range models are available, providing amplification in the range of 1570nm ~ 1620nm.
