Home  >  CW Lasers   >  Lumentum  >  CDPS532M



CW Laser, 532nm, 50mW; Diode-Pumped Solid State Laser from Lumentum

  • CW Laser 532nm 50mW Diode-Pumped Solid State Laser from Lumentum

Request Quote   Ships: . | Model CDPS532M

Key Features
  • Compact
  • Excellent performance-to-price ratio
  • Low noise
  • Excellent beam quality
  • High reliability

Customers Also Considered:

MODEL CDPS532M
PRICE Request Price
general
  • Wavelength: 532 ± 1 nm
  • Power stability: (2 hour, 25±3°C): <1.0%
  • Mode quality M2: <1.2
  • Beam diameter: 0.6 mm ±10%
  • Beam divergence (full angle): <1.2 mrad
  • Polarization ratio (E-vector is vertical): >100:1
  • Noise (rms, 20 Hz to 2 MHz): <0.5%
  • Ellipticity: <10%
  • Pointing stability (2 h, 25 ± 3°C): ± 30 µrad
optical output power
  • Model: CDPS532M-010 Output Power: 10mW
  • Model: CDPS532M-020 Output Power: 20 mW
  • Model: CDPS532M-050 Output Power: 50mW
environmental
  • Base plate temperature, operating: 10 to 45°C
  • Shock (11 ms duration), operating: 1g
  • Vibration (sinusoidal, 5 to 500 Hz), operating: 0.3g
APPLICATIONS
  • Biotechnology
  • Semiconductor instrumentation
  • Reprographics
  • General instrumentation

Product Overview:

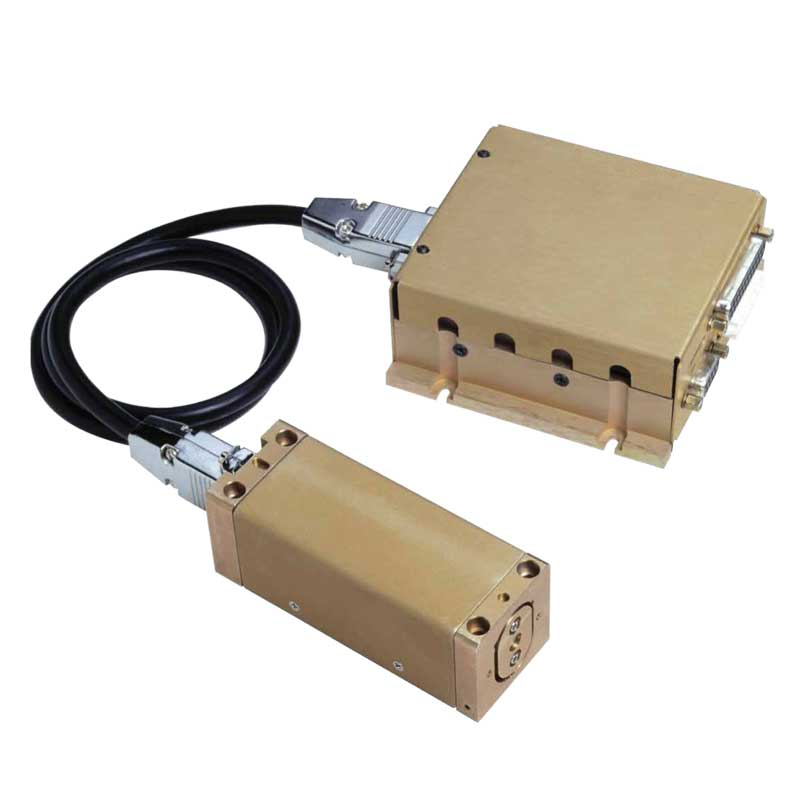

The Lumentum CDPS532M is a continuous wave 10 to 50 mW 532 nm diode-pumped solid state laser in a very compact package. Its head contains the laser cavity together with a beam-shaping telescope to provide a low divergence laser with excellent mode quality. The laser controller allows full control and diagnostics of the laser system.The controller provides analog and RS232 interfaces. The laser system is powered by an external 5 V direct current (DC) power supply connected to the controller. Diagnostic features include laser parameters like output power, pump diode current, operating hours, and more. Control functions feature interlock and system status, as well as external output power control.
