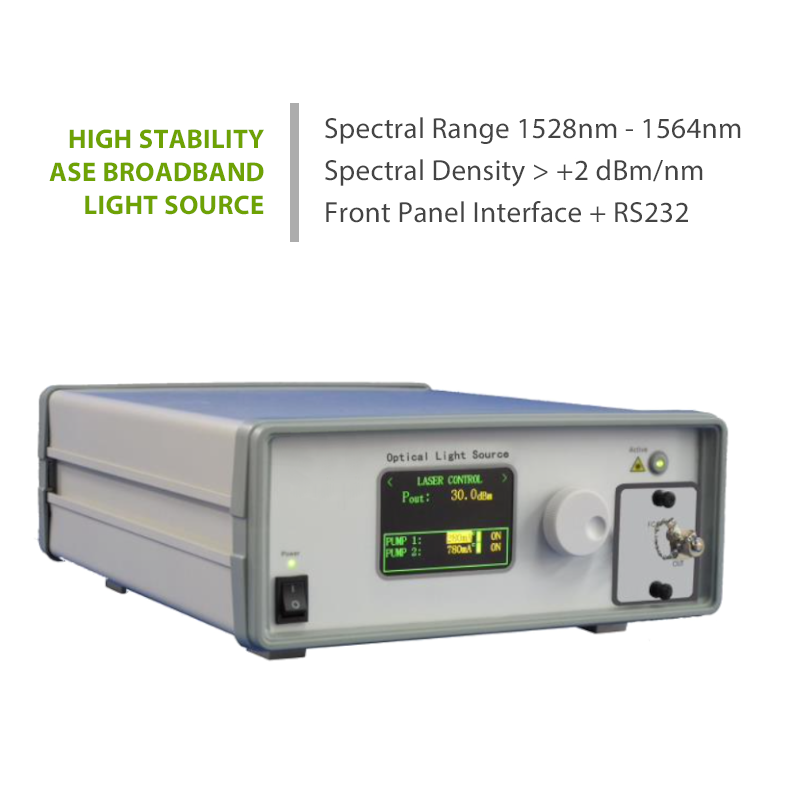

BROADBAND LIGHT SOURCE; C-Band ASE; 200mW Output Power
- Benchtop Instrument

  • C-Band ASE Light Source, 23dBm Output Power
  • High Power 1550nm EDFA; C-Band, Output Power up to 10 Watts Diagram
  • C-Band ASE Light Source, 23dBm Output Power

Request Quote   Ships: 3 weeks | Model RLS/AMN-ASE-C-BAND-200MW

Key Features
  • C-Band (ASE) Amplfied Spontaneous Emission Broadband Light Source
  • User Adjustable Output Power
  • Wide Spectral Range with Excellent Spectral Stability
  • Offered by Amonics, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by:
    Solid State Laser Source, part of the
    Laser Lab Source Marketplace Group
Shipping & Warranty Information

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL RLS/AMN-ASE-C-BAND-200MW
PRICE Request Price
specifications (Typical @ T = 25 °C)
  • Output Power Range: up to 23 dBm
  • Operation Wavelength Range: 1535nm - 1563nm
  • Min. Spectral Density: +2 dBm/nm
  • Spectral Range: 1528 nm to 1564 nm
  • Output Stability: ±0.02 dB (over 8 hrs),
  • Output Isolation: > 40 dB

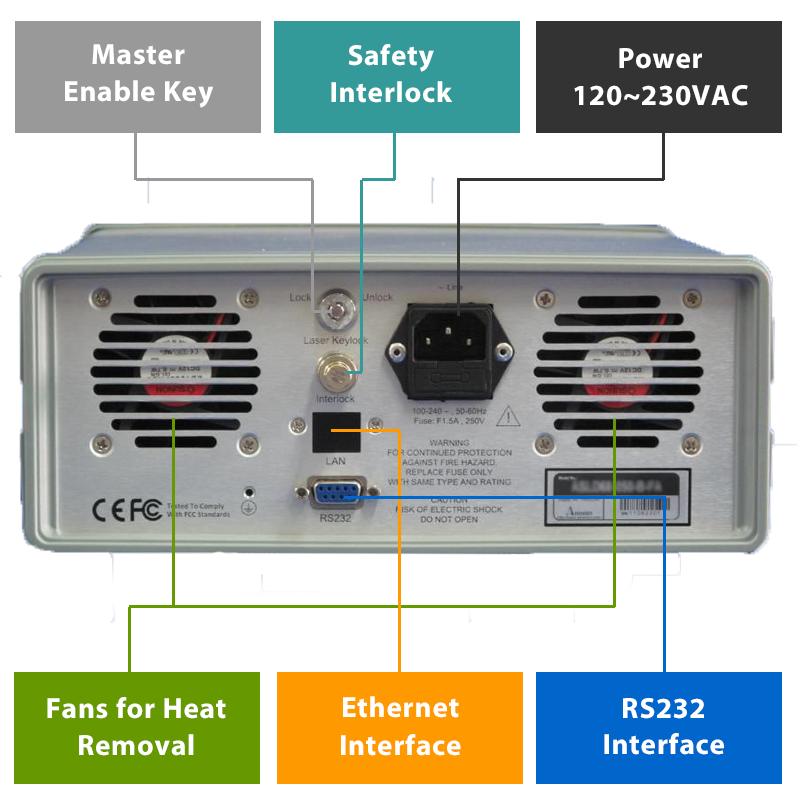

USER INTERFACE
  • Alphanumeric Color Front Panel Interface w/ Adjust Knob
  • Remote: RS232, LabView Control Software Included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connector: FC/APC
  • Optical Fiber Options: SMF-28 Fiber
GENERAL SPECIFICATIONS (all models)
  • Operation Temperature: 0 to 40 ℃
  • Required Shore Power: 90-240 (VAC), 47-63 Hz
  • Dimensions: 260mm x 330mm x 120mm
  • Safety Control 1: Key-Lock Switch
  • Safety Control 2: BNC Interlock
APPLICATIONS
  • Laboratory R&D
  • SONET/SDH System
  • Optical Communications
  • Fiber Optic Sensing
  • CATV and Telecommunications R&D

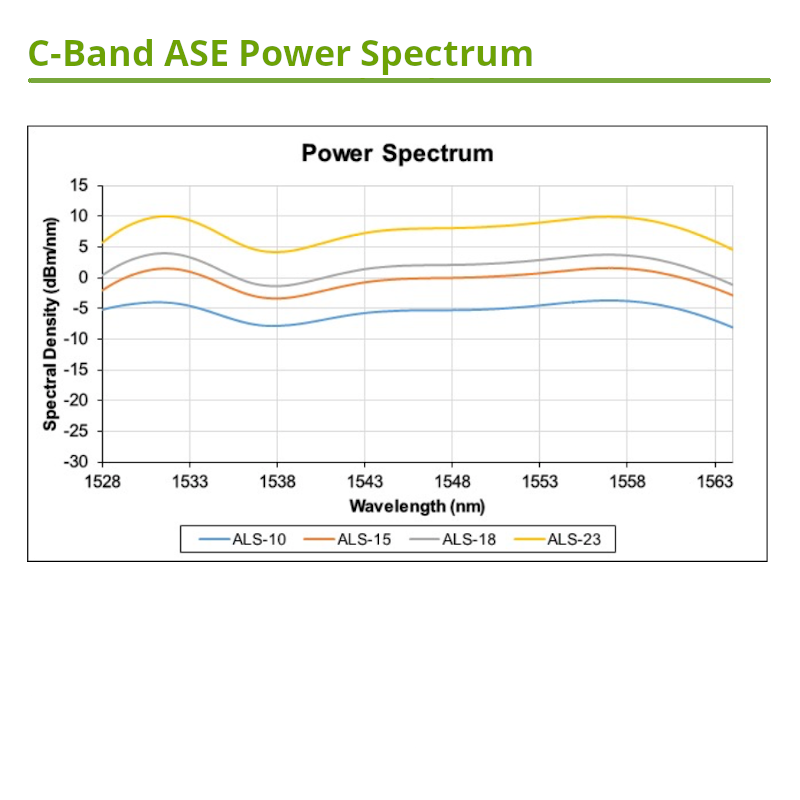

C-Band ASE Source Models; Inquire for details
  • AMN-ASE-C-BAND-1MW; 10 dBm Output Power
  • AMN-ASE-C-BAND-30MW; 15 dBm
  • AMN-ASE-C-BAND-60MW; 18 dBm
  • AMN-ASE-C-BAND-100MW; 20 dBm
  • AMN-ASE-C-BAND-200MW; 23 dBm

Product Overview:

High Power ASE Overview:

These ASE sources are 1550nm range C-band erbium doped fiber amplifier based broadband light sources. They are simple to operate, affordable benchtop instruments for laboratory research or manufacturing test applications. The user can adjust ASE settings through an easy to use front panel with an intuitive menu and control knob. Settings can also be made by remote interface. These units come with RS232 in the standard product offering, and an ethernet interface can be ordered as an option. LabVIEW based control software is available and ships free of charge. Please contact us if you would like to view the Operating Manual or see the remote interface command set.

Extensive Integrated ASE Protection Features:

These broadband light sources offer an extensive array of integrated pump laser diode protection features. They offer current and voltage limits for the pump lasers as well as (TEC) over-temperature shut-down. Both of these functions protect the internal pump sources. The chassis is equipped with a BNC interlock to allow the user to set conditional shut-down conditions for the ASE.

Careful attention to component selection and circuit board design allow these 1550nm range ASE's to produce high gain at a low noise level. Noise levels of < 5 dB with a very flat gain profile over the C-Band make these instruments ideal for many applications.
