High Power EYDFA, up to 5 Watts of Output Power, C-Band Polarization Maintaining Amplifier

Request Quote   Ships: In-Stock (USA) | Model AMN-EDFA-5W

Key Features
  • 5 Watts of Output Power (@10mW Source Laser Diode Input Power)
  • Polarization Maintaining Fiber (standard SMF model also available)
  • User Control of Current Level to Internal Pump Laser Diodes
  • User Adjustable Output Power
  • > 30dB Gain, Low Noise, High Polarization Extinction Ratio
  • Offered by Amonics, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by:
    Solid State Laser Source, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AMN-EDFA-5W
PRICE Request Price
5 Watt EYDFA Specifications
  • Output Power Range: Up to 5 Watts (@10 mW Source Laser Input Power) > +37 dBm
  • Standard Operation Wavelength Range: 1545nm to 1565nm
  • Extended Range Specification: > 5 Watts Output Power @ 1534.25nm (Included with this model)
  • Extended Range Specification: > 2 Watts Output Power @ 1568.77nm (Included with this model)
  • Output Isolation: > 25 dB (min)
  • Polarization: Linear
  • Polarization Dependent Gain: (typ) 0.3 dB
  • Polarization Mode Dispersion: < .3 ps
  • User Set Control Mode 1: ACC (pump current power control)
  • Polarization Extinction Ratio: > 20 dB
  • Power Adjustment Step Size: 0.01 dBm
  • Gain Medium: Erbium Ytterbium Doped Fiber
  • Noise Figure: Max. 7.0 dB
USER INTERFACE

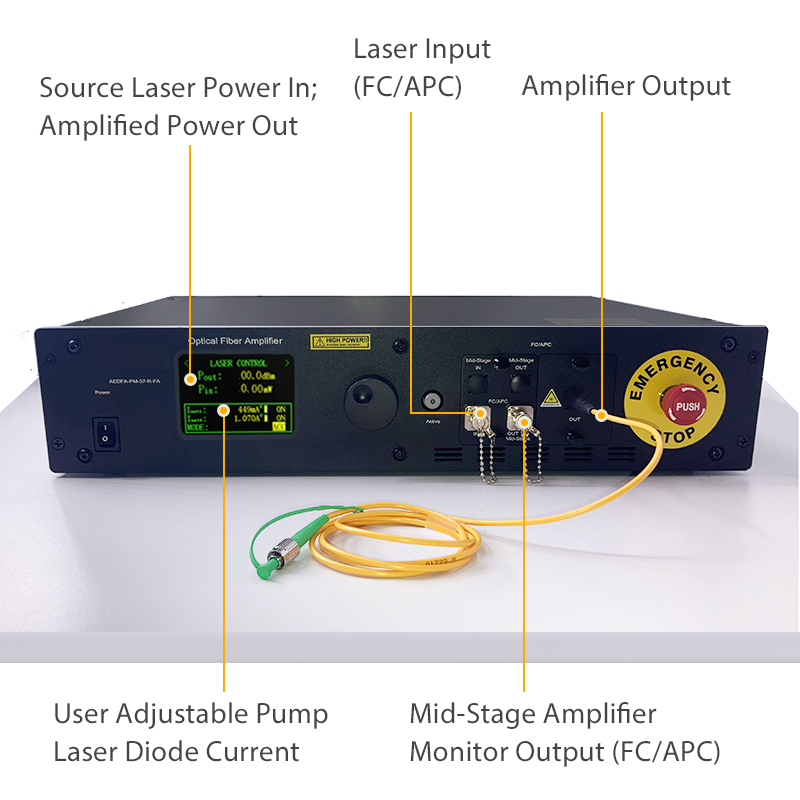

  • Alphanumeric Color Front Panel Interface w/ Adjust Knob
  • Remote: RS232, LabView Control Software Included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connectors Input and Output: FC/APC
  • Optical Fiber Options: PM / Panda Fiber (SMF-28 optional)
  • Output Fiber (Fixed to Front Panel): 1 Meter Long, PVC Coated (3 mm OD) Cable w/ FC/APC Connector
GENERAL SPECIFICATIONS (all models)
  • Operation Temperature: 0 to 40 ℃
  • Required Shore Power: 90-240 (VAC), 47-63 Hz
  • Dimensions (mm): 2U Rack Height: 485 (W) x 515 (D) x 90 (H)
  • Power Monitoring: Output Power (Input Power Optional)
  • Remote Control RS2323 Port: DB-9 female
  • TCPIP/Ethernet optional
  • Protection: Pump Lasers (TEC) Over-Temperature
  • Protection: Pump Lasers Current Limit
  • Optical Fiber: PMF Panda 1550nm PM Fiber
  • Connectors: FC/APC (Others Available on Request)

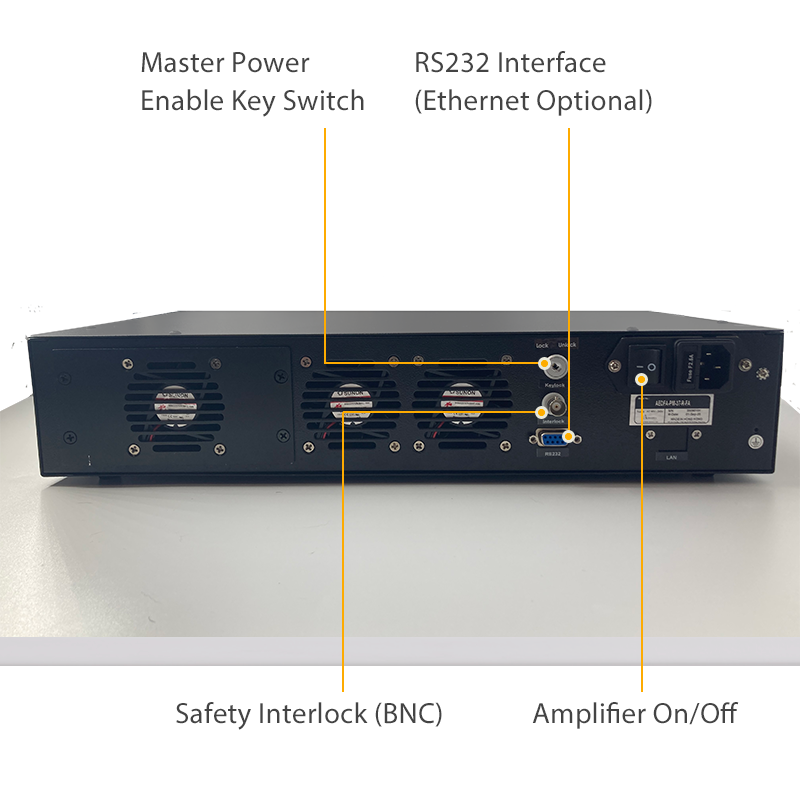

  • Safety Control 1: Key-Lock Switch
  • Safety Interlock / Control 2: BNC Interlock
  • Safety Control 3: e-Stop
  • Safety Control 4: Loss of Input Power Detection and Pump Shut Down
Laser Classification
  • Class IV
Additional Extended Range Specifications for this model
  • > 5W Output Power @1534.25nm
  • > 2W Output Power @1568.77nm
Input Laser Diode Power Level
  • -3 dBm to +10 dBm

Product Overview:

High Power Erbium-Ytterbium Amplifier Overview:

These high power EYDFA co-doped fiber amplifiers are C-band erbium-ytterbium co-doped fiber amplifiers. They are simple to operate, affordable benchtop instruments for laboratory research or manufacturing test applications. These units provide the user with full control of the internal 976nm pump laser diode current levels. The user can also control the instrument in a gain feedback or power feedback mode. These high power amplifiers offer an intuitive front menu structure and control knob interface. They can also be operated using the RS232 rear panel interface or can be ordered with an ethernet interface (optional). LabVIEW based control software is available and ships free of charge. Please contact us if you would like to view the Operating Manual or see the remote interface command set.

EYDFA Utilizes Telcordia Qualified High Reliability Components:

These amplifier utilize high power and high reliability Telcordia qualified 976nm pump lasers as well as Telcorida qualified combiners. The principal of operation is the laser light from the pump wavelengths and power level excite the erbium and ytterbium ions embedded in the fiber from their ground state to achieve the resultant high excitation levels, and the commensurate high gain levels of up to 35 dB. Because they are polarization maintaining amplifiers, they amplify the light polarized along the slow axis of the fiber. Each high power EDFA unit has integrated isolators for the intput and the output.

Careful attention to component selection and circuit board design allow these 1550nm range EDFA's to produce high gain at a low noise level. Noise levels of < 5 dB with a very flat gain profile over the C-Band make these instruments ideal for many applications.
