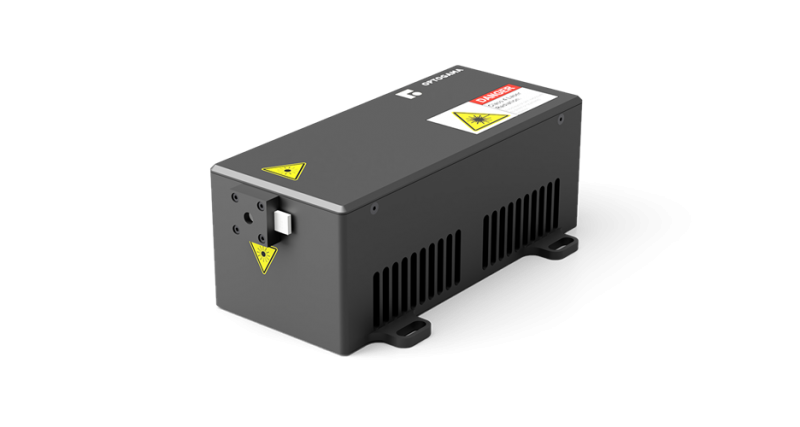

532nm Picosecond Laser, 20μJ @ 1kHz

Request Quote   Ships: Contact | Model Q-Switched-532nm

Key Features
  • Wavelength: 532nm (± 1 nm)
  • Energy: 20 μJ
  • Pulse Duration: 800ps
  • Pulse Repetition Rate: 1 kHz
  • Additional Available Wavelengths: 1064nm

Customers Also Considered:

MODEL Q-Switched-532nm
PRICE Request Price
OPTICAL (TYPICAL)
  • Wavelength: 532nm
  • Wavelength Tolerance: ± 1 nm
  • Pulse Energy: 20 μJ
  • Average Output Power: 20mW @ 1 kHz
  • Pulse duration: <800 ps
  • Pulse Repetition Rate: 1kHz
  • Beam Quality : M2<1.2
  • Beam Profile: TEM00
Applications
  • Material processing and Micromachining
  • LIBS
  • Marking
  • LIDAR & Laser Ranging
  • Biophotonics
General
  • Laser head dimensions: 170 mm x 103 mm x 64 mm
  • Laser driver dimensions: 110 mm x 50 mm x 70 mm
  • Working temperature: 10 – 40°C
Options
  • Wavelength: 1064nm
  • Pulse Repetition Rate: 100 Hz - 20 kHz
  • Pulse Duration: < 800 ps to 10 ns
  • OEM Versions

Product Overview:

The DPSS laser uses a q-switched design to provide greater than 20µJ of energy at 532nm wavelength and up to 400µJ at 1064nm. The 4 hour energy stability at repetition rate of 100 Hz is better than 2%. The 1kHz repetition rate at 532nm and <800ps pulse width makes this laser ideal for applications in materials process, micromachining, LIBS, biophotonics, and other general scientific applications. The laser controller features USB and RS232 interface along with internal/external TTL control. High quality beam output is achieved by careful attention to the design and manufacturing at Optogama.
