Single Mode 532nm Laser Module; Scientific Series DPSS Laser Module

Request Quote   Ships: 2 weeks | Model RLS-MSLS-532

Key Features
  • Single Longitudinal Mode
  • Spectral Linewidth < 0.00001 nm
  • Power > 50 mW
  • Transverse Spatial Mode: TEM00
  • Includes Power Supply Controller

Customers Also Considered:

MODEL RLS-MSLS-532
PRICE Request Price
SPECIFICATIONS
  • Central Wavelength: 532 nm (±1 nm)
  • Longitudinal Mode: Single
  • Spectral Linewidth: <0.00001 nm
  • Coherence Length: > 50 meters
  • Operating Mode: CW
  • Output Power: > 50 mW
  • Power Stability (rms, over 4 hours): < 5%
  • Transverse Spatial Mode: TEM00
  • M^2 Factor: < 1.2
  • Beam Diameter at Aperture: 0.32 ±15% ( 1/e2 , mm)
  • Beam Divergence, Full Angle: < 3 mrad
  • Polarization Ratio: > 100:1,Vertical
  • Pointing Stability Over Temp. < 6 µrad/°C
  • Noise of Amplitude (rms, 20Hz~20MHz): < 0.5%
  • Warm Up Time: < 5 min.
  • Beam Height from Base Plate: 19 mm
  • Power Consumption: < 30 Watts
  • Shock Tolerance (6ms): 7g laterally,15g vertically
  • IP Rating: IP65
  • Operating Temperature Range: 10 ~ 35 ℃
  • Max. Heat Dissipation of Head: 4 Watts @25℃
  • Expected Lifetime: 10,000 hours
  • Warranty: 1 Year Parts and Labor

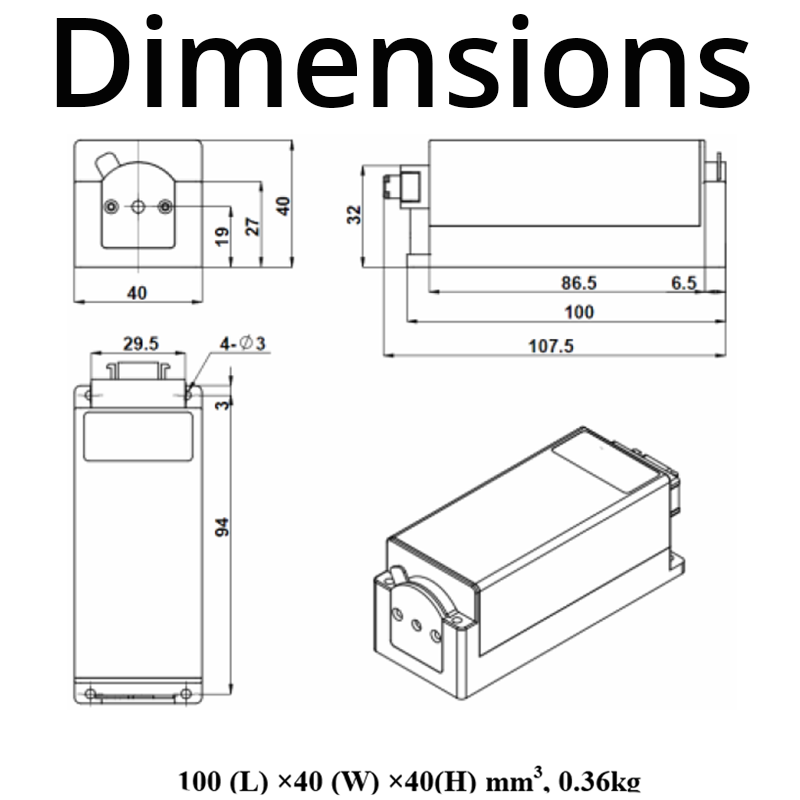

Dimensions (laser head)
  • 100mm (L) x 40mm (W) x 40mm (H)
  • 0.36 kg
General

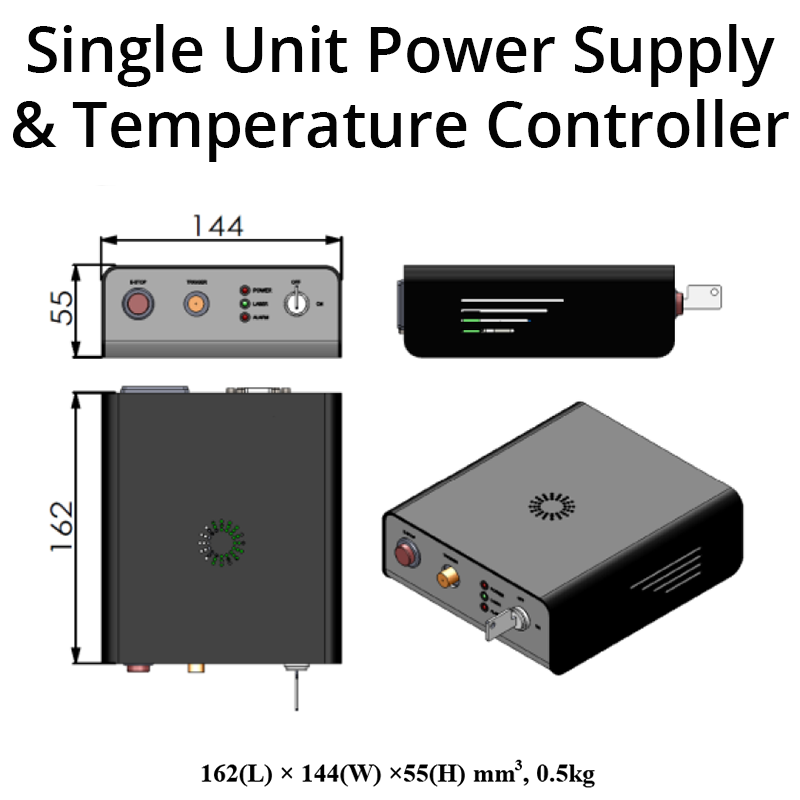

  • Included Power Supply (90-264 VAC): PSU-A-FP
  • Includes Connecting Cable: Power Supply to Laser Head

Product Overview:

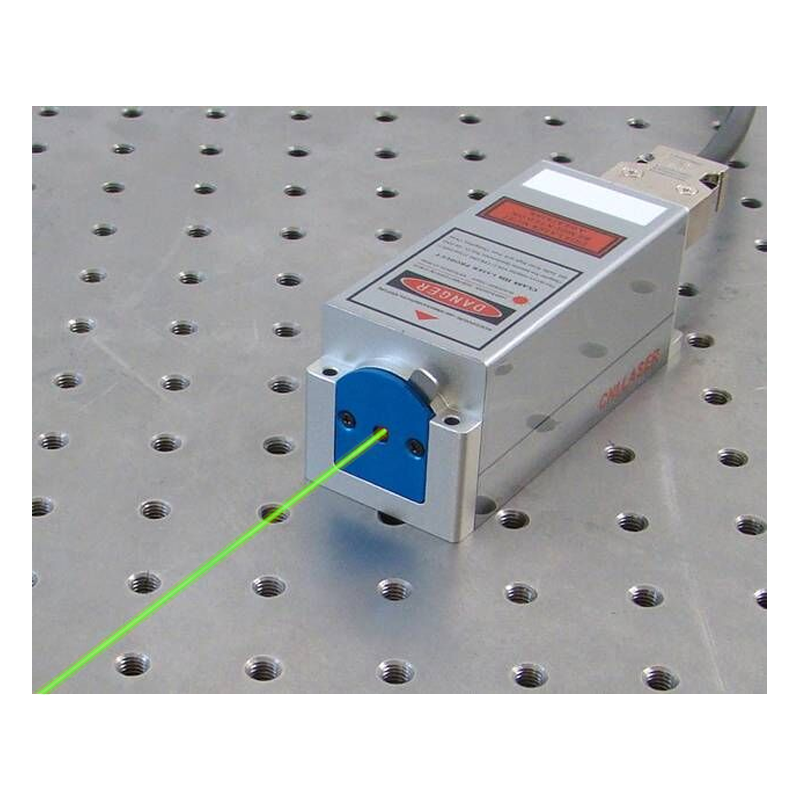

These 532nm lasers are single mode sources with an output power of more than 50mW. They offer a very narrow linewidth and excellent beam characteristics. These single mode green laser modules offer M^2 factor of less than 1.2 and a transverse spatial mode of TEM00. These modules are plug and play come with a simple to operate power supply controller. Modulation is not available. Other modes offer modulation capabilities, please request information. These modules are used for DNA sequencing, flow cytometry and spectral analysis applications requiring a single mode laser with a small beam spot size. These modules are manufactured by CNI Lasers, and sold & supported through Laser Lab Source.
