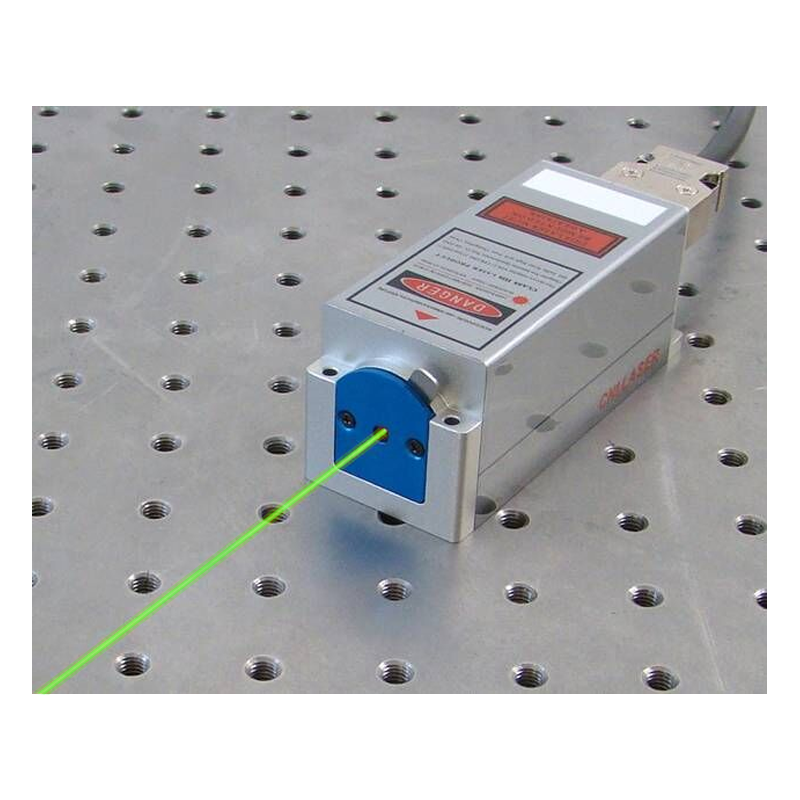

532nm Scientific Series DPSS Laser Module; 50mW, Includes Power Supply Controller

Request Quote   Ships: 2 weeks | Model RLS-MGLS-532

Key Features
  • 532nm (±1nm), > 50mW
  • High Stability
  • M^2 Factor: <1.2
  • Compact Footprint: 100mm x 40mm x 40mm
  • Transverse Spatial Mode: TEM00
  • Includes Power Supply Controller

Customers Also Considered:

PRICE Request Price
  • Central Wavelength: 532 nm (±1 nm)
  • Operating Mode: CW
  • Output Power: > 50 mW
  • Power Stability (rms, over 4 hours): < 5%
  • Transverse Spatial Mode: TEM00
  • M^2 Factor: < 1.2
  • Beam Diameter at Aperture: 0.32 ±15% ( 1/e2 , mm)
  • Beam Divergence, Full Angle: < 3 mrad
  • Polarization Ratio: > 100:1,Vertical
  • Pointing Stability Over Temp. < 6 µrad/°C
  • Noise of Amplitude (rms, 20Hz~20MHz): < 5%
  • Warm Up Time: < 5 min.
  • Beam Height from Base Plate: 19 mm
  • Power Consumption: < 40 Watts
  • Shock Tolerance (6ms): 7g laterally,15g vertically
  • IP Rating: IP65
  • Operating Temperature Range: 10 ~ 35 ℃
  • Max. Heat Dissipation of Head: 4 Watts @25℃
  • Modulation: TTL On/Off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz;
  • Analog Modulation: Optional
  • Expected Lifetime: 10,000 hours
  • Warranty: 1 Year Parts and Labor

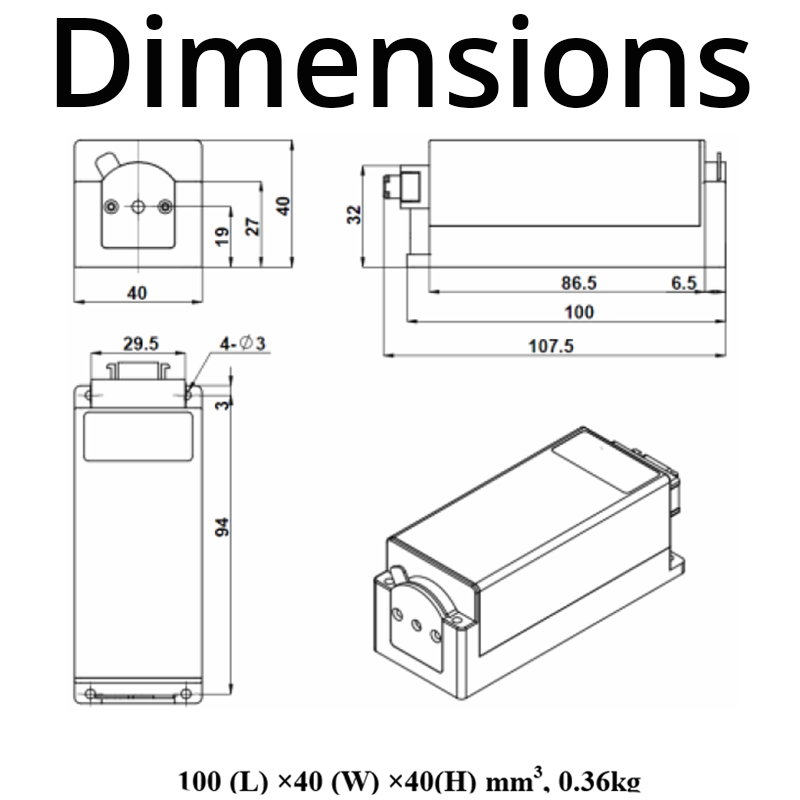

Dimensions (laser head)
  • 100mm (L) x 40mm (W) x 40mm (H)
  • 0.36 kg

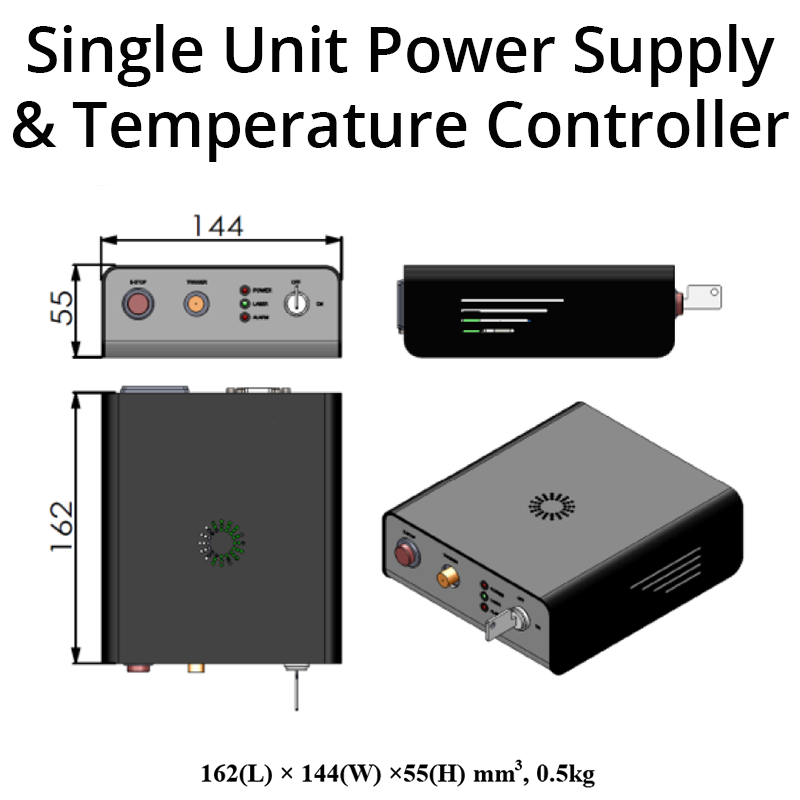

  • Included Power Supply (90-264 VAC): PSU-A-FP
  • Includes Connecting Cable: Power Supply to Laser Head

Product Overview:

These all solid state laser modules at 532nm deliver output power of greater than 50mW and are designed for highly stable long term CW mode of operation. They are designed in a small footprint head for integration into applications or products requiring a very compact form factor. They deliver high optical power stability, M^2 factor of less than 1.2, and a transverse spatial mode of TEM00. These 532nm DPSS laser modules are plug and play. They come with standard with a simple to operate power supply controller. The source laser and optics are mounted into a thermally stabilized housing. These modules are used extensively in DNA sequencing, flow cytometry and spectral analysis applications requiring a high stability green laser with a small beam spot size. These modules are manufactured by CNI Lasers, and sold & supported through Laser Lab Source.
