High Beam Quality 532nm Laser, 200mW
M² Beam Quality ~ 1.1, Scientific Series Lambda-Beam DPSS Laser Module

  • 532nm-green-laser-200mw-rgb-dpss
  • Laboratory 532nm Laser for Science
  • 532nm-laser-top-image-with-stability
  • 532nm-laser-200mw-key-features
  • 532nm-laser-control-software-screen
  • powerbox-power-supply-module

$6495.00   Ships: Request a Quote for Current Ship Date | Model DLA493173 / 532NM-LASER-MODULE

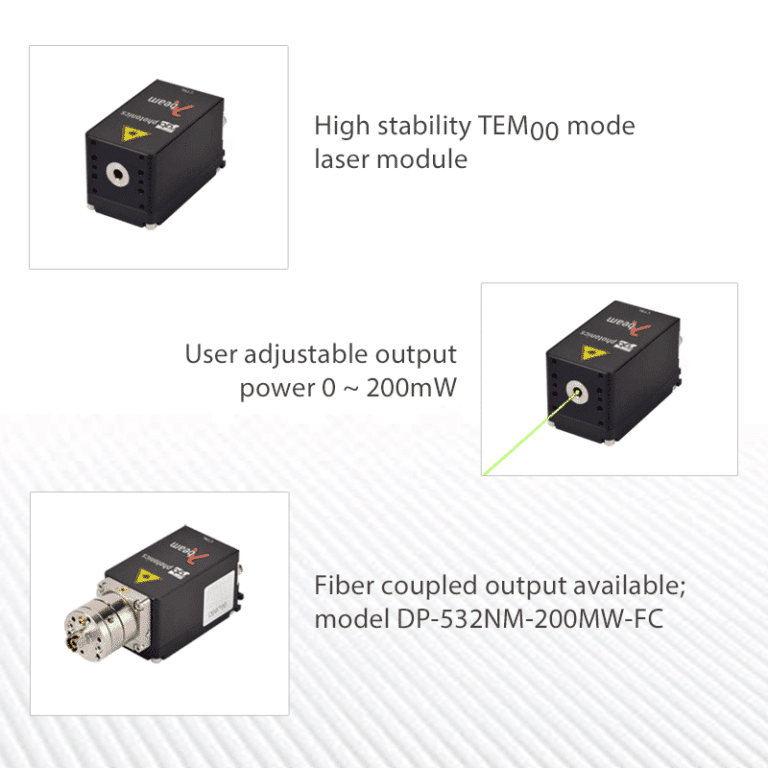

Key Features
  • Gaussian intensity profile: TEM00
  • Narrow spectral linewidth < 0.2 nm
  • M² Beam Quality ~ 1
  • User adjustable output power 0 ~ 200mW
  • Includes power supply + USB interface with control software GUI
  • Optional Fiber Coupled Output (Request Pricing)
  • -------------------------------------------------------------------
  • Technical Support & Sales in USA by LaserDiodeSource.com, part of the Laser Lab Source Group
Shipping & Warranty Information

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Add to Cart or Buy Now

Customers Also Considered:

MODEL DLA493173 / 532NM-LASER-MODULE
PRICE $6495.00
Laser Output Specifications

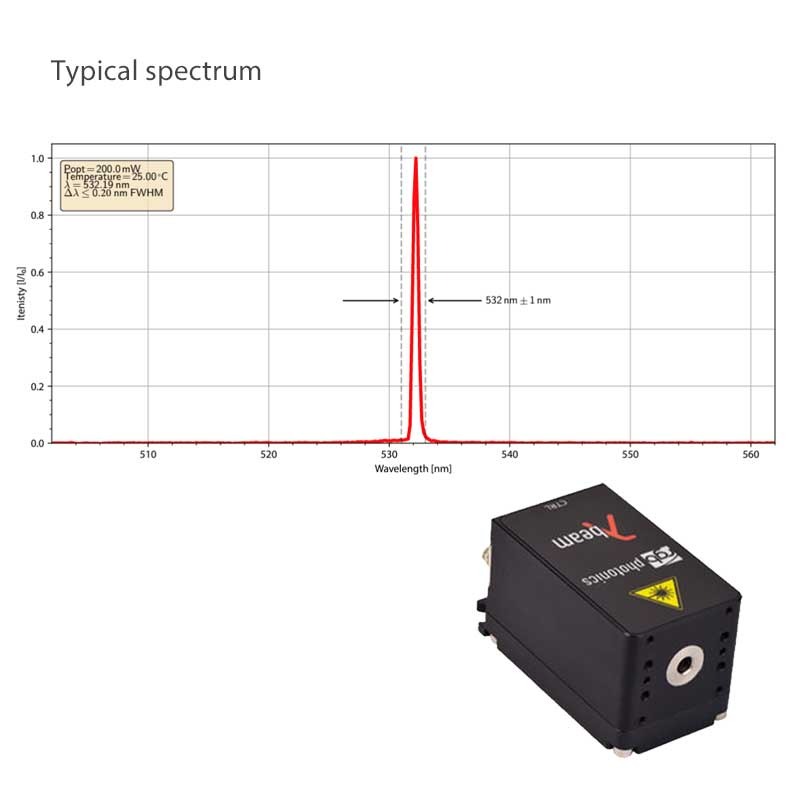

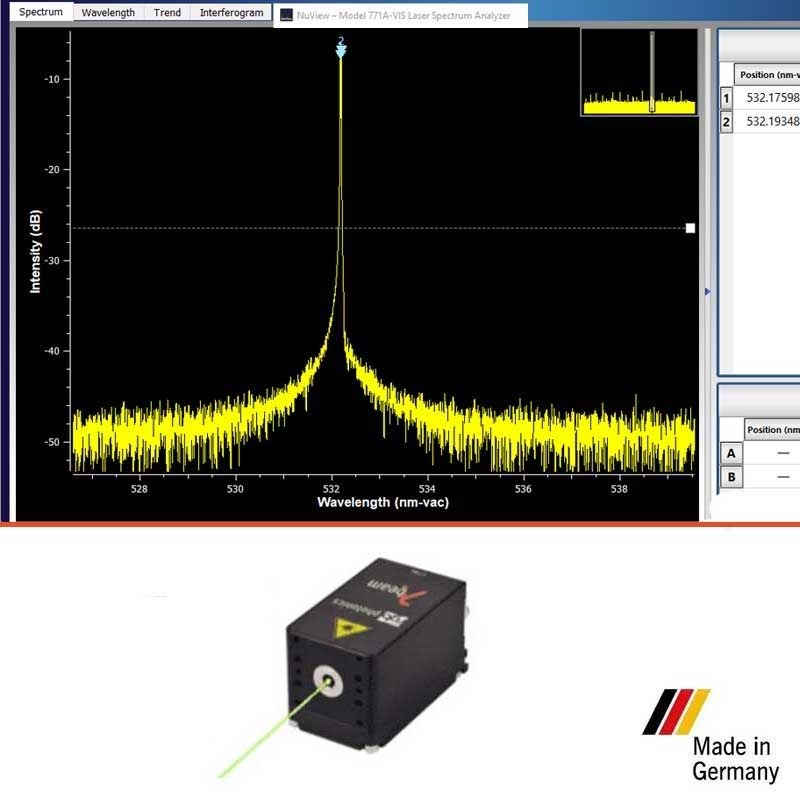

  • Center Wavelength: 532 nm (± 1 nm)
  • Spectral Linewidth: < 0.2 nm
  • User Adjustable Output Power: 0 - 200 mW
  • Gaussian intensity profile: TEM00
  • Linear Polarization: > 10:1
  • Beam Alignment: < 5 mrad and < 0.1 mm (compared to base mount)
  • Pointing Stability: < 5 μrad/K
  • Noise: ± 1 % (RMS)

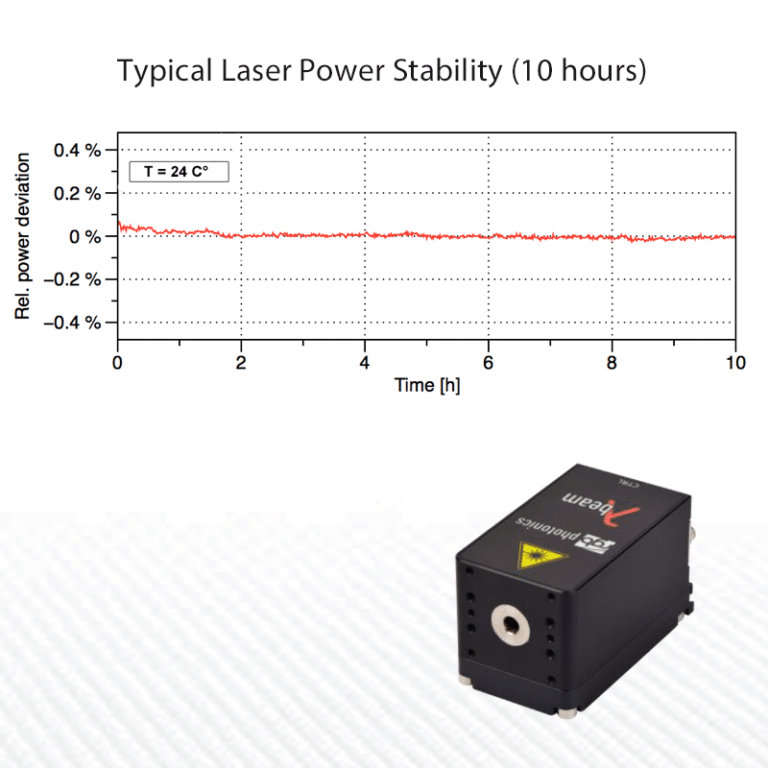

  • Power Stability: ± 2 % (8 hours)
  • Beam Divergence: < 1.2 mrad

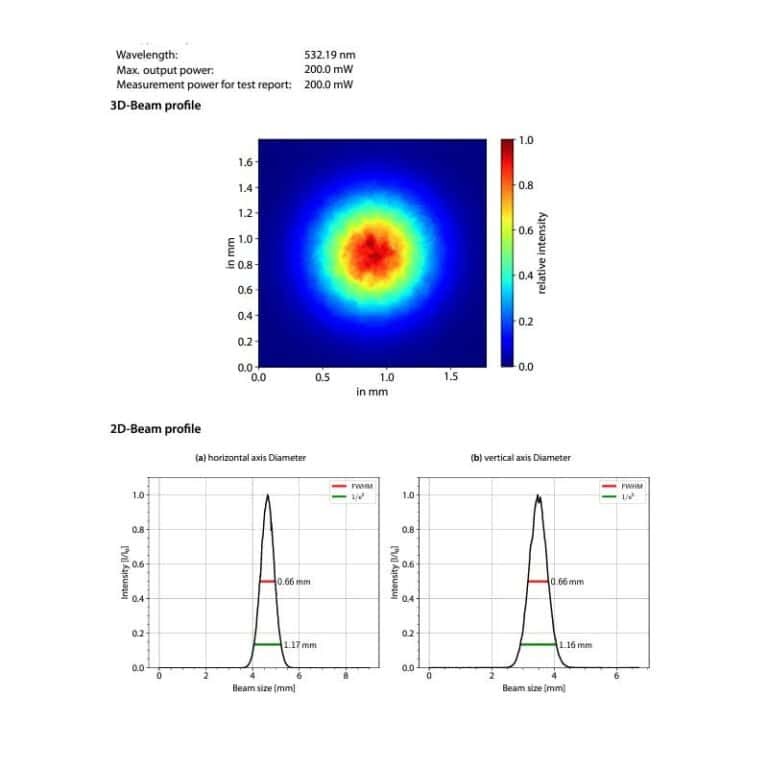

  • Beam Diameter: Round Beam, 1.2 mm
  • M² Beam Quality ~ 1
USER INTERFACE
  • Control Interface: USB

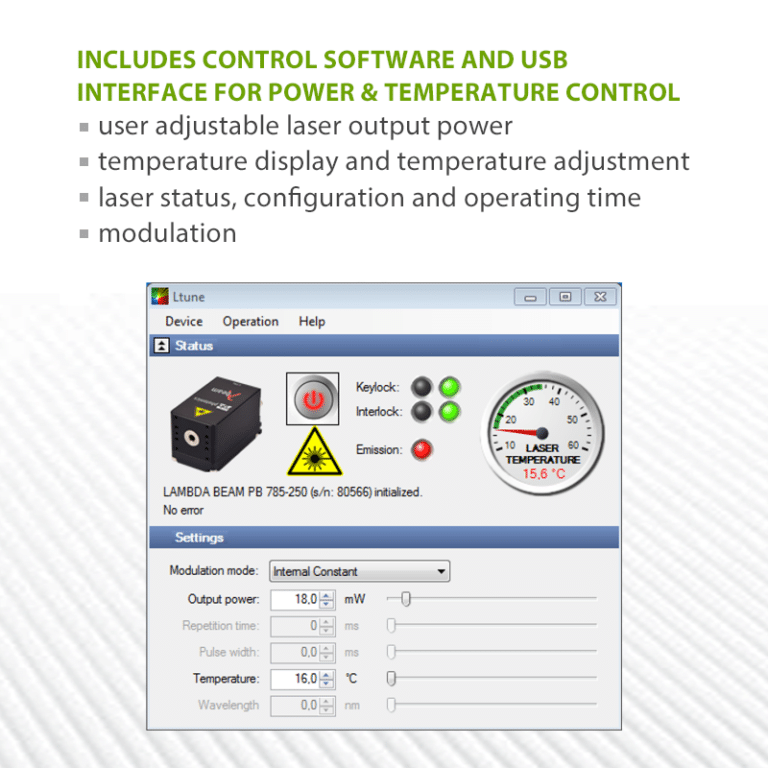

  • Control Software: L-Tune Software Included
  • Control Software Interface: GUI Virtual Front Panel
  • Also Included: LabView Integration, Python Integration
OPTIONS
  • Fiber Coupled Output (Request Model Number & Price)
  • Fiber Coupled Output Max Power: 70 mW Ex-Fiber
  • Opto-mechanical shutter
  • Beam diameter correction
  • Polarization > 10,000 : 1
GENERAL SPECIFICATIONS
  • Dimensions: 63.5 × 31.0 × 32.5 mm (laser head)
  • With PowerBox Control Unit Dimensions: 98.6 x 31.0 × 32.5 mm
  • Weight 94 g (laser head)
  • Weight 163 g (w/PowerBox)
  • Operating Temperature: 0 °C to 45 °C (non-condensing)
  • Storage Temperature: -25 °C to 70 °C
  • CDRH Classification 3b

Product Overview:

Precision-Engineered 532nm DPSS Laser Module for Scientific R&D Applications

The Lambda-Beam series 532nm laser module is a research-grade, turn-key solution for R&D testing and system integration applications. These DPSS laser modules are based on a diode laser pumped neodymium-doped crystal (Nd:YAG), which provides high beam quality and high optical efficiency. These lasers produce a highly collimated and coherent beam with a near TEM00 beam quality factor. The embedded control electronics and controller unit are designed to ensure the highest possible beam quality.

Common Applications

These lasers are used fluorescence microscopy, flow cytometry, and Raman spectroscopy applications. They are also in holography and quantum optics experiments.

Laser Controller Unit with USB Interface and Control Software Included

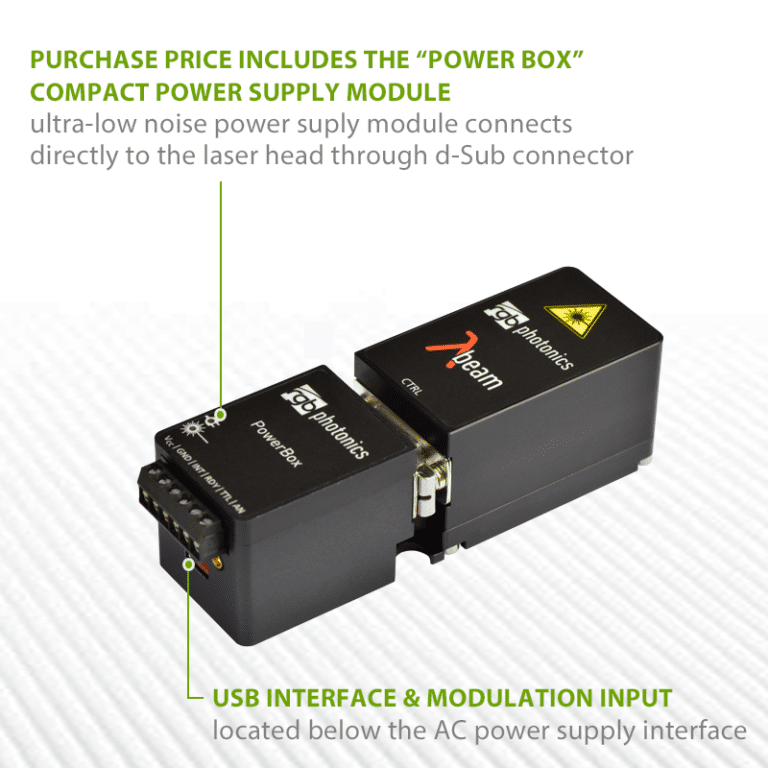

These turn-key modules include a control electronics unit which connects directly into the back of the laser module head through a d-Sub connector. The connecting cable is included. All operating parameters of the integrated laser can be set, monitored and controlled from your PC using the Ltune control software. A simple to use interface virtual front panel allows you to adjust the laser power and all configuration parameters. Alternatively, the laser can easily be controlled from your own application software. LabView drivers and Python library are available. Please request the Operating Manual for a detailed description of the communication protocols.

Optional Accessories

These 532nm laser modules have a wide range of options including a mechanical shutter, fiber-coupled output and collimating optics for the free-space module. A second power supply option is the PowerBox, which is more compact than the PowerController, and designed more for OEM applications. Please request price and part number information for options.
