EDFA; C-Band; 2 Watt Output Power:
- Polarization Maintaining Fiber

  • Polarization-Maintaining EDFA C-Band
  • High Power 1550nm EDFA; C-Band, Output Power 2 Watts

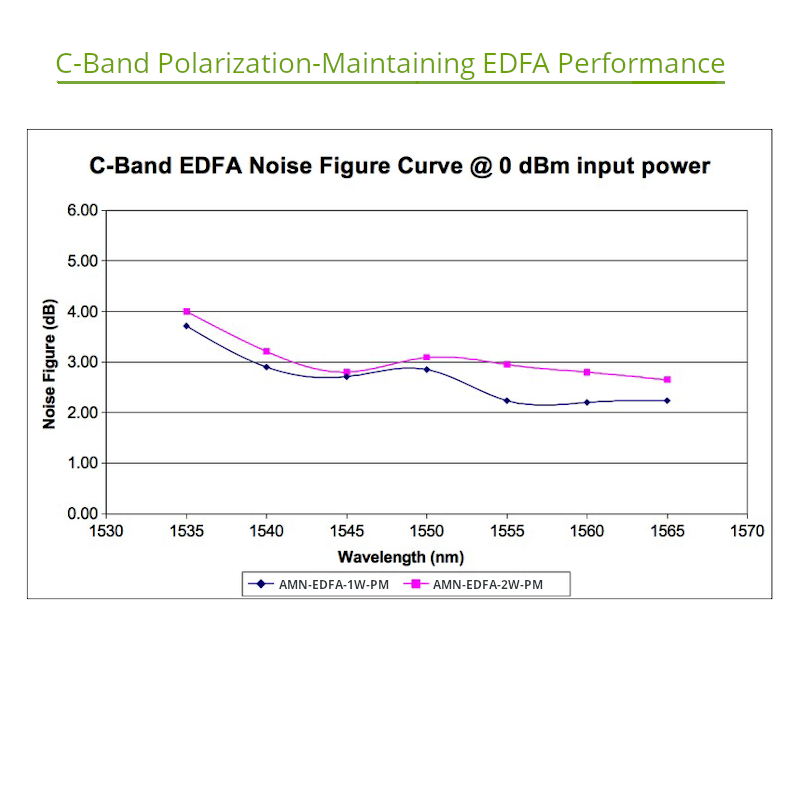

  • 2 Watt C-Band EDFA Noise

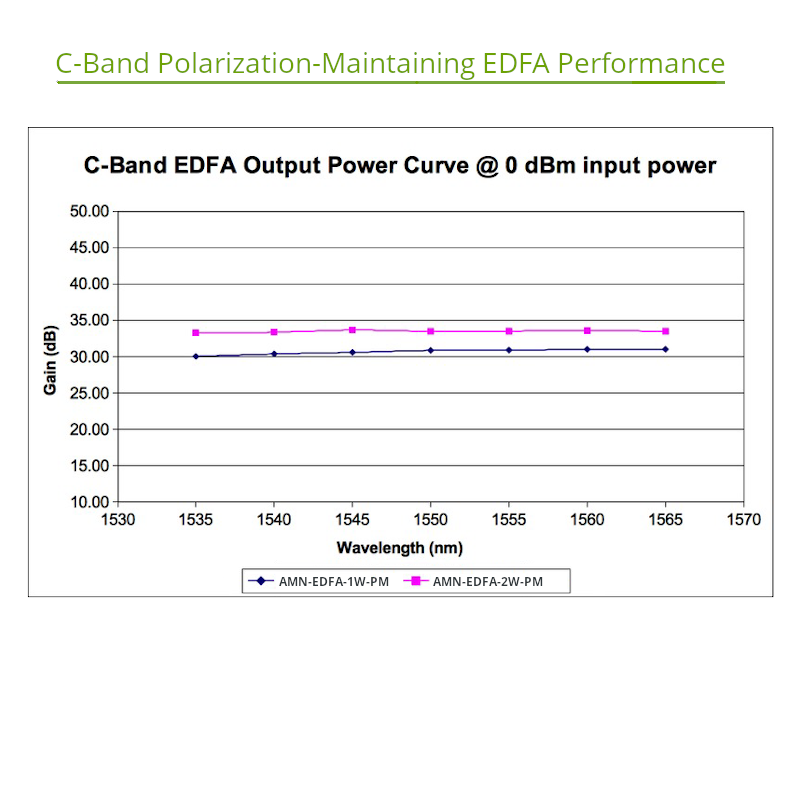

  • 2 Watt EDFA Output Power, C-Band

Request Quote   Ships: Request Current Lead-Time | Model AMN-EDFA-2W-PM

Key Features
  • Polarization-Maintaining Amplifier
  • Output Power User Adjustable; Variable Current Level to Internal 976nm Pump Laser Diodes
  • Includes Pump Shut-Down Safety Features WIth Loss of Input Power Detection
  • High Gain, Low Noise, High Polarization Extinction Ratio
  • Manufactured by Amonics for Laser Lab Source
  • Sold & Supported in North America by:
    Laser Lab Source

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AMN-EDFA-2W-PM
PRICE Request Price
Optical Specifications
  • Output Power Range: Adjustable up to 2 W (+33 dBm)
  • Operational Gain Wavelength Range: 1540nm - 1565nm
  • Acceptable Input Laser Source Power Range: -6 dBm to +3 dBm
  • Input Isolation: > 30 dB
  • Output Isolation: > 30 dB
  • Noise Figure: 6.5 dB (at 0 dBm Input)
  • Standard User Control Mode 1: ACC (user adjustable pump current levels)
  • Optional User Control Mode 2: APC (optical output power feedback; optional)
  • Polarization Extinction Ratio: > 20 dB, 23 dB typical
  • Power Adjustment Step Size: 0.01 dBm
  • Gain Medium: Erbium Doped Fiber
  • Output Fiber: PM 1550nm Panda Fiber
  • Loss of Input Signal Shut-Down Protection Circuit
  • TEC / Temperature Control Limit Pump Laser Overheat Warning Protection
  • Rear Panel Safety Interlock Protection
  • Acceptable Input Laser Source Power Range: -6 dBm to +3 dBm
USER INTERFACE (all models)

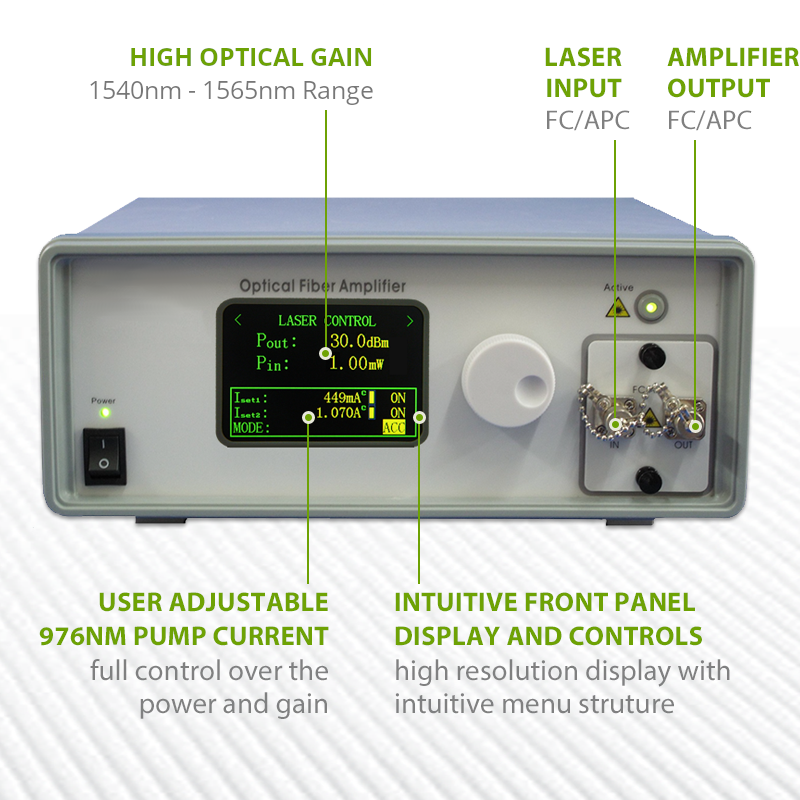

  • Alphanumeric Color Front Panel Interface w/ Adjust Knob
  • Remote: RS232, LabView Control Software Included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connectors IN/OUT: FC/APC
  • Optical Fiber Options: PM fiber, (SMF-28 optional)
GENERAL SPECIFICATIONS (all models)
  • Operation Temperature: 0 to 40 ℃
  • Required Shore Power: 90-240 (VAC), 47-63 Hz
  • Dimensions: 260mm x 330mm x 120mm
  • Power Monitoring: Output Power (Input Power Optional)
  • Remote Control RS2323 Port: DB-9 female
  • TCPIP/Ethernet optional
  • Protection: Pump Lasers (TEC) Over-Temperature
  • Protection: Pump Lasers Current Limit
  • Optical Fiber: PMF Panda 1550nm PM Fiber
  • Connectors: APC (Others Available on Request)

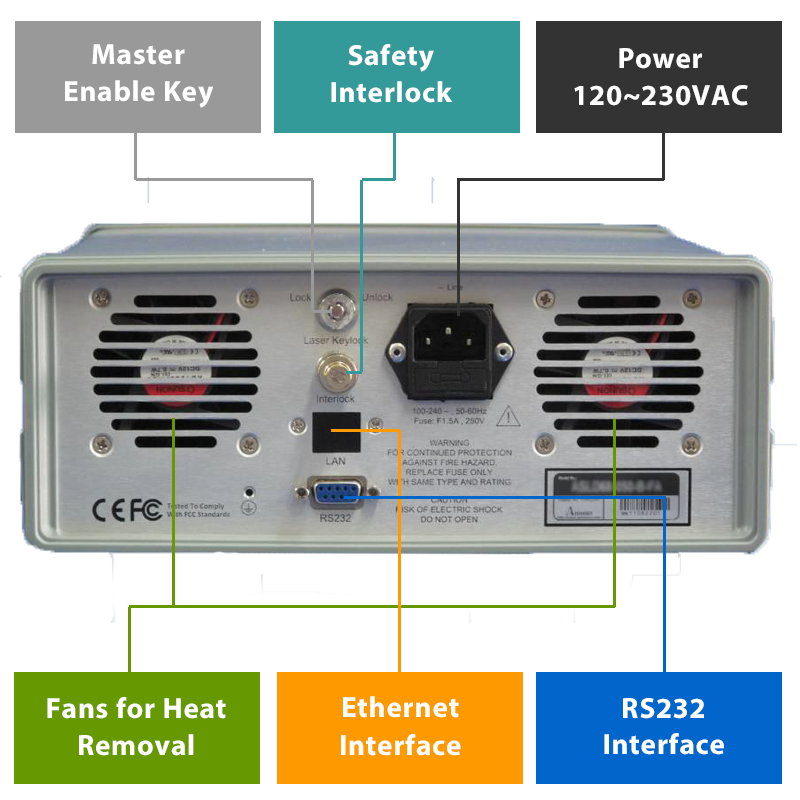

  • Safety Control 1: Key-Lock Switch
  • Safety Control 2: BNC Interlock
  • Safety Control 3 (10 Watt): e-Stop
  • Safety Control 4: Loss of Input Power Detection and Pump Shut Down
APPLICATIONS FOR HIGH POWER EDFA'S
  • Laboratory R&D
  • SONET/SDH System
  • Optical Communications
  • Fiber Optic Sensing
  • CATV and Telecommunications R&D
High Power Polarization-Maintaining EDFA Models
Inquire For Detailed Specifications
  • AMN-EDFA-1W-PM, 1W Output Benchtop
  • AMN-EDFA-2W-PM, 2W Output Benchtop

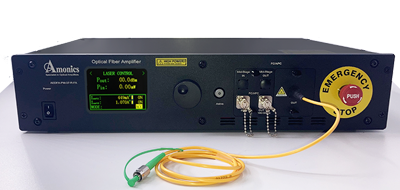

  • AMN-EDFA-5W-PM, 5W Output Rack-Mount
  • AMN-EDFA-10W-PM, 10W Output Rack-Mount

Product Overview:

High Power EDFA Overview:

These 1550nm-range high power EDFA instruments are erbium-doped fiber amplifiers delivering up to 2 Watts of output power. They are affordable and easy to operate benchtop instruments for laboratory research or manufacturing test applications. These amplifiers allow full control over the power and gain through control of the internal 976nm pump laser diode drive current levels (ACC mode), or by setting the instrument into a gain feedback or power feedback mode (APC). The standard product comes allows ACC mode, and APC mode can be ordered as an option. APC mode allows the user to set a target output power and the instrument will automatically adjust the current level to the pump lasers.

Flexible User Interface Options:

The EDFA settings are adjusted through an easy-to-use front panel with an intuitive menu and control knob. The instrument can also be controlled via remote interface. These units come with RS232 in the standard product offering, and an ethernet interface can be ordered as an option. LabVIEW based control software is available and ships free of charge. Contact us if you would like to view the Operating Manual or see the remote interface command set.

Extensive Integrated Amplifier Protection Features:

These EDFA's include an extensive array of protection features, designed to protect the amplifier from accidental user-induced damage and to protect the user from harm by accidental exposure to high power laser light. They offer an input laser power detection circuit which automatically shuts down the current to the internal 976nm laser diode pumps if the input signal is lost. They also offer current and voltage limits for the pump lasers, as well as (TEC) over-temperature shut-down. Both of these functions protect the internal pump sources. The chassis is equipped with a BNC interlock to allow the user to set conditional shut-down conditions for the amplifier or regulate emergency shut-down externally.

EDFA Utilizes Telcordia Qualified High Reliability Components:

These EDFA's utilize high reliability Telcordia qualified 976nm pump lasers as well as Telcorida qualified combiners. The principal of operation is the laser light from the pump wavelengths and power level excite the erbium ions embedded in the fiber from their ground state to achieve the resultant high excitation levels, and the commensurate high gain levels of up to 33 dB. Because they are polarization maintaining amplifiers, they amplify the light polarized along the slow axis of the fiber. The amplifier includes integrated isolators for the input and the output. Careful attention to component selection and circuit board design allow these 1550nm range EDFA's to produce high gain at a low noise level. Noise levels of < 6.5 dB with a very flat gain profile over the C-Band make these instruments ideal for many applications.
