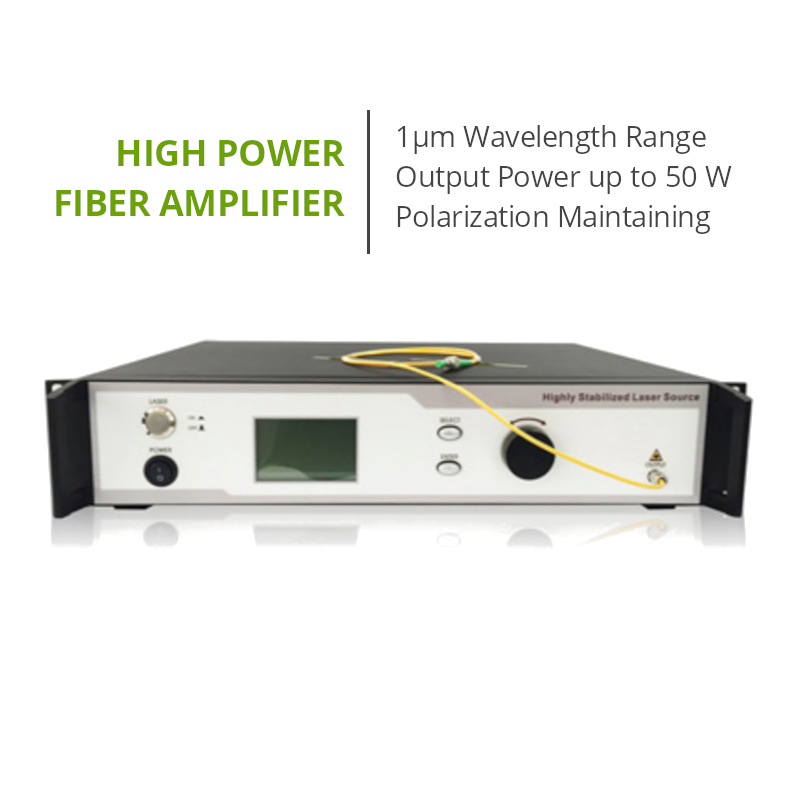

1µm Single-Frequency, Polarization-Maintaining Fiber Amplifier; Up to 50 Watts Output Power

  • 1um PM fiber amplifier Techwin
  • 1um fiber amplifier narrow line width

Request Quote   Ships: Request Quote for Price and Lead Time | Model RLS / CKAP-Yb-10xx-B-PW-SF:PM

Key Features
  • Available Wavelength Range: 1030nm - 1083nm
  • Polarization-Maintaining Architecture, High PER
  • Available up to 50 Watts Output
  • User Adjustable Output Power

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL RLS / CKAP-Yb-10xx-B-PW-SF:PM
PRICE Request Price
Optical Specifications
  • Operating Wavelengths: 1030 nm - 1083 nm (1)
  • Input Power: Up to 200 mW (2)
  • Output Power: 0.5 W - 50 W (3)

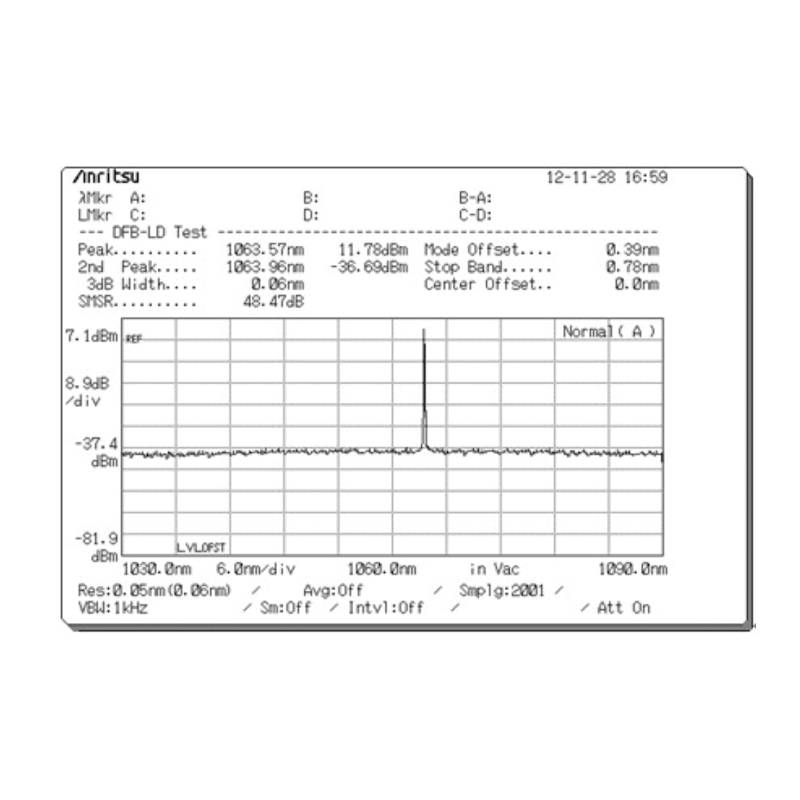

  • Spectral Width @ -3 dB (FWHM, max): 0.06 nm (typ)
  • SMSR: > 45 db (typ)
  • Output Power Adjustment Range: 2% - 100%
  • Output Power Stability: ± 1% (typ), ± 2% (max) (4)
  • Input Isolation: 30 dB
  • Output Isolation: 30 dB
  • Polarization Extinction Ratio: 15 dB (min), 20 dB (typ)
  • Beam Quality, M2: < 1.2
  • ------ Specifications Notes -----
  • (1) Typical operating wavelength:1030nm, 1053nm, 1064nm, 1083nm
  • (2) The input power is related to the output power
  • (3) Typical Output power: 27 dBm, 30 dBm, 33 dBm, 40 dBm
  • (4) The output power stability is measured under 25°C, 30 minutes after warm-up
Optical Characteristics
  • Input Fiber Type: PM980
  • Output Fiber Type: PM980 (or other)
  • Output Fiber Length: > 1 m
  • Optical Connectors: FC/APC
  • Safety Control: Key-Lock, BNC Interlock
INTERFACE
  • Power Supply: 170 - 260 VAC
  • Power Consumption: < 150 W
  • Operating Temperature: 0ºC – 30ºC
  • Storage Temperature: -40ºC – 85ºC
  • Dimensions: 420mm × 485mm × 105mm
  • Chassis Cooling: Air Cooled

Product Overview:

Fiber Amplifier Overview

These high power Ytterbium-doped single-frequency fiber lasers are designed to amplify single-frequency optical signals in the 1µm range, including 1030nm, 1053nm, 1064nm, and 1083nm. Output power is dependent on input power; this series is available with maximum output power from 0.5 Watts to 50 Watts depending on the input power. Contact us to discuss the system configuration that best suits your application.

On all models the output power is user-adjustable within the design range. The fiber amplifier is easily controlled from the front panel, using the LCD display and power adjust knob.

On all models the output power is user-adjustable within the design range. The fiber amplifier is easily controlled from the front panel, using the LCD display and power adjust knob.

Double-Clad Fiber, Polarization-Maintaining Technology

Utilizing extensive experience with double-clad fiber technology, these high power fiber lasers feature polarization-maintaining optical structures throughout, thereby achieving high efficiency and suppressing nonlinear fiber effects. Careful thermal design, and high-speed protection circuits ensure long operating lifetime and the safety of the entire system.

Custom Configuration

These fiber amplifiers are custom configured at the factory to suit. your application requirements. Contact us to discuss your application and the available options for this fiber amplifier.
