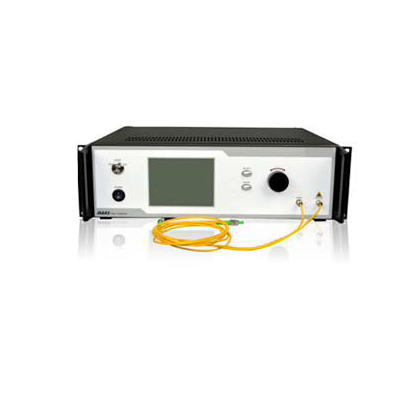

1550nm Fiber Laser, Single Mode, 10 Watts

  • 1550nm Fiber Laser, 10W Power

Request Quote   Ships: Request Quote for Price and Lead Time | Model RLS/CKLS-1550B

Key Features
  • 1550nm Fiber Laser with Up to 10 Watts of CW Output Power
  • Excellent Beam Quality and High Stability
  • Single Mode Beam Profile, PM Optional

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL RLS/CKLS-1550B
PRICE Request Price
General Specifications
  • Center Wavelength: 1550 nm
  • Output Power Options: 0.5W, 1W, 2W, 5W, 10W
  • Output Power Adjustment Range: 10% - 100%
  • Spectral Width: 0.1 MHz
  • SMSR: 35 dB (min)
  • Output Connector: FC/APC
  • Refer to Datasheet for Additional Specifications

Product Overview:

The model CKLS-1550-B single mode CW fiber laser from Techwin is a 1550nm, Yb-doped fiber laser system which combines an excellent beam profile with high CW output power capability. These fiber lasers are based on an all-fiber design structure and utilize double cladding fiber pumping technology. The output power is user adjustable up to 10 watts. The diffraction limited beam profile is achieved even at the maximum CW power level. These lasers are widely used in research and development applications as well as component testing.

The model CKLS-1550-B CW fiber laser employs a microprocessor based control system which is designed to precisely control the pump laser stage and other components to deliver high stability, a long lifetime and maintenance free operation. The simple to operate front panel LCD offers the user real-time control of the CKLS-1064 . The user has immediate access to all of the control parameters, including the operating state of the laser, the output power, the temperature and any alarm or warning conditions.
