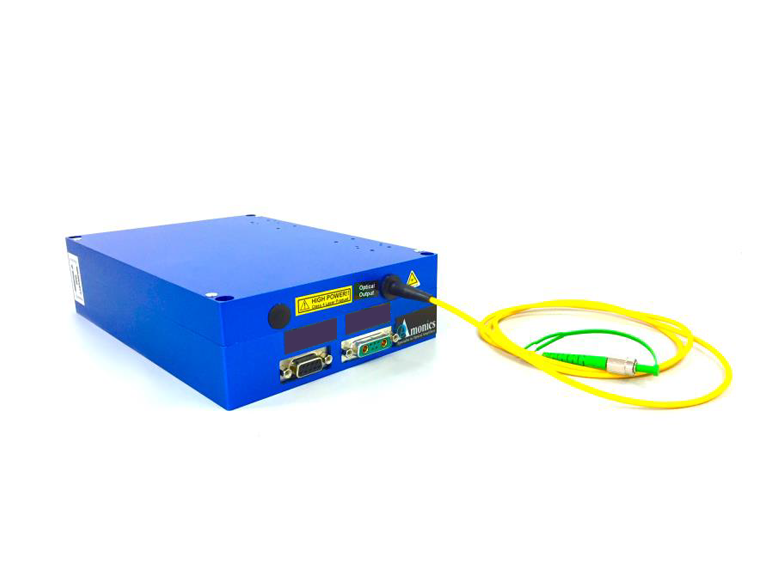

Narrow Line Width 1550nm Fiber Laser; 2 Watts Output Power; 15 kHz Narrow Line Width

  • 1550nm Fiber Laser Output Spectrum

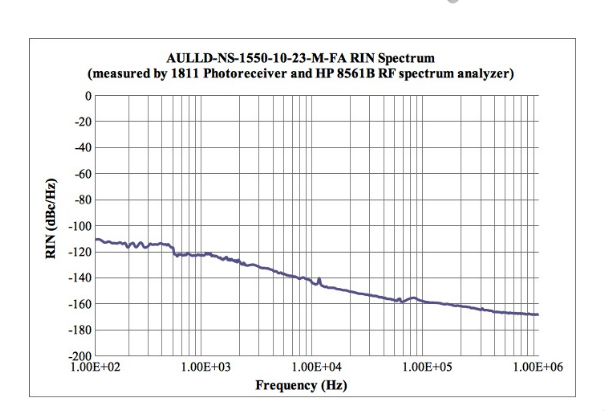

  • 1550nm Fiber Laser Output Noise Graph

Request Quote   Ships: Inquire | Model AULLD-SM-1550-15-33-M-FA

Key Features
  • High Power, Turn-Key Benchtop Fiber Laser Source
  • User Control of Internal Pump Laser Diodes (ACC Mode) or Optical Power (APC Mode)

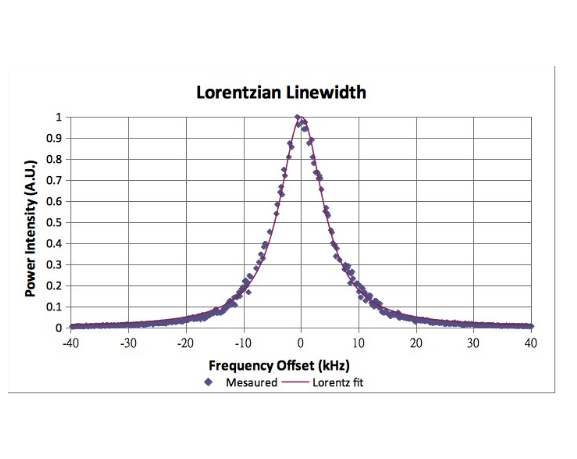

  • < 15 kHz Narrow Linewidth, Lorentzian Profile
  • Integrated Redfern Integrated Optics (RIO) PLANEX High Performance External Cavity Laser
  • Manufactured by Amonics for Laser Lab Source
  • Sold & Supported in North America by:
    Laser Lab Source
Shipping & Warranty Information

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AULLD-SM-1550-15-33-M-FA
PRICE Request Price
FIBER LASER specifications (CW Full Power)
  • Center Wavelength: 1550 nm (± 1.0 nm)
  • Minimum Nominal Output Power: +33 dBm (2W)
  • Linewidth, FWHM, Lorentzian: < 15 kHz
  • Optical Isolation: > 30 dB
  • Side Mode Suppression Ratio: > 35 dB (45 dB typical)
  • Output Power Tuning: 10% to 100% Full Scale
  • RIN: < -110 dB/Hz (@100 kHz min.)
  • Output Power Stability (8 hours): Better Than +/- 2%
  • Wavelength Tuning Range: > +/- 0.02 nm
  • Wavelength Stability: +/- 0.005 nm (8 hours)
  • Polarization State: Random
  • Control Modes: APC (optical power control), ACC (current control)
USER INTERFACE
  • User Protection: Safety Interlock, Fast Shut-Down Temperature Limits for Pump Current, Key-Lock Switch
  • RS232, LabView control software included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Single Mode Fiber Output (default)
  • Output Connector: FC/APC (default)
APPLICATIONS
  • LiDAR
  • Fiber optic sensing applications
  • Interferometric and Brillouin DTSS sensing
  • Sensing systems for oil & gas, security, metrology and smart infrastructure
GENERAL
  • Operating Temperature Range: 0 to +40C
  • Storage Temperature: -10 to +70C
  • Power Supply: 90 – 240 VAC, 47 – 63Hz
  • Dimensions: 260mm(W) x 330mm(D) x 120mm(H)
  • Chassis Safety Control: Key-lock switch, BNC
  • Interlock Key

Product Overview:

Fiber Laser for R&D and System Integration

These 1550nm Fiber Lasers are ultra-high stability, high output power narrow line width light sources based on the Redfern Integrated Optics high performance external cavity laser. These turn-key microprocessor controlled benchtop units provide full control over the power as well as wavelength tuning through an easy to use front panel or remote I/O. The user has the ability to tune the output profile by adjusting the internal pump current settings and can tune the center wavelength. These 1550nm fiber lasers are offered with a full two year warranty. They are designed to give researchers flexibility for testing in application areas such as sensing and LiDAR.

Flexible 1550nm Fiber Laser Controls
The fiber laser is controlled via RS232 interface. LabView based control software is included in your shipment. An ethernet interface can be added on request. Also, user safety is accommodated by a key-lock front panel power switch as well as a rear panel safety interlock. Fast control loops for each of the pump lasers ensure that they are shut-down in the event of an over temperature event. The front panel has an FC/APC connector terminating a single mode fiber.
