FIBER LASER; 1550nm Fiber Laser; High Output Power:
- 10 Watts of CW Output Power
- 10 kW Peak Pulse Power

  • nanosecond fiber laser 10W

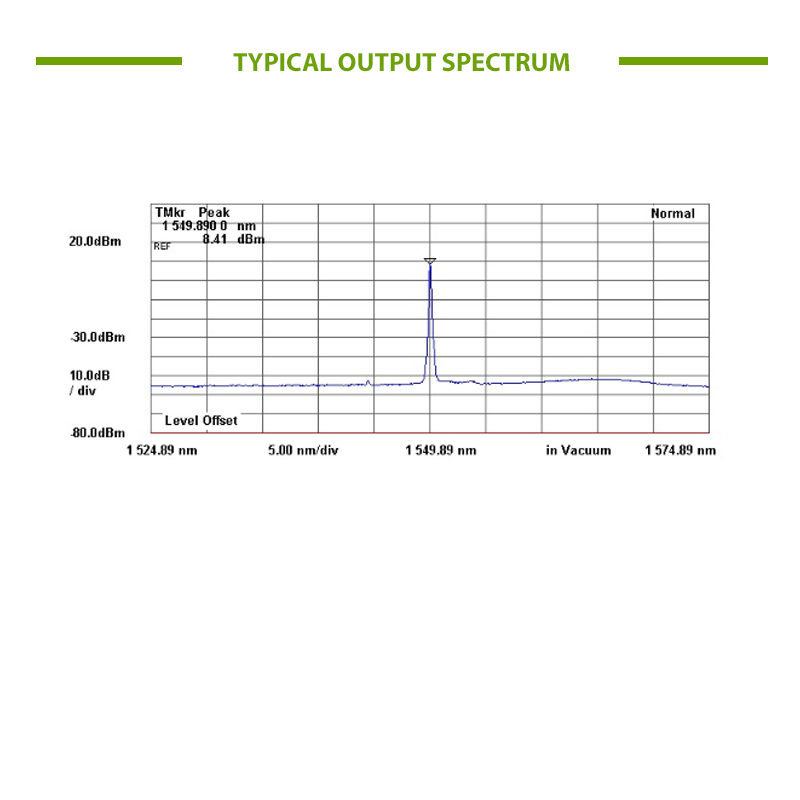

  • 1550nm nanosecond Fiber Laser with 10W Output Spectrum

Request Quote   Ships: 3 Weeks | Model FL-1550NM-10

Key Features
  • Up to 10 kW Peak Pulse Power
  • Pulse Width Range 5 to 10 nanoseconds
  • User Adjustable Repetition Rate 100 kHz to 10 MHz
  • User Control of Internal Laser Diode Pump Sources
Shipping & Warranty Information

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL FL-1550NM-10
PRICE Request Price
Specifications (typ)
  • Wavelength: 1550.00 nm (+/-1 nm)
  • CW Output Power: > 10 Watts (+40 dBm)
  • Peak Pulse Power (typical): 10 kW (@ 10nsec pulse width & 100 kHz rep rate)
  • Pulse Width Range: 5 nsec ~ 10 nsec (requires external RF input generator)
  • Pulse Repetition Rate: 100 to 10 MHz (external RF input generator)
  • Laser Linewidth: < 0.2 nm
  • Polarization: Linear or Random (request)
  • Polarization Dependent Gain (max): 0.5 dB
  • Output Power Tuning Range: 10% - 100% of Full Scale
  • Beam Quality Factor M^2 (typical): 1.4
  • Output Power Stability (1hr): < 2%
  • Input and Output Isolation: > 30 dB
  • Output Power Stability (1hr): < 2%
  • Operational Mode: CW or Pulsed Pulsed Mode
  • Polarization Extinction Ratio (typ): 18 dB
User Interface
  • Front Panel LDC Display
  • Control Modes: ACC, APC (tunable range 90%)
  • Safety Interlock, Pump Laser Over-Temperature Shut Down
  • Front Panel Keylock Switch
  • User Control of Pump Current
  • RS232 Computer I/O and Ethernet; Includes Control Software with GUI
  • Chassis Safety Control: Key-lock switch, BNC and Interlock Key
Environmental and Dimensions
  • Operating Temperature Range: 0 to +40C
  • Storage Temperature: -10 to +70C
  • Power Supply: 90 – 240 VAC, 47 – 63Hz
  • Dimensions 10 Watt Unit: 3U, 19 inch rack width
Included with Shipment (both models)
  • Switch Key
  • RS232 Cable
  • Power Cord
  • Operating Manual
  • Software Download Guide
  • Software Users Guide
  • Factory Test Report
Fixed Fiber Output
  • Output Fiber Type: Single Mode; PM LMA 25/300 GDF; PVC jacketed
  • Output Fiber Pigtail Length: 50 cm
  • Output Fiber Diameter: 3 mm
  • Output Fiber Termination: Collimator or Unterminated (customer specified)

Product Overview:

These 1550nm fiber lasers deliver up to 10 Watts of CW, 10kW peak pulse output power. They are an affordable, fully integrated bench-top laboratory R&D instrument. A full front panel with LCD menu driven display and a remote interface make this unit is highly flexible for many research and testing applications. These turnkey microprocessor controlled bench-top / rack mount units are burn-in tested and are highly reliable with multiple integrated protection features. They can be operated in ACC, automatic current control, or APC, automatic power feedback control modes. They offer a wide variety of customer specified output connection options and high power armored fiber options. These fiber lasers also offer the user full control of the internal pump source current settings for test configuration and flexibility. These Amonics nanosecond fiber lasers offer high pulse energy and excellent pulse energy stability. By using proprietary SBS suppression techniques, these narrow linewidth nanosecond pulse lasers deliver high pulse energy. The primary applications include laser marking, laser welding, material processing and free spacing sensing.
