1080nm Single-Mode CW Fiber Laser System, 1000 Watt Output Power

  • 1080nm 1000W Fiber Laser System by Techwin

Request Quote   Ships: Request Quote for Price and Lead Time | Model RLS / YFL-1000SM

Key Features
  • Central Wavelength: 1080 nm
  • Narrow Spectral Bandwidth
  • Output Power: 1000 Watts

Customers Also Considered:

MODEL RLS / YFL-1000SM
PRICE Request Price
General Specifications
  • Wavelength: 1070 nm – 1090 nm
  • Spectral Line Width: < 5 nm (3 dB typ)
  • Maximum Output Power: 1000 Watts
  • Power Adjustment Range: 10% - 100%
  • Output Power Stability: < 3%
  • Modulation Frequency: up to 20 kHz at 100% Output Power
  • Dimensions: 482.6 mm x 451 mm x 104 mm
  • Refer to Datasheet for Additional Specifications

Product Overview:

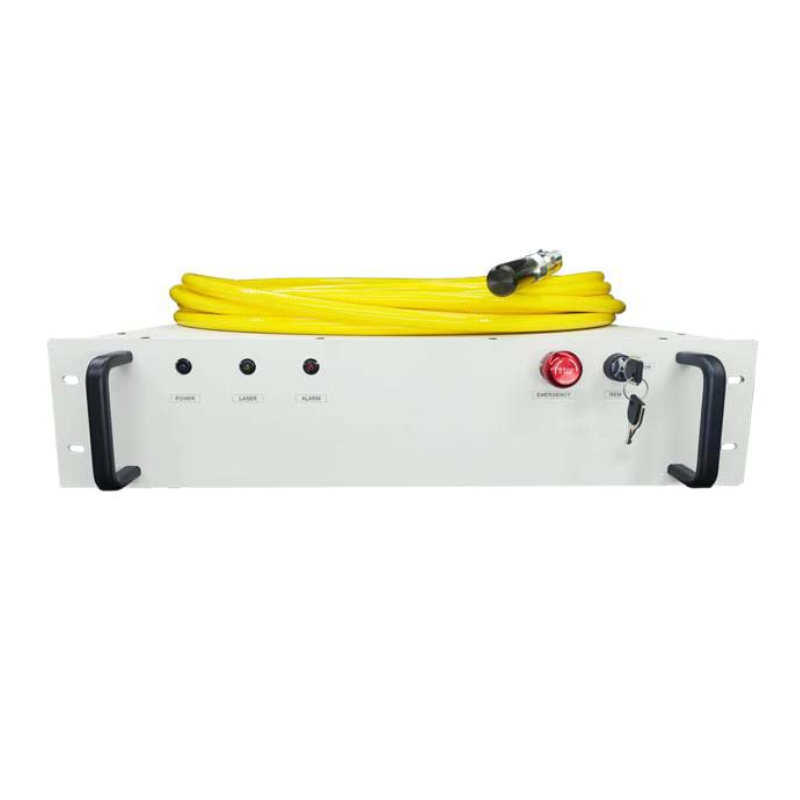

1000 Watt Fiber Laser System

This Ytterbium single-mode CW fiber laser system adopts the latest industry technology and the optimized design with high electro-optical conversion efficiency, high lifetime, high reliability, and safety features. The laser features high output beam quality and back-reflection protection, and can be widely used for all kinds of materials for laser cutting, welding, punching, 3D printing, and other high-end smart manufacturing applications.

Applications for the 1 kW fiber laser:
▶ Laser cutting
▶ Laser welding
▶ Laser cladding
▶ Laser brazing
▶ Laser thermolizing

Techwin delivers high quality, high reliability, and excellent cost performance, and can meet the requirements of custom applications. Techwin provides in-depth after-sales service, is the ideal choice for system integrators and equipment manufacturers.
