Gentec Broadband Thermal Laser Power Sensor Detector 15mm Dia 15 W - Used, Tested

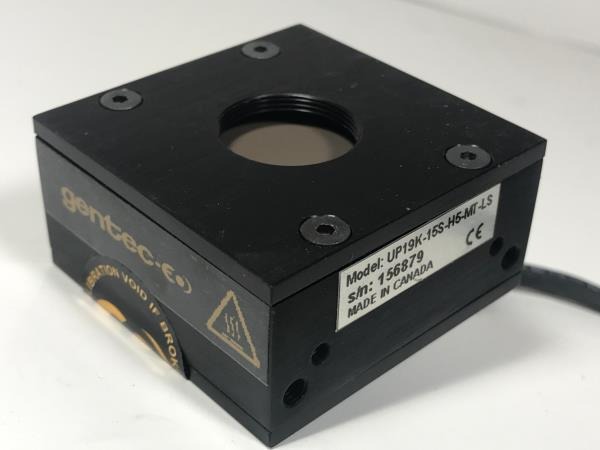

  • Gentec UP19K 15S Thermal Laser Detector Front

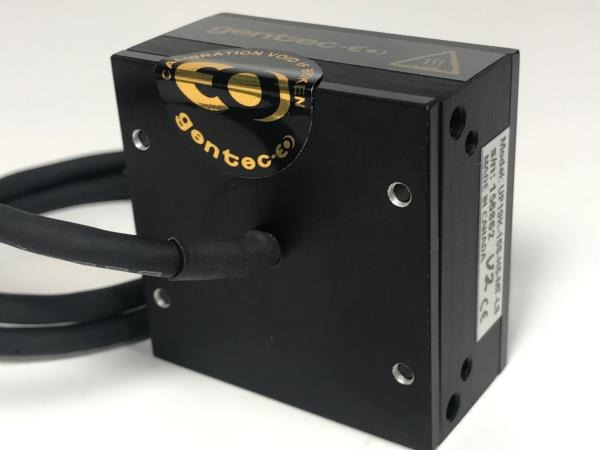

  • Gentec UP19K 15S Thermal Laser Detector Back

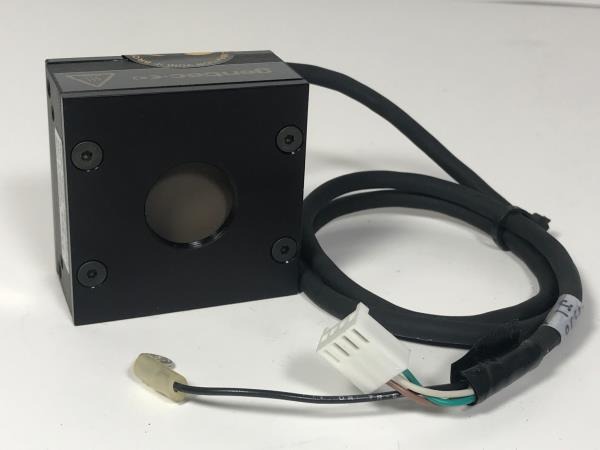

  • Gentec UP19K 15S Thermal Laser Power Detector

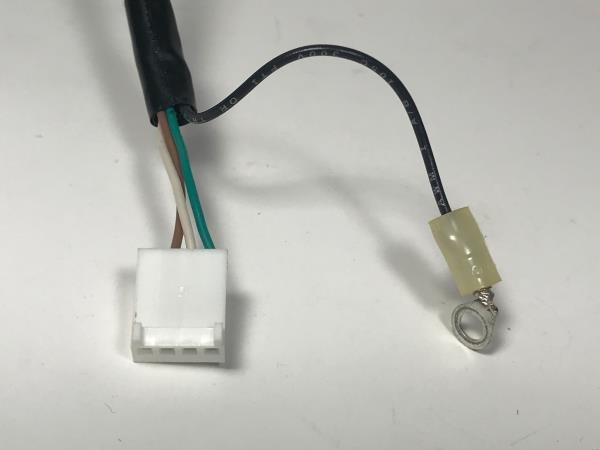

  • Gentec UP19K 15S Thermal Laser Detector Cable Termination

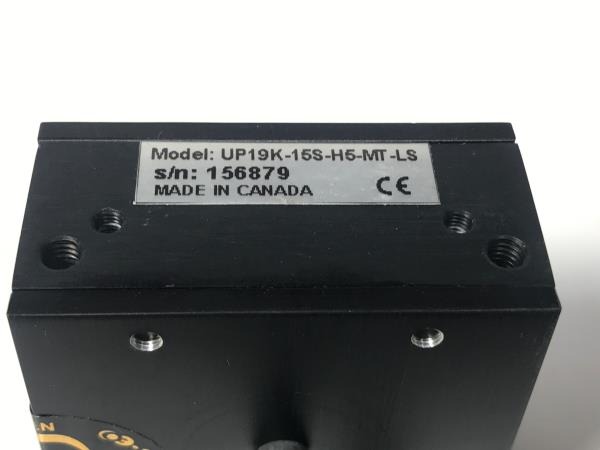

  • Gentec UP19K 15S Thermal Laser Detector Serial Number

Request Quote
sku / item#: UP19K-15S-H5-MT
ships: IN-STOCK

Key Features
  • Maximum Measurable Energy: 15 J
  • Maximum average power (continuous): 15 W
  • Maximum average power (1 minute): 30 W
  • Sensitivity: 400 mV/W
  • Spectral range: 0.19 - 20 μm (190 - 20,000 nm)
  • Offered by: Starlight Photonics, a Laser Lab Source Marketplace Seller // Orders Fulfilled by Laser Lab Source
  • Warranty: Refer to Manufacturer/Seller, Shipping & Warranty Information below
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL UP19K-15S-H5-MT
PRICE Request Price
General SPECIFICATIONS
  • Gentec Model Number: UP19K-15S-H5-MT
  • Maximum Measurable Energy: 15 J
  • Maximum average power (continuous): 15 W
  • Maximum average power (1 minute): 30 W
  • Sensitivity: 400 mV/W
  • Spectral range: 0.19 - 20 μm (190 - 20,000 nm)
  • Physical Aperture: 19mm
  • Dimensions: 50 x 50 x 25mm

Product Overview:

UP19K-155 Thermal Laser Power Sensor Overview:

Nice, clean thermal absorber type laser power sensor made by Gentec. The raw output from a thermal sensor is about 0.4mV/W (400uV/W) which is hard to measure accurately. These modules have a low-noise, 1000X amplifier built in which produces an output of 400 mV/W which is easier to read with a typical voltmeter or microcontroller. These are powered by 12-15V at just a few milliamps.

The pinout is:
White = +12-15V DC
Brown = ground
Green = output
Shield = chassis
