660nm-1700nm, 3nm NIR Spectrometer

Sarspec SPEC NIR 1.7
660nm-1700nm Spectral Range
3nm Resolution

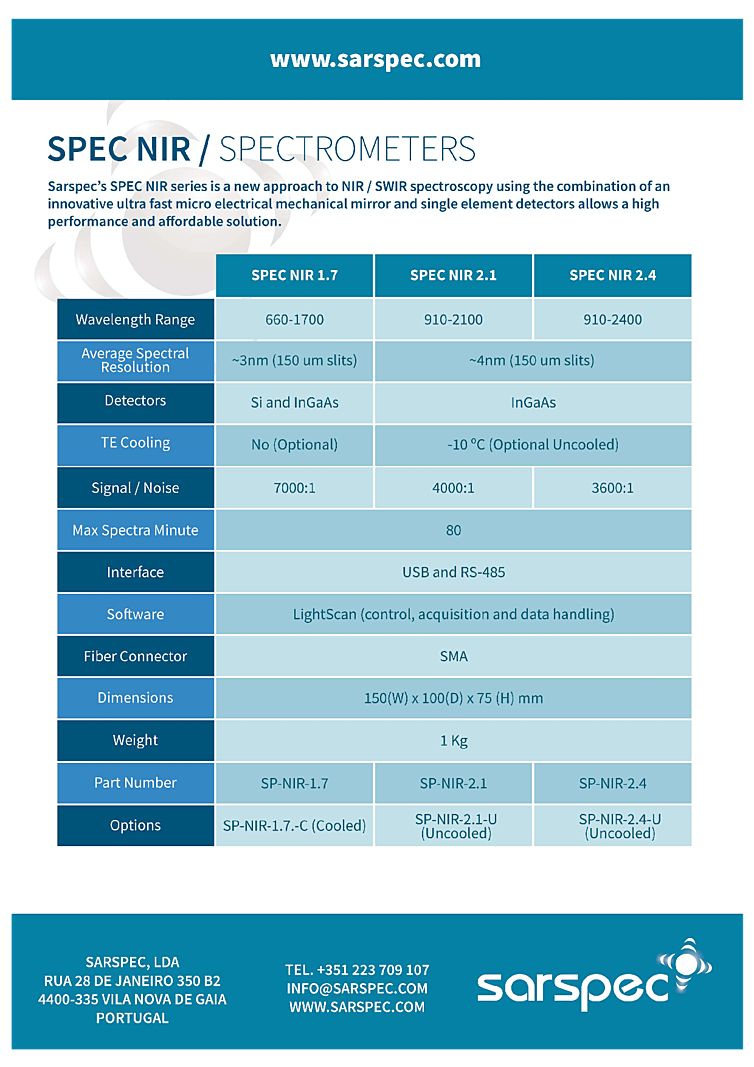

Typical Specifications:
- Wavelength range: 660-1700nm
- Spectral resolution: 3nm
- Detectors: Si and InGaAs
- TE Cooling: No (Optional)
- Signal/Noise: 7000:1
- Fiber connector: SMA

Description:

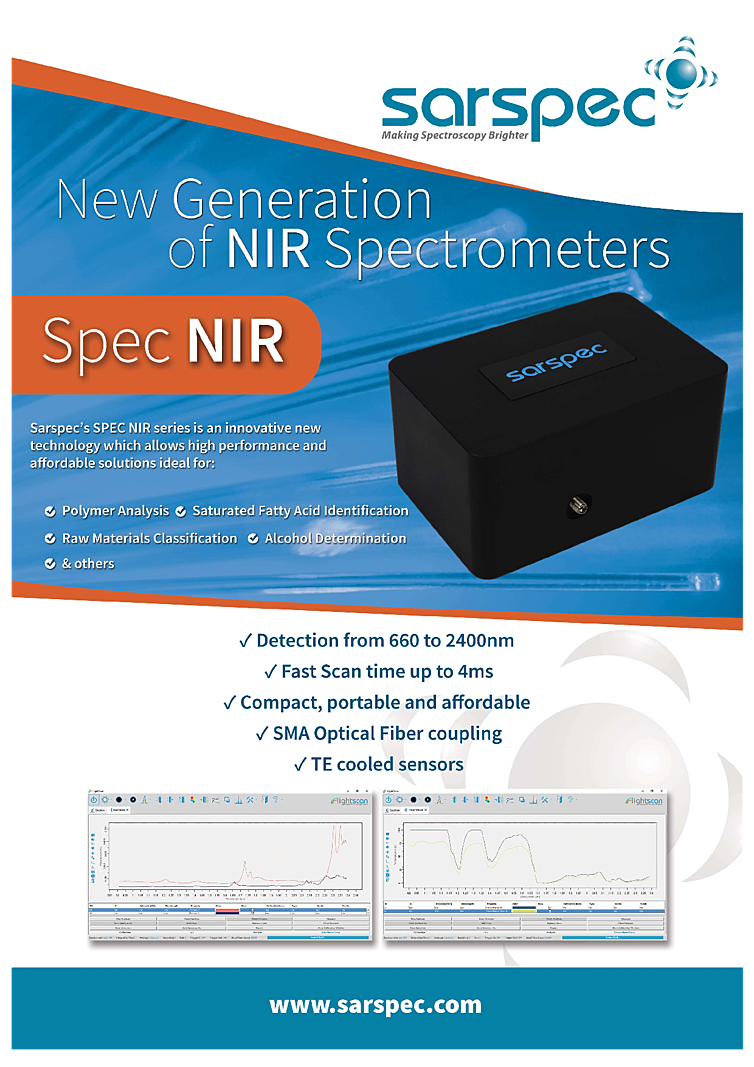

NIR Spectrometer designed for applications in Polymer Analysis, Raw Material Classification, and other NIR analysis is offered by Sarspec. The SPEC NIR 1.7 includes both Silicon and InGaAs detectors to cover the wavelength range of 660nm to 1700nm. The SMA fiber input and 150µm slit provides spectral resolution of 3nm. Scan speeds up to 4ms are possible and the NIR spectromter includes a USB and RS-485 interface. Compact and affordable fiber optic NIR spectrometer is designed and manufactured by Sarspec.
