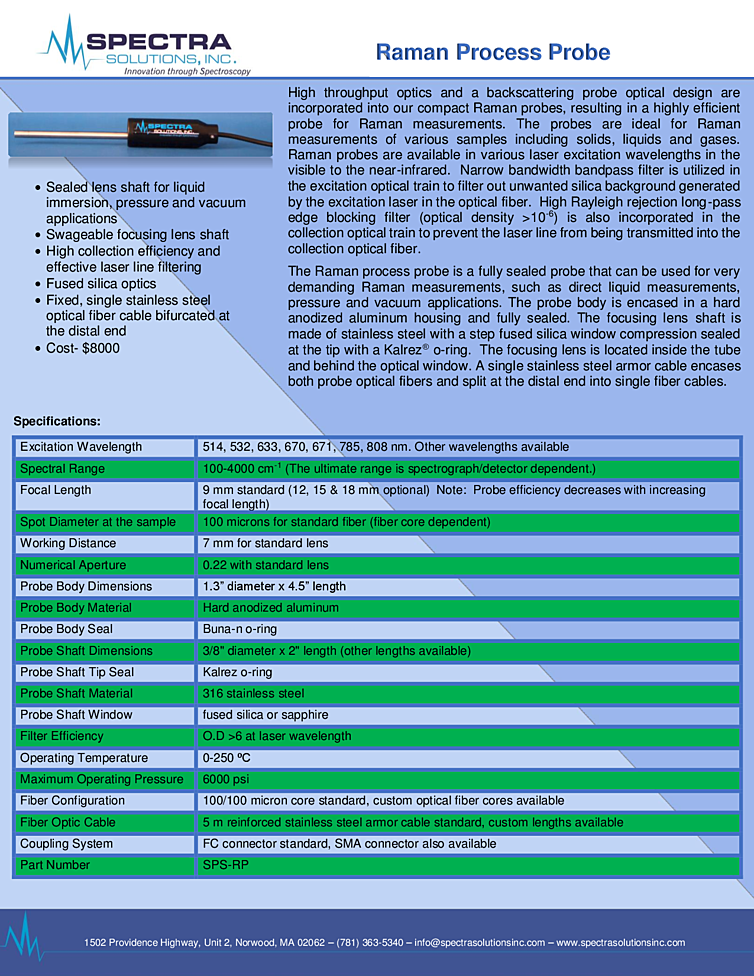

Raman Process Probe by Spectra Solutions

Spectra Solutions SPS-RP
Raman Process Probe

Typical Specifications:
- Excitation Wavelength: 514, 532, 633, 670, 671, 785, 808 nm
- Spectral Range: 100-4000 cm^-1
- Focal Length: 9 mm standard (12, 15 & 18 mm optional)
- Spot Diameter at the sample: 100 microns for standard fiber
- Working Distance: 7 mm for standard lens
- Numerical Aperture: 0.22 with standard lens
- Probe Shaft Tip Seal: Kalrez o-ring
- Probe Shaft Material: 316 stainless steel
- Probe Shaft Window: fused silica or sapphire
- Filter Efficiency: O.D >6 at laser wavelength
- Operating Temperature: 0-250 ⁰C
- Maximum Operating Pressure: 6000 psi
- Coupling System: FC connector standard, SMA connector also available
