185nm-1050nm, 1nm Spectrometer

Horiba Scientific PoliSpectra H116
185nm-1050nm Spectral Range
1nm Resolution

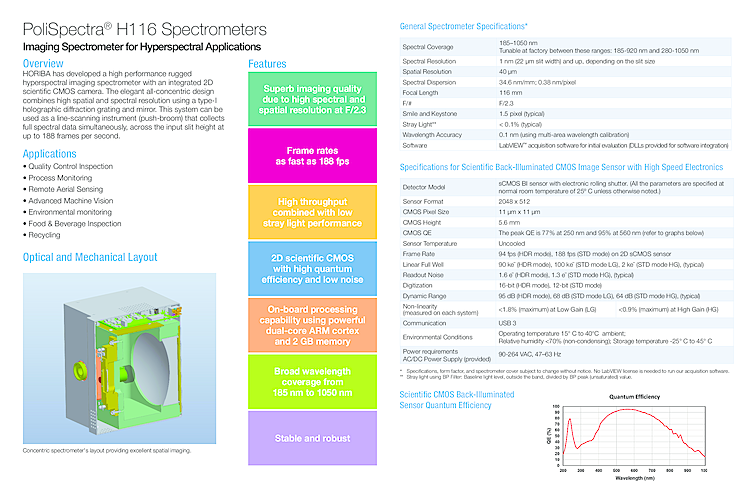

Typical Specifications:
- Spectral Coverage: 185-1050 nm (Tunable at factory between these ranges: 185-920 nm and 280-1050 nm)
- Spectral Resolution: 1 nm (22 μm slit width) and up, depending on the slit size
- Spatial Resolution: 40 μm
- Spectral Dispersion: 34.6 nm/mm; 0.38 nm/pixel
- Focal Length: 116 mm
- F/#: F/2.3

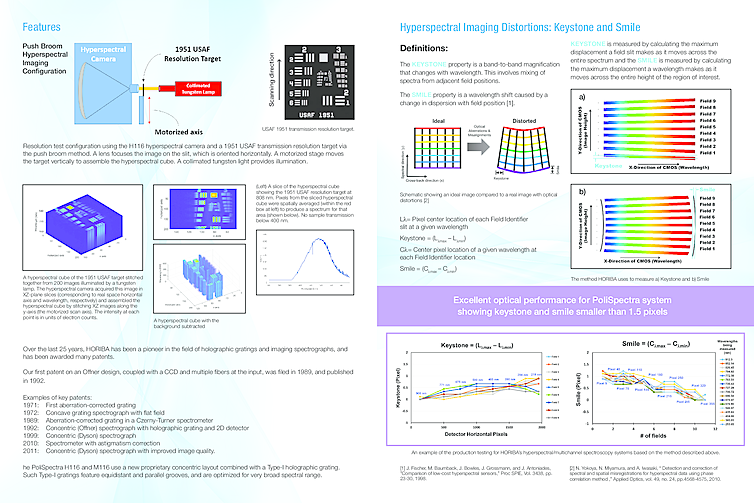

- Smile and Keystone: 1.5 pixel (typical)
- Stray Light**: < 0.1% (typical)
- Wavelength Accuracy: 0.1 nm (using multi-area wavelength calibration)
- Software: LabVIEW™ acquisition software for initial evaluation

Description:
HORIBA has developed a high performance rugged hyperspectral imaging spectrometer with an integrated 2D scientific CMOS camera. The elegant all-concentric design combines high spatial and spectral resolution using a type-I holographic diffraction grating and mirror. This system can be used as a line-scanning instrument (push-broom) that collects full spectral data simultaneously, across the input slit height at up to 188 frames per second.
