200nm-910nm, 2nm UV-NIR Spectrometer

Horiba Scientific Spectrometer: VS70-MC
200nm-910nm Spectral Range
2nm Resolution

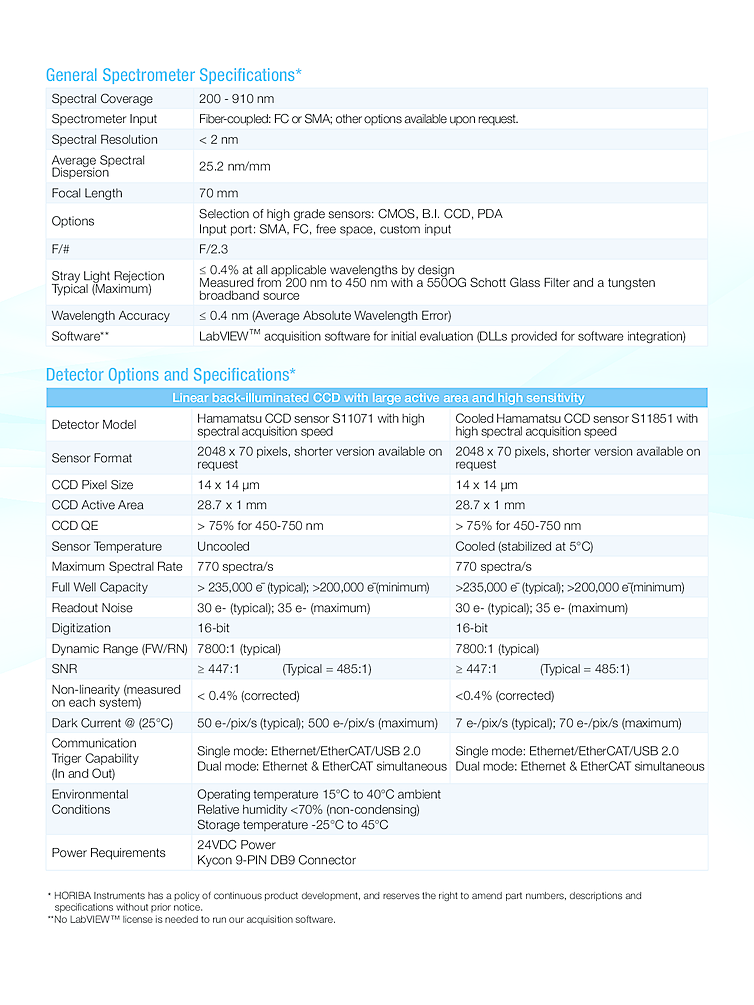

Typical Specifications:
- Spectral Resolution < 2 nm
- Average Spectral Dispersion 25.2 nm/mm
- Focal Length 70 mm
- Options: Selection of high grade sensors (CMOS, B.I. CCD, PDA), Input port (SMA, FC, free space, custom input), F/# F/2.3
- Stray Light Rejection: Typical (Maximum) ≤ 0.4% at all applicable wavelengths by design, Measured from 200 nm to 450 nm with a 550OG Schott Glass Filter and a tungsten broadband source
- Wavelength Accuracy ≤ 0.4 nm (Average Absolute Wavelength Error)
- Software: LabVIEW™ acquisition software for initial evaluation (DLLs provided for software integration)

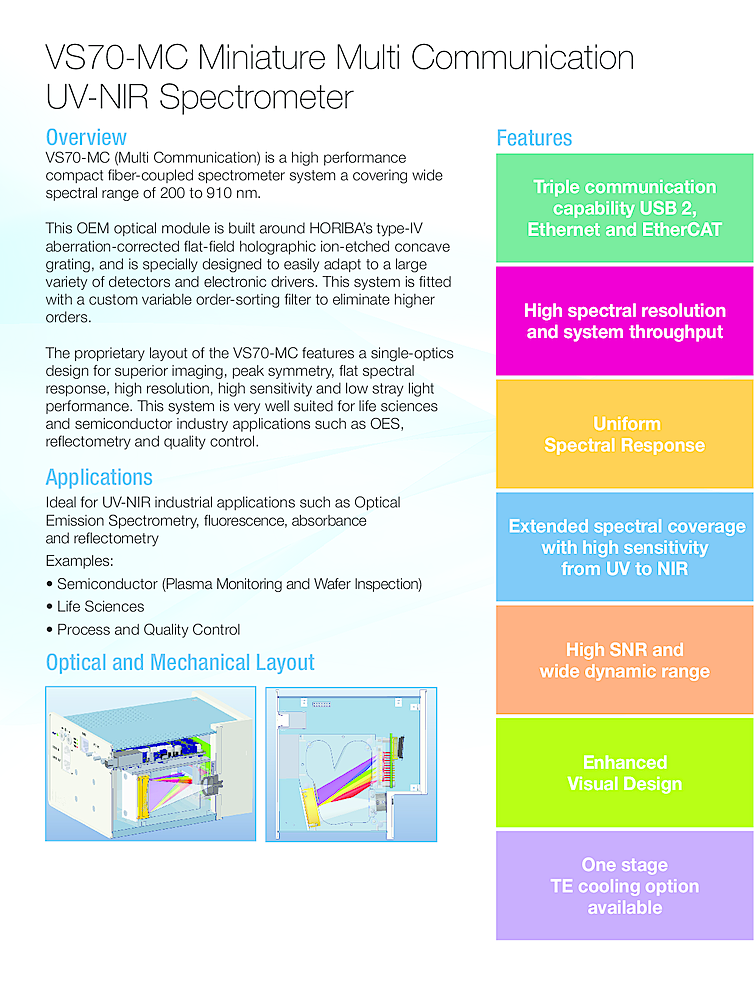

Description:
VS70-MC (Multi Communication) is a high performance compact fiber-coupled spectrometer system a covering wide spectral range of 200 to 910 nm.
This OEM optical module is built around HORIBA’s type-IV aberration-corrected flat-field holographic ion-etched concave grating, and is specially designed to easily adapt to a large variety of detectors and electronic drivers. This system is fitted with a custom variable order-sorting filter to eliminate higher orders.
The proprietary layout of the VS70-MC features a single-optics design for superior imaging, peak symmetry, flat spectral response, high resolution, high sensitivity and low stray light performance. This system is very well suited for life sciences and semiconductor industry applications such as OES, reflectometry and quality control
