200nm-1700nm, 6nm UV-VIS-NIR Spectrometer

Horiba Scientific InVizU Cube
200nm-1700nm Spectral Range
6nm Resolution

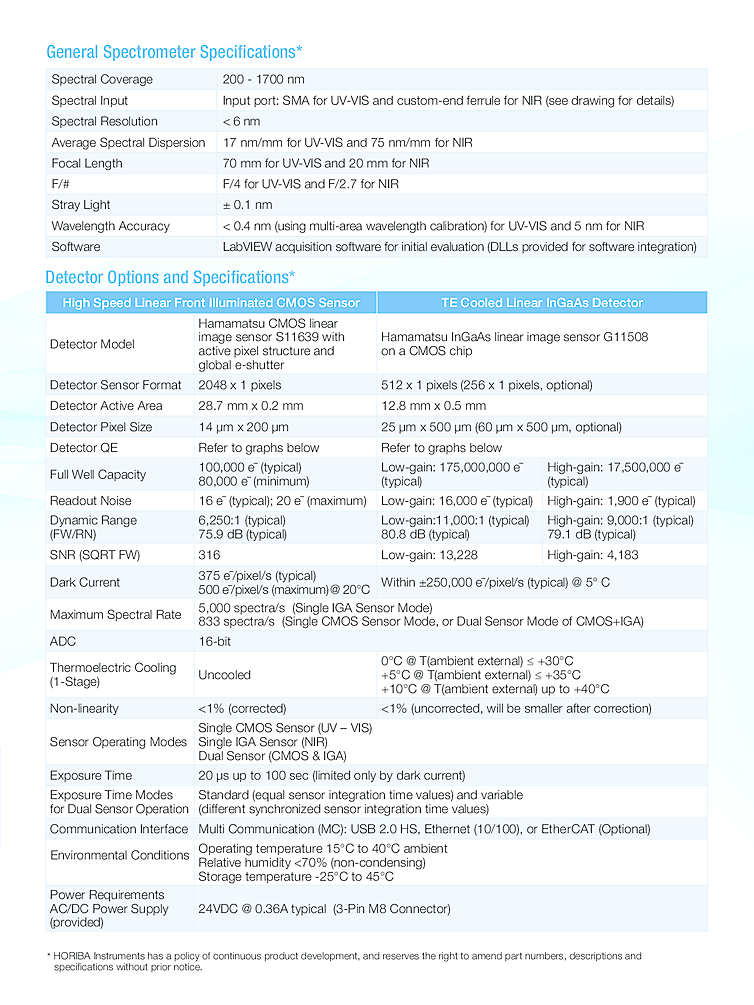

Typical Specifications:
- Spectral Coverage: 200 - 1700 nm

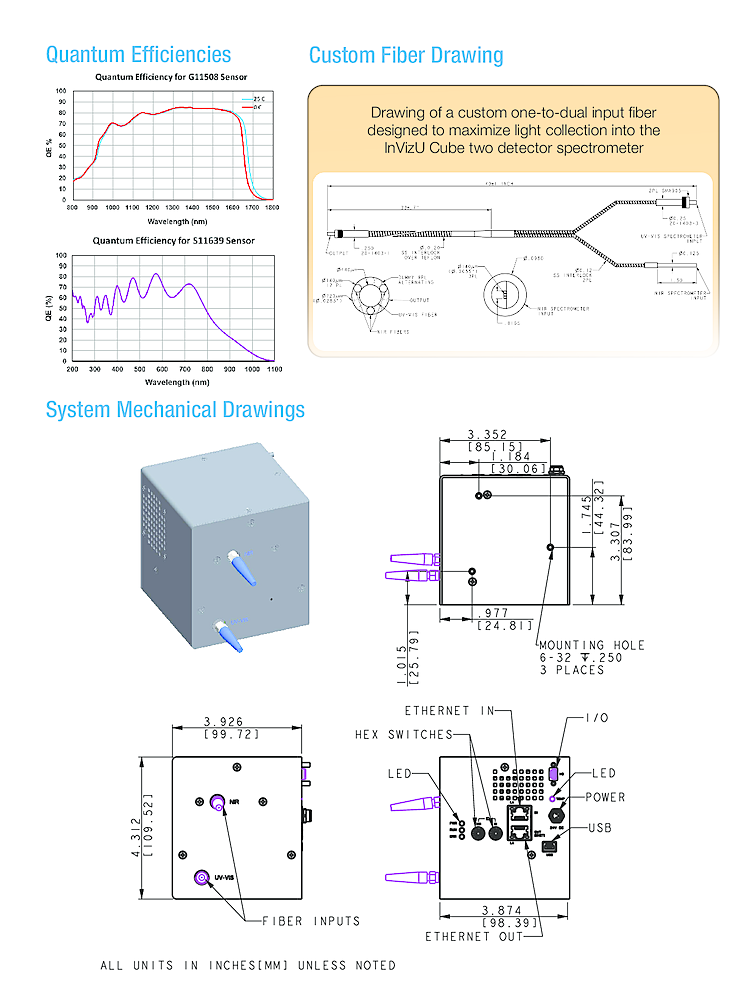

- Spectral Input: Input port: SMA for UV-VIS and custom-end ferrule for NIR (see drawing for details)
- Spectral Resolution: < 6 nm
- Average Spectral Dispersion: 17 nm/mm for UV-VIS and 75 nm/mm for NIR
- Focal Length: 70 mm for UV-VIS and 20 mm for NIR
- F/#: F/4 for UV-VIS and F/2

Description:

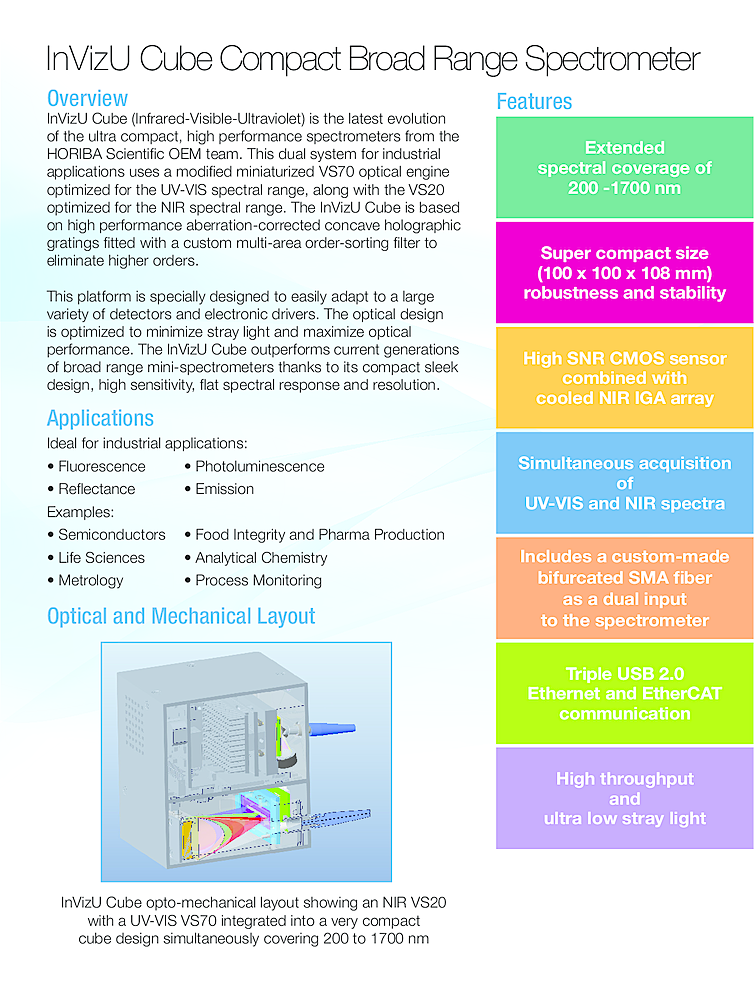

InVizU Cube (Infrared-Visible-Ultraviolet) is the latest evolution of the ultra compact, high performance spectrometers from the HORIBA Scientific OEM team. This dual system for industrial applications uses a modified miniaturized VS70 optical engine optimized for the UV-VIS spectral range, along with the VS20 optimized for the NIR spectral range. The InVizU Cube is based on high performance aberration-corrected concave holographic gratings fitted with a custom multi-area order-sorting filter to eliminate higher order. HORIBA designs and manufactures a large range of custom OEM fiber-coupled spectrometers. HORIBA OEM spectrometers provide excellent imaging quality with minimum crosstalk, high sensitivity, and high throughput.
