High-Resolution High-Rate Laser Spectrum Analyzer

Request Quote
sku / item#: ZOOM Spectra
ships: Contact

Key Features
  • 3 GHz high spectral resolution
  • Excellent absolute accuracy: 600 MHz
  • Simultaneous bandwidth of a few nm
  • High measurement rate capability: 30 kHz

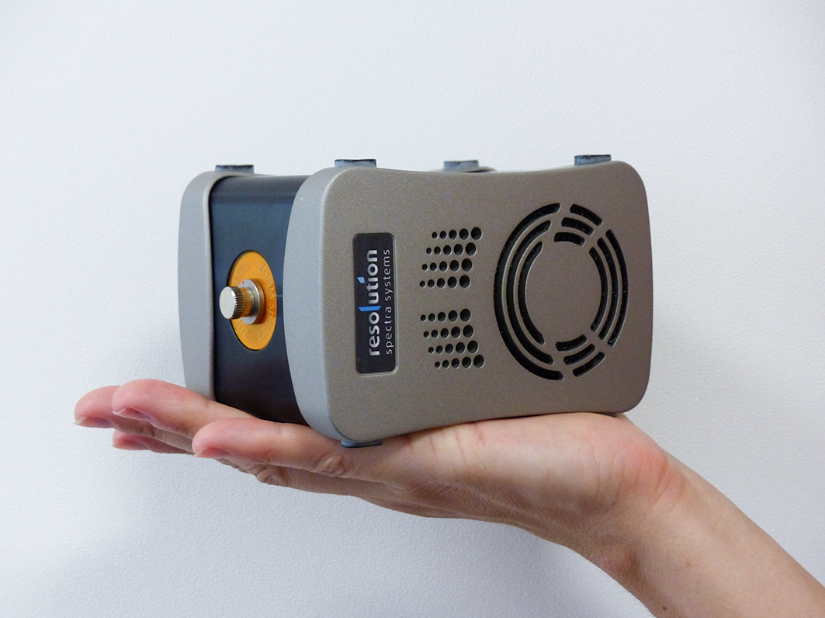

  • Compact size
  • Robust life-long factory calibration
  • User-friendly SpectraResolver software
  • Trigger
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL ZOOM Spectra
PRICE Request Price
Wavelength range
  • 630 – 1100 nm
Optical Spectral Resolution (Full Width Half Maximum (FWHM) of singlemode unresolved laser)
  • Max: 8 GHz
  • Typical: 6 GHz
  • Min: 3 GHz
Absolute accuracy
  • 1 – 2 pm / 600 MHz (T° calibrated on 10-40°C , no recalibration needed)
Maximum linewidth of a mode
  • 100 GHz (For single and multimode lasers=
Best dynamic range
  • 1:200
Wavelength bandwidth one measurement
  • 5 nm (@ 630 nm)
  • 14 nm (@ 1100 nm)
Maximum measurement rate
  • 30,000 frame/s
Integration time
  • 320 ns to 500 ms (32 ns step)
Input power range
  • 10 nW – 1 mW (Coupled in PM singlemode fiber)

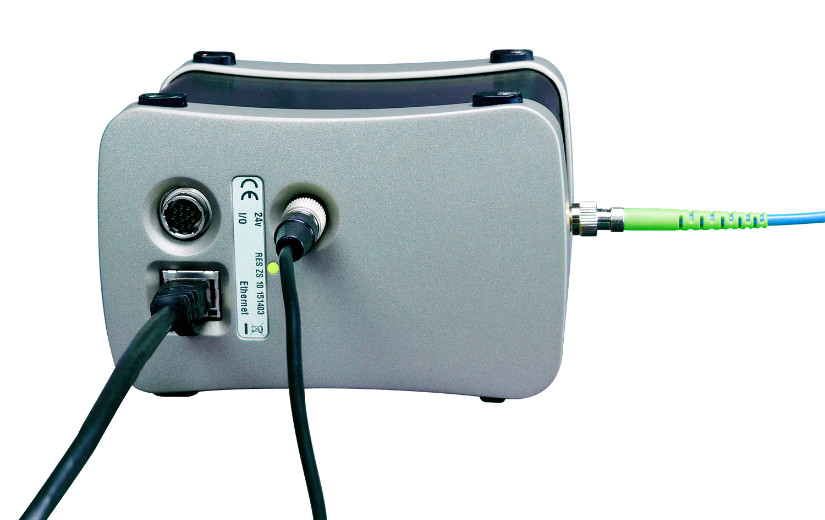

Optical input
  • FC/APC PM singlemode fiber
  • N.A. 0.12
Power consumption
  • 11 W – 450 mA @ 24 VDC
Communication
  • Gigabit Ethernet
Dimensions
  • 4.96" x 3.27" x 3.58"
Functionalities with SpectraResolver
  • Compatibility: Windows 7, 8 & 10
  • Recording: continuous, multiframe or triggered
  • Dark measurement: manual and wizard modes
  • Multi-wavelength meter function: automatic peak(s) detection
  • Standard graphical utilities: zoom, markers and peak(s) detection over time
  • Unit change: nm / cm-1 / THz
  • Trigger option: TriggerBox and adjustable trigger delay
  • Software development kit: C/C++, DotNet, VIs libraries

Product Overview:

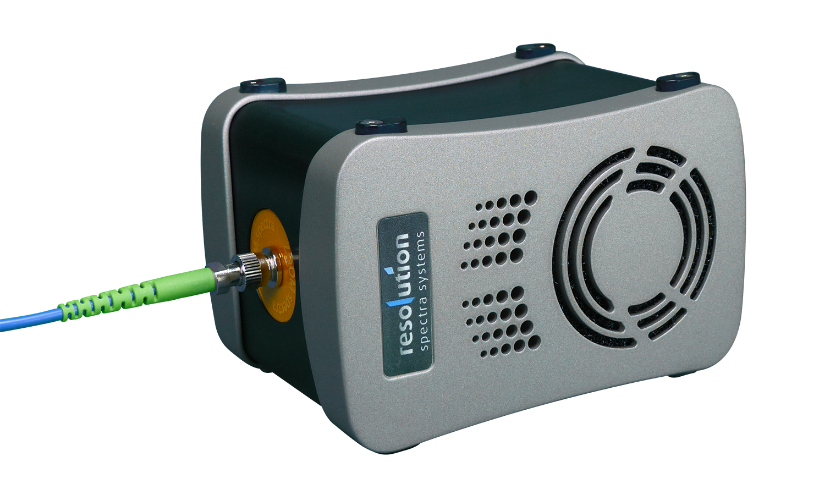

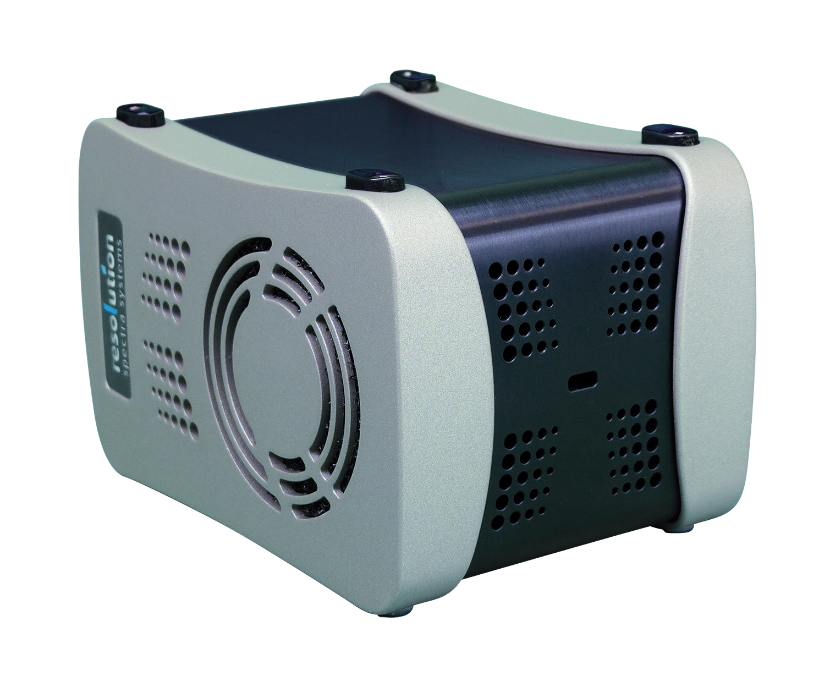

ZOOM Spectra is a High-Resolution High-Rate Laser Spectrum Analyzer. It gives access to high spectral resolution on a simultaneous bandwidth of a few nanometers. ZOOM Spectra is both a multi-wavelength meter (picometer accuracy) and a spectrum analyzer. It is the ideal tool for the characterization of your CW and pulsed lasers.
