Ultra Compact Spectrometer, Ultraviolet to Visible Spectral Range

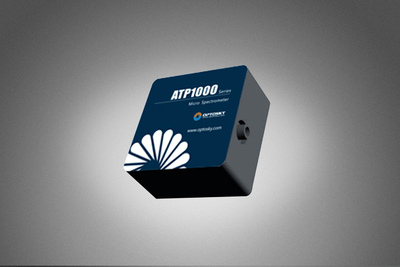

  • ATP1000 from Optosky; Compact Fiber Optic Spectrometer

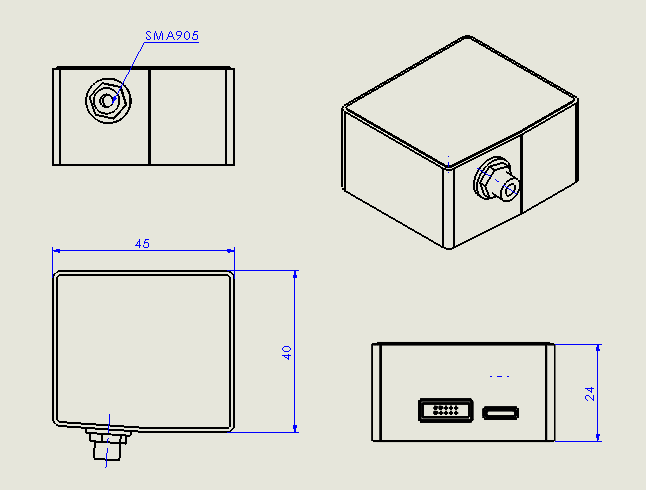

  • atp1000 Compact Spectrometer Dimensions

Request Quote
sku / item#: RLS-ATP1000
ships: Contact

Key Features
  • Compact Fiber Optic Spectrometer; 45 mm × 40 mm × 24 mm
  • Linear CCD Array
  • USB 2.0 or UART Interface
  • Light input: SM905 or free space
  • Manufactured and offered by Optosky, fulfilled by Laser Lab Source
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-ATP1000
PRICE Request Price
Optical Configuration
  • Spectral range: 200 nm - 850 nm (Custom Wavelengths Available)
  • Resolution 0.5nm - 5 nm (Depend on slit and grating)
  • Signal-to-Noise Ratio: >300:1
  • Dynamic Range: 800: 1
  • Focus Length: 40 mm for incidence / 60 mm for output
Linear CCD Detector
  • Active Pixel: 1500
  • Pixel size 5.5μm×64μm
  • Dark Noise: 48.6 RMS at 0 ˚C; 57.8 RMS at13 ˚C (10 second integration)
General
  • Power: 5 VDC
  • Remote Interface: USB 2.0 or UART
  • Size: 45 mm × 40 mm × 24 mm
  • Weight : 57 grams
Application
  • LED sorting
  • Colour measurement
  • UV gas measurement
  • Spectrum analysis, radiometer
  • Fluorescence
  • Reflection, transmission measurement;

Product Overview:

Low cost fiber optic spectrometer design to measure spectral range from 200nm-850nm. The compact design makes this UV-Vis spectroemter ideal for OEM or laboratory applications. The SMA fiber optic connector input can also be removed for free-space applications. The USB 2.0 or UART remote interface make this a powerful spectral analysis system. Common applications for this UV Visible spectrometer include Fluorescence and Reflective Spectroscopy as well as LED sorting.
