Home  >  UV-VIS Spectrometers  >  Optosky  >  RLS-ATP5020

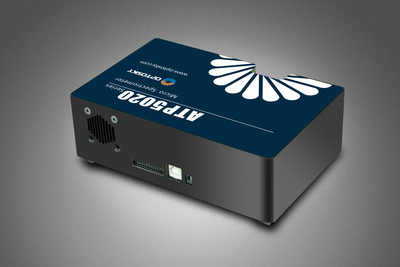

UV-VIS Fiber Optic Spectrometer

  • UV/Vis Fiber Optic Spectrometer from OptoSky

Request Quote
sku / item#: RLS-ATP5020
ships: Contact

Key Features
  • TEC Cooled, Back-Thinned, 2048 × 64 Pixel CCD Array
  • 0.1 ~ 2 nm Spectral Resolution
  • Crossed Czerny-Turner Optical Path
  • Models Available with Spectral Ranges from 180nm to 1150nm
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-ATP5020
PRICE Request Price
Detector
  • TEC Cooled, Back-Thinned CCD Array
  • Spectral Range: 180nm - 1150nm (refer to order guide on data sheet)
  • Pixels: 2048 × 64
Optical Parameters
  • Optical Path: f/4 Crossed Czerny-Turner
  • Focal Length: 77.5 mm for incidence / 111.6 mm for output
  • Entrance Slit Width: From 5μm ~ 200μm (refer to order guide on data sheet)
  • Fiber Optic Connector: SMA905 Fiber Optic Connector
General
  • Remote Interface: USB 2.0
  • Size: 170 × 110 × 52 mm
  • Weight: 1.3 kg
  • Power Supply: DC 5V ± 10%

Product Overview:

These fiber optic spectrometers utilize an ultra-high performance, 2048 x 64 pixel, TEC cooled CCD array. The precision temperature control and low internal CCD temperature set-point (-10 degrees C) greatly reduces sensor noise. The reduced sensor noise yields a signal to noise ratio which is almost two times higher than competitors' products. The TEC controlled CCD array increases the measurement reliability, and also safe-guards against measurement errors caused by ambient temperature drifts. The CCD signal processing circuit has been optimized for ultra-low noise performance, further reducing the potential for noise to reduce the accuracy of measurements. The model ATP5020 is designed with an SMA905 fiber optic connector, or can accept a free space beam. Spectral data is output by USB 2.0 interface.
