Phosphorus Doped Optical Fiber, For RAMAN Fiber Lasers and Amplifiers

Request Quote
sku / item#: OF-P-SM-x
ships: Contact

Key Features
  • Manufactured to Simplify Raman Fiber Laser and Amplifier Development
  • Emission Wavelength Range: 1100nm - 1600nm
  • Raman gain @ 1480 nm: > 5.0 dB/km-W
  • Available in Single Mode or Polarization-Maintaining Fiber (PANDA)

Price and Delivery Quote

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE Request Price

Product Overview:

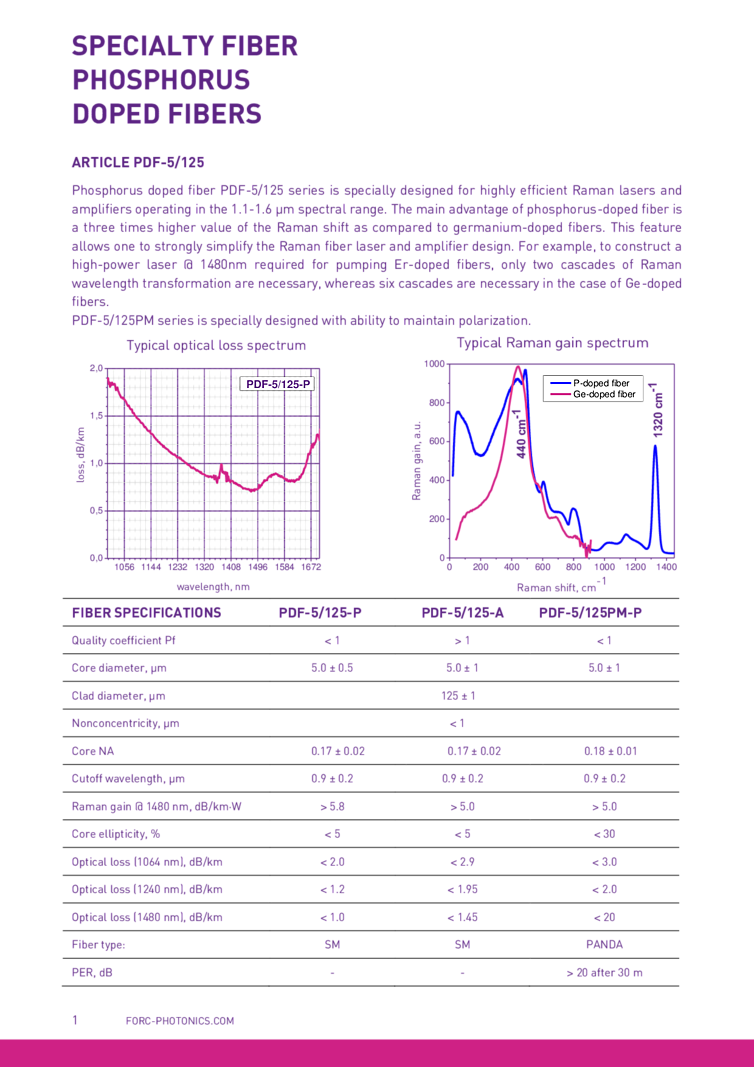

Phosphorus doped fiber PDF-5/125 series is specially designed for highly efficient Raman lasers and amplifiers operating in the 1.1-1.6 µm spectral range. The main advantage of phosphorus-doped fiber is a three times higher value of the Raman shift as compared to germanium-doped fibers. This feature allows one to strongly simplify the Raman fiber laser and amplifier design. For example, to construct a high-power laser @ 1480nm required for pumping Er-doped fibers, only two cascades of Raman wavelength transformation are necessary, whereas six cascades are necessary in the case of Ge-doped fibers. PDF-5/125PM series is specially designed with ability to maintain polarization.
