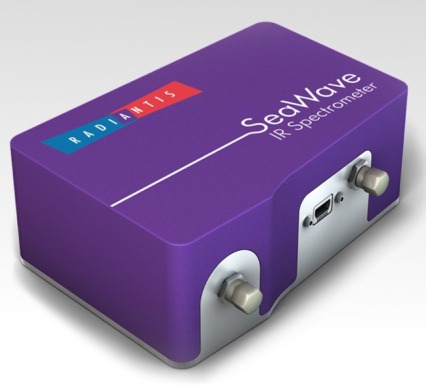

Compact NIR Fiber Optic Spectrometer

  • NIR Spectrometer, 900nm-1700nm

Request Quote
sku / item#: RLS-SeaWave
ships: Contact

Key Features
  • Spectral Range: 900nm - 1700nm
  • Resolution: 3nm (Slit and Detector Dependent)
  • Sampling Rate: >1000 spectra/second
  • Compact Footprint and OEM Options
  • High Speed USB 2.0 Interface
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-SeaWave
PRICE Request Price
Optical Configuration
  • Grating: 300 lines/mm, 900nm - 1700nm, Blaze Wavelength 1µm
  • Entrance Aperture: 25 / 50 / 100 /200 µm slit or no slit
  • Input: SMA Fiber or Free-Space
  • Optional Long Pass FIlter
  • Detector: Hamamatsu InGaAs Linear Array (512 Pixel)
  • Numerical Aperture: 0.25
Output
  • Spectral Response Range: 900nm - 1700nm
  • Signal to Noise Ratio: 18,000 : 1 at 20ms
  • Dynamic Range: 6000 : 1
  • Integration Time: 6 µs to 1 second
  • Dynamic Range: 16 bit
  • Trigger In / Out
General
  • Dimensions (W x L x H): 70.5mm x 104mm x 42mm
  • Power: USB 2.0 Bus Powered
  • Interface: USB 2.0 High Speed
  • Cooling: No Cooling

Product Overview:

High performance NIR spectrometer in a compact form-factor designed for laboratory or OEM applications. Spectral range of the Hamamatsu detectors is 900nm to 1700nm; please inquire about greater than 1700nm wavelengths. Less than 3nm resolution is possible with choose of slit and limited spectral range. The USB 2.0 powered bus provided both power and high speed data acquisition for this NIR spectrometer.
