FIBER OPTIC SPECTROMETER, Toshiba CCD Sensor

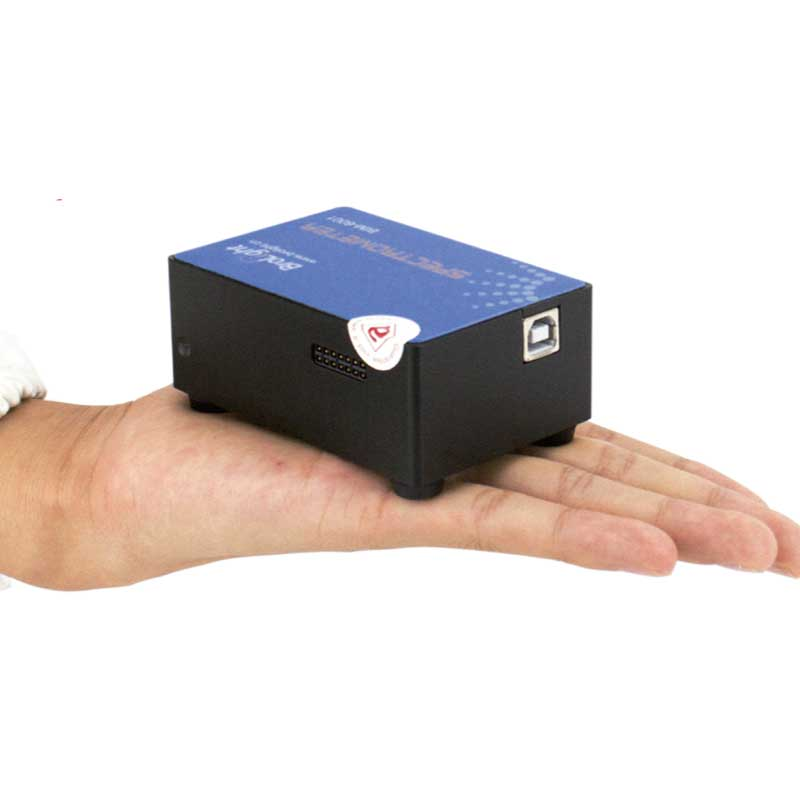

  • Fiber Optic Spectrometer

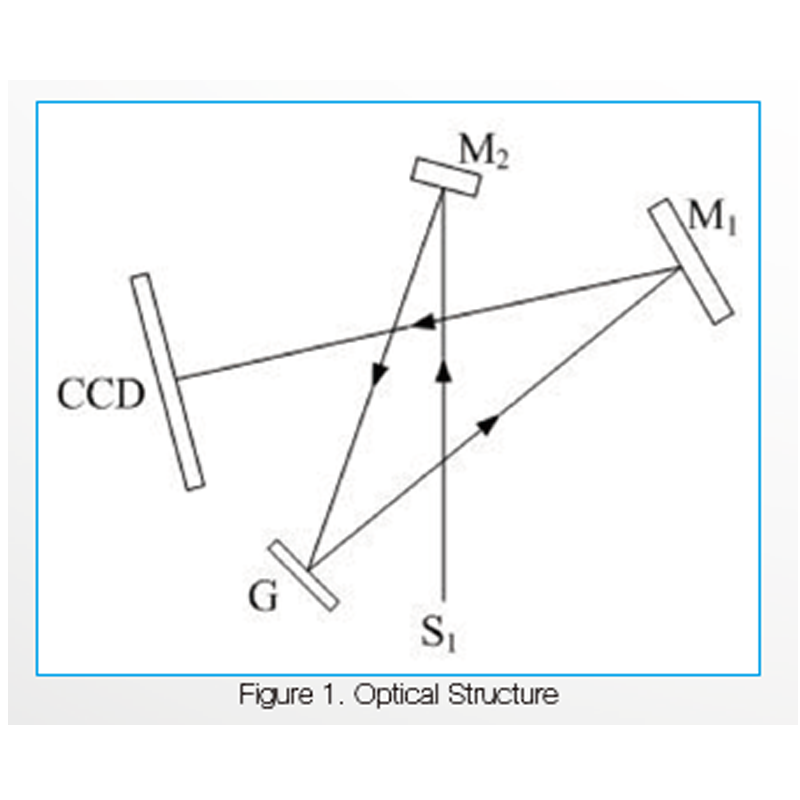

  • Fiber Optic Spectrometer Optical Structure

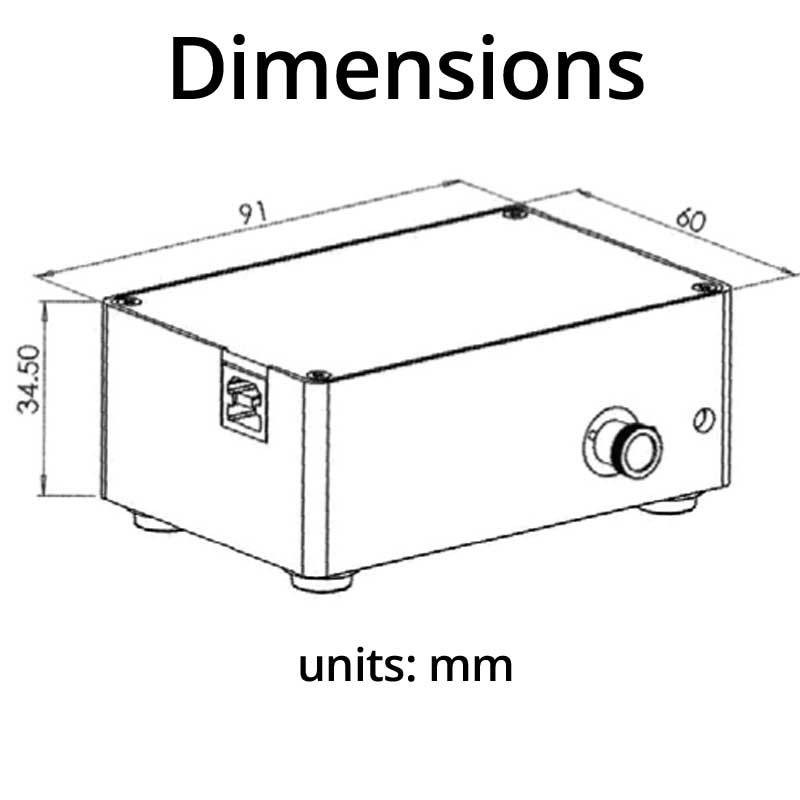

  • Fiber Optic Spectrometer Dimensions

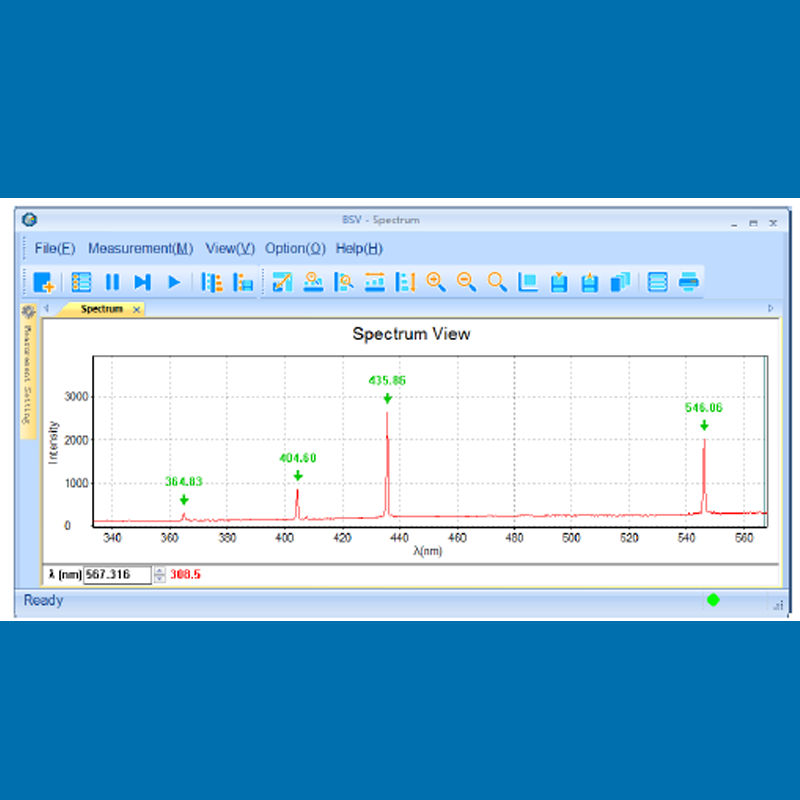

  • Spectrometer Software View

Request Quote
sku / item#: BIM6000103
ships: 2 weeks

Key Features
  • ≤0.5nm Accuracy, Toshiba CCD sensor
  • USB 2.0 and RS232
  • Fast data acquisition speed
  • Multiple trigger modes: External, Software and Synch
  • Crossover asymmetric optical structure suppresses stray light on the surface plane & eliminates the effects of secondary refraction

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL BIM6000103
PRICE Request Price
Specifications
  • Spectral Measurement Accuracy: ≤0.5 nm
  • Spectral Response Wavelength Range: 350 nm - 700 nm
  • Slit Size: 25um (width) x 2mm (height)
  • Signal to Noise Ratio (@ Full Scale): 300:1
  • Detector Manufacturer & Model: Toshiba 3648 CCD
  • Grating (lines / mm): 600
  • CCD Pixel Number: 2048
  • CCD Pixel Size: 8 µm ×2 00 µm
  • A/D Resolution: 12 bit
  • Integration Time: 4 ms -10 s
  • Operating Temperature Range: 5℃ - 35℃
Sensor Information
  • Sensor Manufacturer & Model: Toshiba 1304CCD
  • Grating (lines / mm): 600
  • CCD Pixel Size: 8 µm × 2 00 µm
  • CCD Pixel Number: 3648
User Interface and Fiber Optic Connector
  • Dimensions: 91 mm × 60 mm × 34.5 mm
  • Fiber Optic Connector: SMA905
  • Computer Interface: USB 2.0
  • Control Software with GUI Included
  • Operating System Compatibility: Win XP, 8 & 10
Dimensions and General Specifications
  • Dimensions: 91 mm × 60 mm × 34.5 mm
  • Weight: 0.3 Kg
  • Power Consumption: 250 mA, 5 VDC
External Trigger, Software Trigger, Synch Trigger
  • External Trigger Signal: TTL, Rising Edge
  • External Trigger Input Impedance: 50 Ω
  • Trigger Frequency Bandwidth: 250 Hz
  • Trigger Pulse Length: > 1 µs
  • Trigger Delay: < 20 µs

Product Overview:

These affordable, high accuracy spectrometers cover the spectral range 350nm to 700nm, with measurement accuracy better than or equal to 0.5nm. They are based on industry leading high quality core components including a Toshiba CCD detector and a high-order diffraction filter. The optical design and software can be customized on request to fit OEM requirements and instrument applications.
