Laboratory Grade 785 nm Raman Probe, For Solids and Liquids

  • 785nm Raman Probe

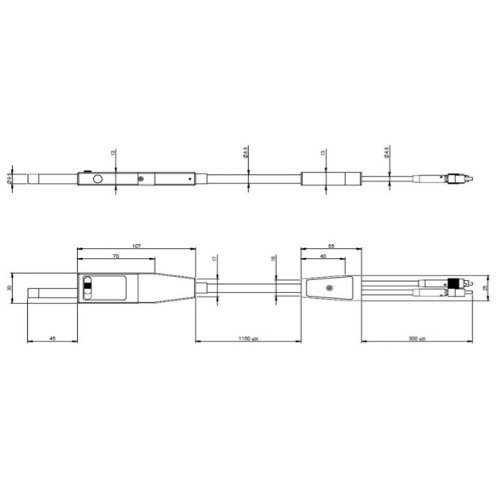

  • Dimensions of Raman Probe

sku / item#: RLS/RAMAN-PROBE-785NM
ships: 2 - 3 Weeks

Key Features
  • Spectral Range: 176- 3500 cm-1
  • Up to 8 mm Working Distance
  • Compact Design with High Coupling Efficiency
  • Available as Free Standing Raman Probe, contact for price and availability
  • Offered by RealLight Technology Company, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $2300.00
  • Spectral Range: 176 - 3500 /cm
  • Working Distance: Up to 8 mm
  • Filter Efficiency: OD6
  • Excitation Fiber: 105μm, NA 0.22; SMA905 or FC/PC
  • Collection Fiber: 200μm, NA 0.22; SMA905
  • Fiber Length: (100 mm +30 mm ) ±0.2 mm
  • Refer to datasheet for additional specifications

Product Overview:

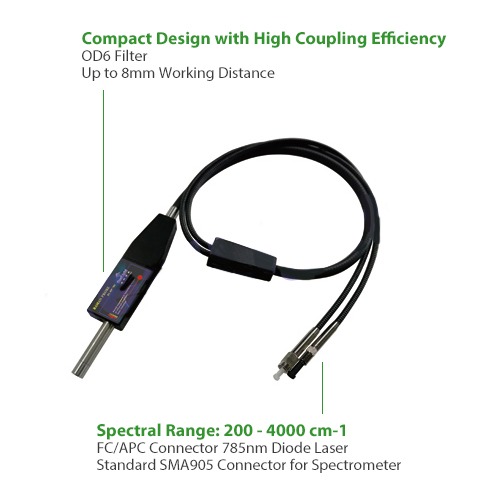

Laboratory Grade 785nm Raman Probe

This general purpose laboratory Raman Probe is designed for efficiently measuring solid or liquid samples with a spectral range of 176 cm-1 to 3500 cm-1.

The standard Raman Probe supports an excitation wavelength of 785nm which can be coupled to a laser diode through the FC/PC connector (SMA905 available upon request). The excitation fiber is 105 µm core with NA of 0.22 with 110cm fiber optic pigtail. The collection fiber to the spectrometer is 200 µm core with NA of 0.22 and SMA905 connector which fits most standard Raman Spectrometers. The integrated OD6 filter helps removes effects of Rayleigh Scattering.

The standard working distance is 8mm and different distances are available upon request. The dimensions of the probe excluding the fiber pigtail is 107 mm by 30 mm and 13mm. A manual shutter can also be integrated into this general purpose Raman Probe.
