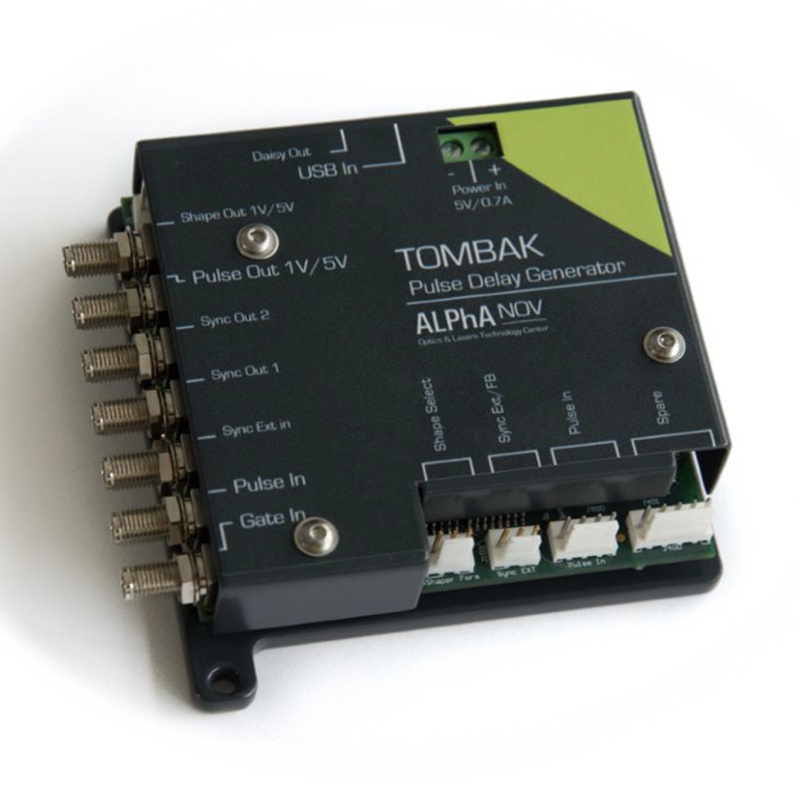

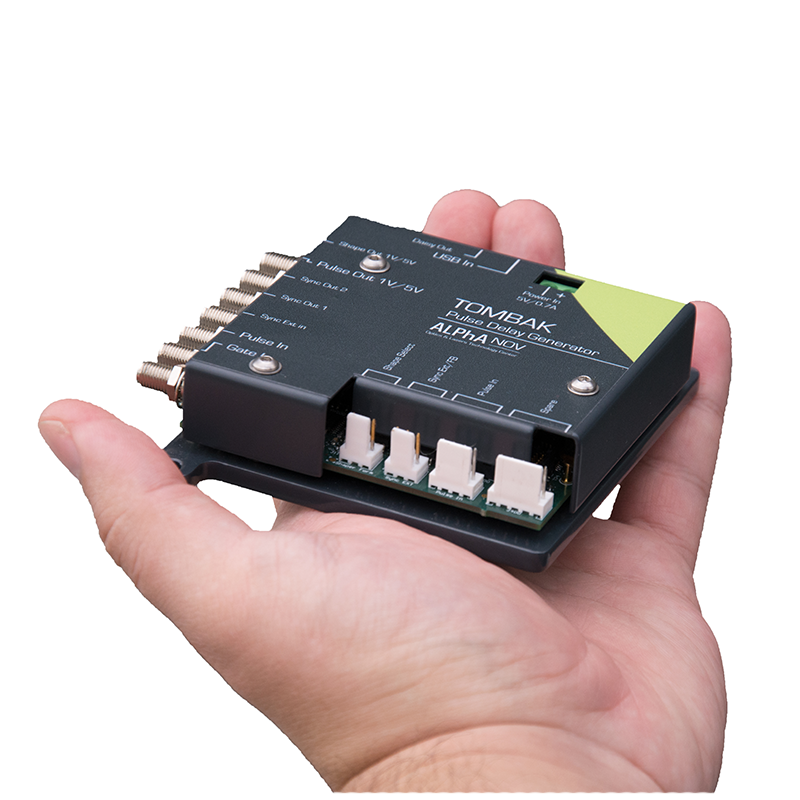

Ultra-Fast Laser Pulse-Picker and Digital Delay Generator for Laser Timing and System Synchronization

$1795.00   Ships: In-Stock (USA) -- Quantity Available: 9 | Model TOMBAK

Key Features
  • Optimized for Laser Pulse-Picking, Timing & Control Systems
  • Laser Pulse-Picking up to 200 MHz Input / 20 MHz Output
  • Stand Along 20 MHz Pulse Generator
  • 2 Nanosecond Pulse Resolution
  • 150 MHz Voltage Level Converter
  • USB Interface with Control Software
  • Offered by AeroDIODE a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Shipping & Warranty Information

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL TOMBAK
PRICE $1795.00

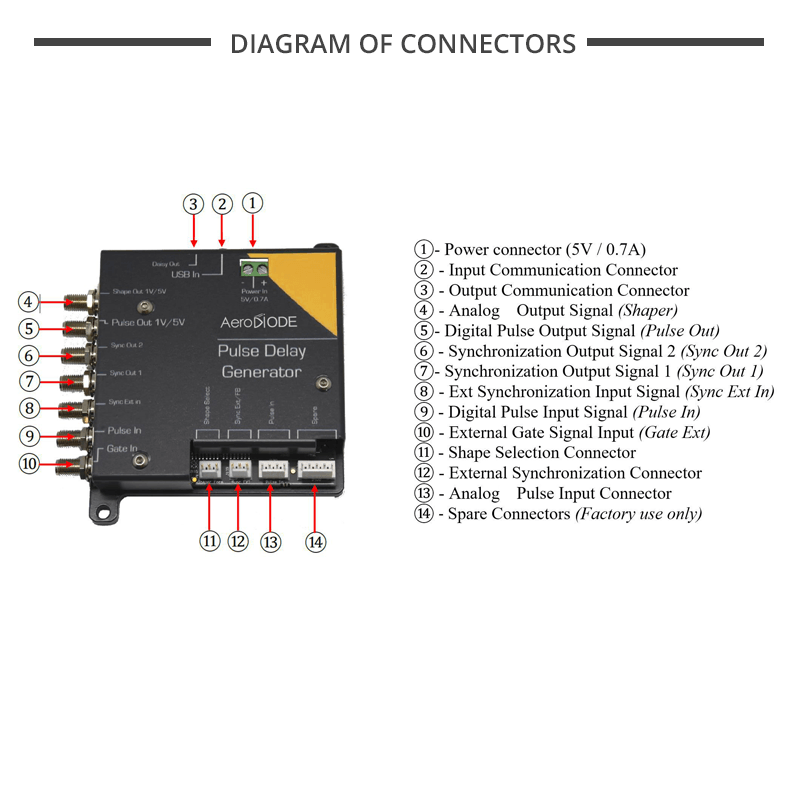

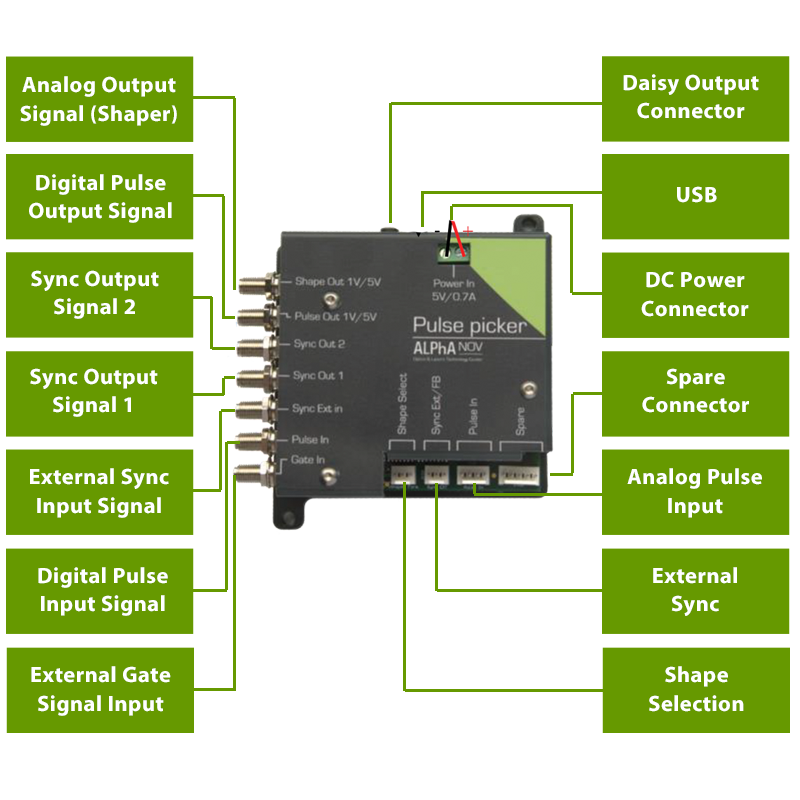

Pulse Delay Generator Output (SMA connector)
  • Pulse Delay Resolution: 100 psec
  • Pulse Width Resolution : 2 nsec
  • Adjustable Pulse Delay Range: 10 picoseconds to 1000 seconds
  • Adjustable Pulse Width Range: 5 nanoseconds to 1000 seconds
  • Coupling Impedance: 50 Ω
  • Adjustable Output Level: 1V, 3.3V, 5 V TTL
  • Rise Time: 1 nsec (typical)
  • Jitter: <80 psec RMS (up to 100 nsec)
Pulse Delay Generator Input (SMA connector)
  • Input Voltage: 0V to 3.3V

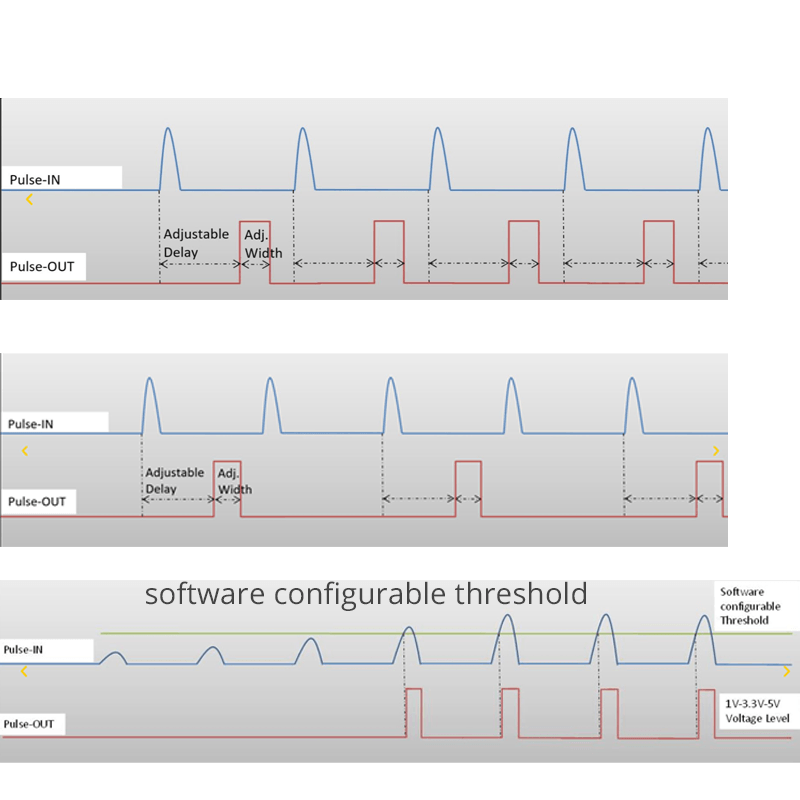

  • Threshold: 0 to 3.3 VDC software adjustable (Pulse-In)
  • Max Input Rate: 200 MHz
  • Insertion Delay: 70 nsec

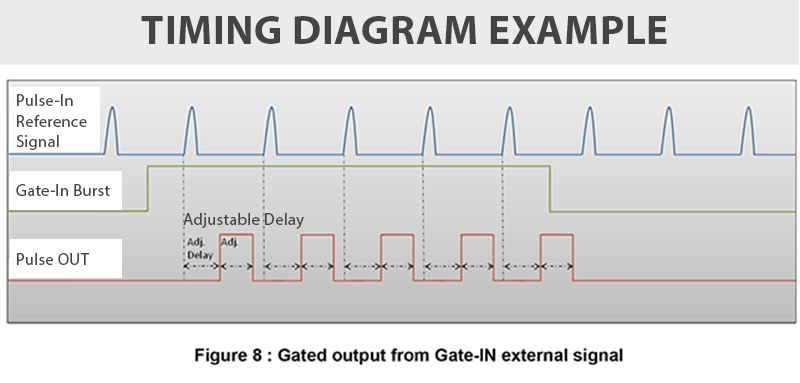

Sync External / Gate Input (SMA connector)
  • Input Voltage 0 to 3.3 V
  • Threshold: 1.2 V
  • Max Input Rate: 20 MHz
Stand-Alone Pulse Generator Output
  • Repetition Rate :0 to 20 MHz
  • Programmable Duty Cycle
GENERAL
  • Small Form Factor: 104mm x 89mm x 27mm
  • Power Adapter: +5 VDC/500 mA (included)

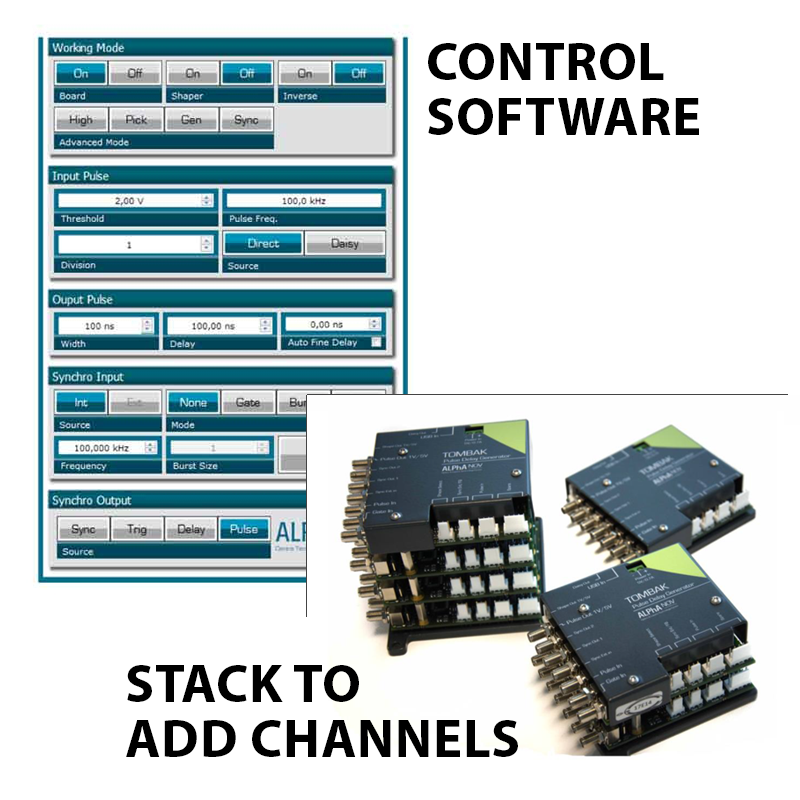

  • USB 2.0: Cable Included, Software & GUI Included

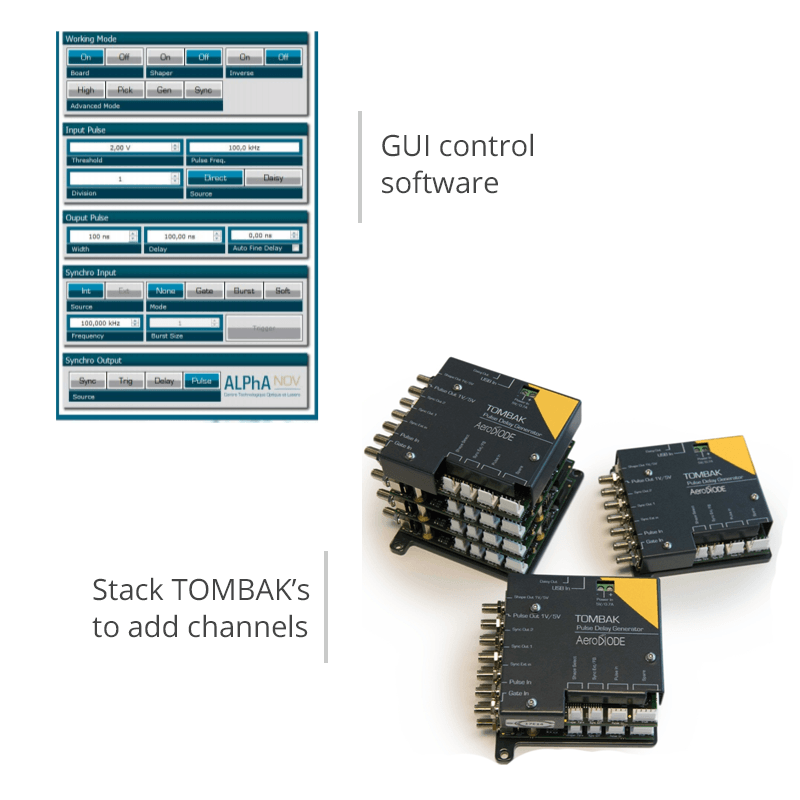

  • Multi-Channel: Multiple Units Can be Controlled from a Single USB, Single Power Supply, and Single Synchronization Input Signal

Product Overview:

Digital Delay Generator for Laser and Electronics Timing and Synchronization Systems:

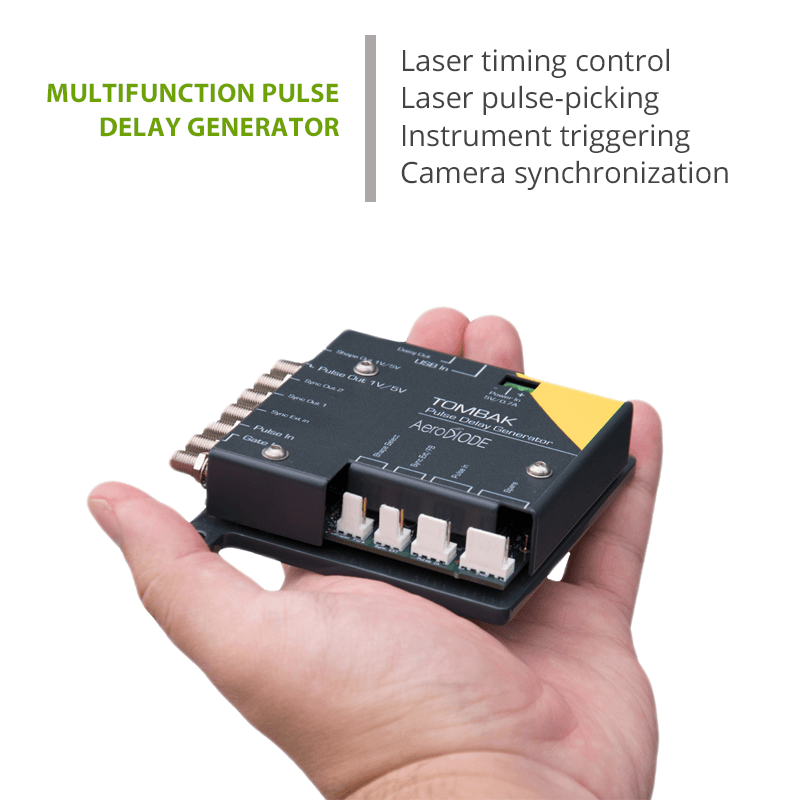

These digital delay generators / pulse drivers are precision, multi-functional synchronization modules for timing control of lasers and electronic systems. The TOMBAK enables the user to consolidate multiple functions into one affordable compact device. They can be used as an ultra-fast laser pulse-picker, a stand-alone laser diode pulse driver, or as a pulse delay generator for digital synchronization of laser timing systems. This unit is an ideal choice for generating high frequency pulses, delays and bursts in laser timing and control applications. These units can be used as a stand-alone laboratory testing product or for OEM integration into your product.

Applications of these pulse delay generators include component testing, laser timing control, laser pulse-picking and laser diode pulsing.

The TOMBAK series digital delay / pulse generator modules provide precise delays for synchronizing, triggering and delaying precisely timed events. These modules deliver less than 80 picoseconds of RMS jitter abd are used in applications that require processes and controls based on precision electronic timing. A 150 MHz voltage level converter and 20 MHz standalone generator with a USB interface are backed by a two year standard product warranty.
