EDFA Pre-Amplifier; C-Band; up to 35 dB Optical Gain

Request Quote   Ships: 3 weeks | Model AMN-EDFA-35dB

Key Features
  • High Gain: > 35 dB (@-40 dBm)
  • Low Noise, High Polarization Extinction Ratio
  • Manufactured by Amonics, Fulfilled by Laser Lab Source

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AMN-EDFA-35dB
PRICE Request Price
Specifications
  • Input Signal Level: -40 to -10 dBm

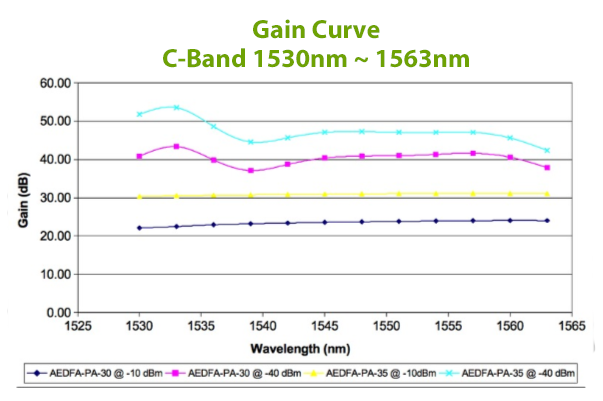

  • Optical Gain @ -40dBm: > 35 dB
  • Optical Gain @ -10 dBm: > 30 dB
  • Noise Figure @ -20dBm: < 4.3 dB
  • Operation Wavelength: 1530nm - 1563nm
  • Input Isolation: > 30 dB
  • Output Isolation: > 30 dB
  • Polarization Dependent Gain: (typ) 0.3 dB
  • Polarization Dependent Gain: (max) 0.5 dB
  • Power Adjustment Step Size: 0.01 dBm
  • Gain Medium: Erbium Doped Fiber
USER INTERFACE

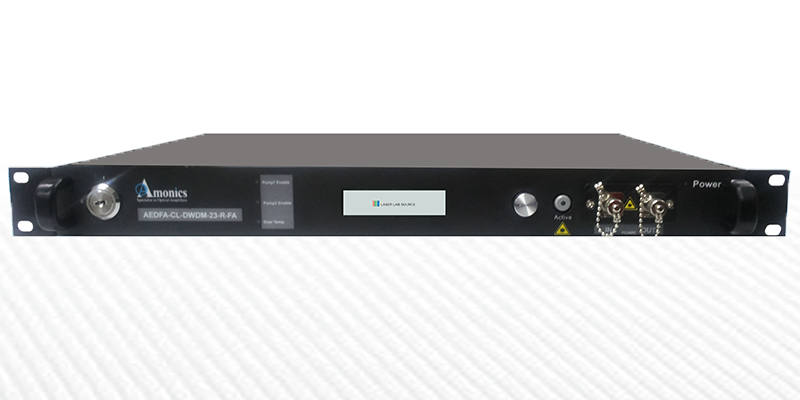

  • Alphanumeric Color Front Panel Interface w/ Adjust Knob
  • Remote: RS232, LabView Control Software Included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connectors IN/OUT: FC/APC
GENERAL SPECIFICATIONS
  • Operation Temperature: 0 to 40 ℃
  • Required AC Shore Power: 90-240 (VAC), 47-63 Hz
  • Remote Control RS2323 Port: DB-9 female
  • TCPIP/Ethernet optional
  • Protection: Pump Lasers (TEC) Over-Temperature
  • Protection: Pump Lasers Current Limit
  • Connectors: APC (Others Available on Request)
  • Safety Control 1: Key-Lock Switch
  • Safety Control 2: BNC Interlock
APPLICATIONS
  • Laboratory R&D
  • SONET/SDH System
  • Optical Communications
  • Fiber Optic Sensing
  • CATV

Product Overview:

These high optical gain 1550nm range (C-Band) pre-amplifier EDFA's are designed to produce maximum signal gain and the highest level of saturated output power while maintaining a low noise figure. These high performance pre-amplifiers are used for demanding R&D applications as well as in component testing and manufacturing processes. These units provide full control over the power and gain through user control of the pump(s) laser diode current levels, or by setting the instrument into a gain feedback or power feedback mode. Settings can be made via an easy to use front panel with an intuitive menu and control knob or by remote interface. LabVIEW based control software is available and ships free of charge. Please contact us if you would like to view the Operating Manual or see the command set.

These pre-amplier EDFA instruments have Telcordia GR/488 qualified 980nm laser diode pump source lasers. They also utilize the highest reliability grade Telcorida qualified combiners. The principal theory of design is the laser light from these pump wavelengths excites the erbium ions embedded in the doped fiber. This excitation from their ground state provides the high excitation levels at the desired wavelengths and produces high gain levels of up to 35 dB.
