200mW Output Power EDFA; C-Band; Polarization Maintaining Amplifier

  • Polarization-Maintaining EDFA C-Band
  • High Power 1550nm EDFA; C-Band, Output Power up to 10 Watts Diagram

Request Quote   Ships: Request Current Lead-Time | Model AMN-EDFA-200mW-PM

Key Features
  • Polarization Maintaining Fiber Amplifier
    (Non-PM models also available)
  • User Adjustable Output Power; User Control of Current Level to Internal 976nm Pump Laser Diodes
  • Includes Loss of Input Power Detection with Pump Shut-Down Safety Features
  • High Gain, Low Noise, High Polarization Extinction Ratio
  • Manufactured by Amonics for Laser Lab Source
  • Sold & Supported in North America by:
    Laser Lab Source

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product


Questions route directly to the correct Product Engineer

Customers Also Considered:

PRICE Request Price
Optical Specifications

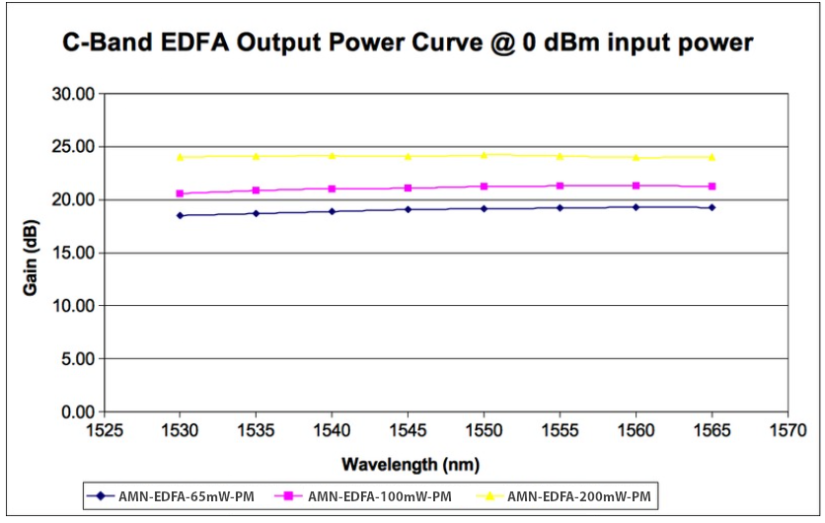

  • Output Power Range: Adjustable up to 0.2 W (+23 dBm) @1mW laser input power
  • Operational Gain Wavelength Range: 1530nm - 1565nm
  • Acceptable Input Laser Source Power Range: -6 dBm to +3 dBm
  • Input Isolation: > 30 dB
  • Output Isolation: > 30 dB

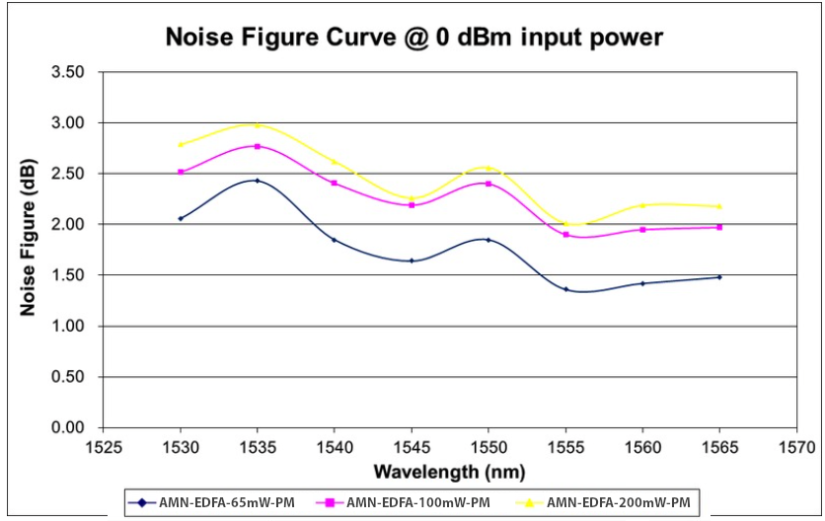

  • Noise Figure: 5.5 dB (at 0 dBm Input)
  • Standard User Control Mode 1: ACC (user adjustable pump current levels)
  • Optional User Control Mode 2: APC (optical output power feedback; optional)
  • Polarization Extinction Ratio: > 20 dB, 23 dB typical
  • Power Adjustment Step Size: 0.01 dBm
  • Gain Medium: Erbium Doped Fiber
  • Fiber: PM 1550nm Panda Fiber
  • Loss of Input Signal Shut-Down Protection Circuit
  • TEC / Temperature Control Limit Pump Laser Overheat Warning Protection
  • Rear Panel Safety Interlock Protection
  • Acceptable Input Laser Source Power Range: -6 dBm to +6 dBm
USER INTERFACE (all models)
  • Alphanumeric Color Front Panel Interface w/ Adjust Knob
  • Remote: RS232, LabView Control Software Included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connectors IN/OUT: FC/APC
  • Optical Fiber Options: PM fiber, (SMF-28 optional)
  • Operation Temperature: 0 to 40 ℃
  • Required Shore Power: 90-240 (VAC), 47-63 Hz
  • Dimensions: 260mm x 330mm x 120mm
  • Power Monitoring: Output Power (Input Power Optional)
  • Remote Control RS2323 Port: DB-9 female
  • TCPIP/Ethernet optional
  • Protection: Pump Lasers (TEC) Over-Temperature
  • Protection: Pump Lasers Current Limit
  • Optical Fiber: PMF Panda 1550nm PM Fiber
  • Connectors: APC (Others Available on Request)

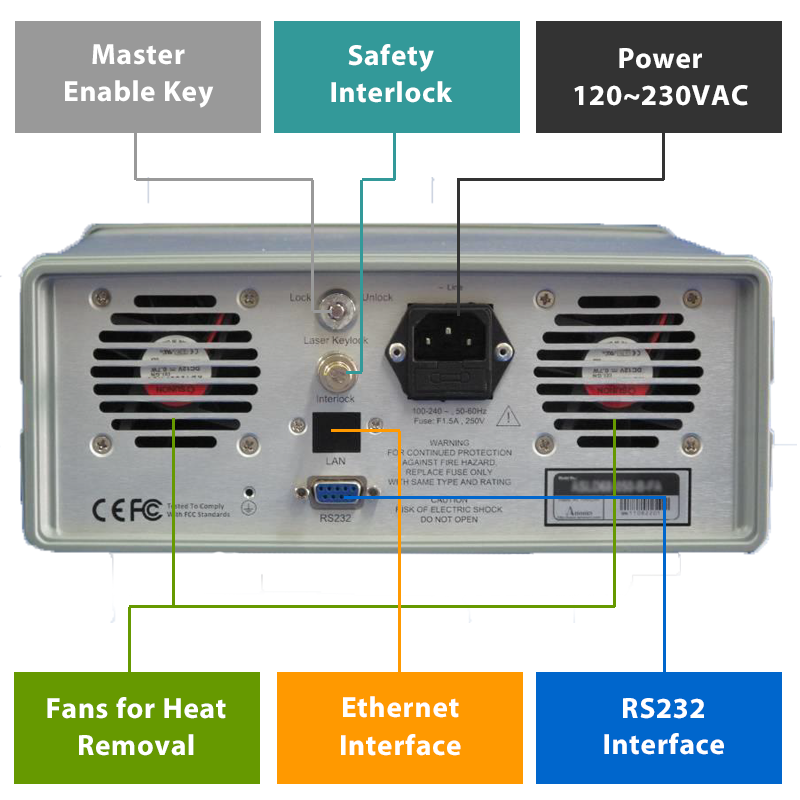

  • Safety Control 1: Key-Lock Switch
  • Safety Control 2: BNC Interlock
  • Safety Control 4: Loss of Input Power Detection and Pump Shut Down
  • Laboratory R&D
  • SONET/SDH System
  • Optical Communications
  • Fiber Optic Sensing
  • CATV and Telecommunications R&D
Polarization-Maintaining EDFA Models
Inquire For Detailed Specifications
  • AMN-EDFA-65mW-PM, 18 dBm Output Benchtop Instrument
  • AMN-EDFA-100mW-PM, 20 dBm Output Benchtop Instrument
  • AMN-EDFA-200mW-PM, 23 dBm Output Benchtop Instrument

Product Overview:

High Power EDFA Overview:

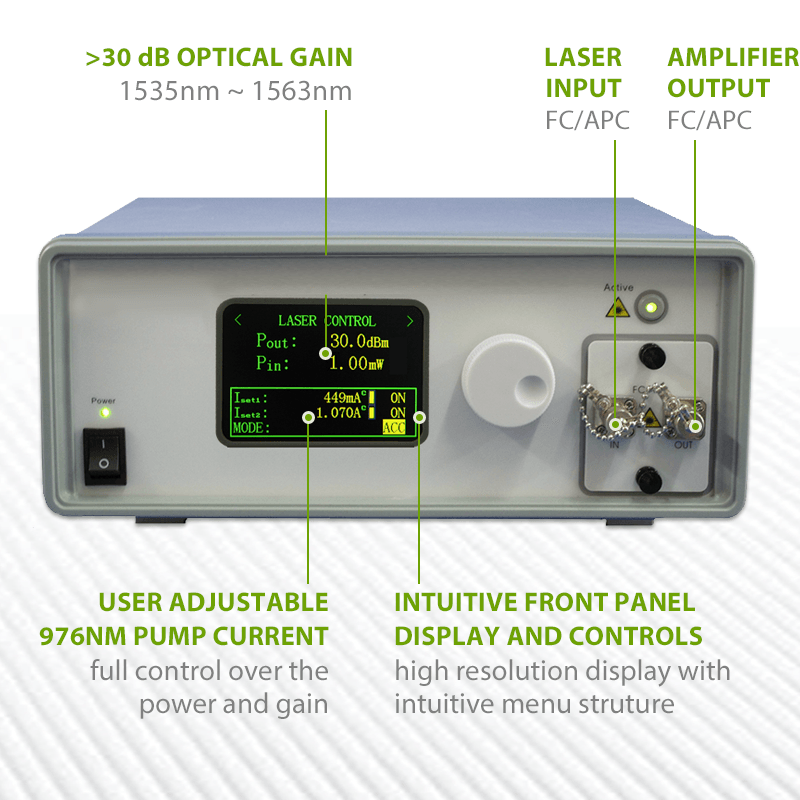

These EDFA instruments are 1550nm range C-band erbium doped fiber amplifiers which offer up to 0.21 Watt of output power at 1 mW input power. They are simple to operate, affordable benchtop instruments for laboratory research or manufacturing test applications. The user has full control over the power and gain through by controlling the internal 976nm pump laser diode current (ACC mode), or by setting the instrument into a gain feedback or power feedback mode. (APC mode).

Flexible User Interface:

The user adjusts EDFA settings via the front panel with an intuitive menu and control knob. Settings can adjusted by RS232 interface. These units come with RS232 in the standard product offering, and an ethernet interface can be ordered as an option. LabVIEW based control software is available and ships free of charge.

Extensive Integrated Amplifier Protection Features:

These high power EDFA's offer an extensive array of protection features. Integrated protection features are designed to protect the amplifier from user induced damage as well as protect the user from harm. They offer an inputsignal detection circuit which automatically shuts down the current to the internal 976nm laser diode pumps if the input signal goes to zero. They also offer current and voltage limits for the pump lasers as well as (TEC) over-temperature shut-down. Both functions protect the internal pump sources. The chassis is equipped with a BNC interlock to allow the user to set conditional shut-down conditions for the amplifier.

EDFA Utilizes Telcordia Qualified High Reliability Components:

These EDFA's utilize high power and high reliability Telcordia qualified 976nm pump lasers as well as Telcordia qualified combiners. The principal of operation is that laser light from the pump lasers excite the erbium ions embedded in the fiber from their ground state to achieve the resultant high excitation levels, and the commensurate high gain levels of up to 30 dB. Because they are polarization maintaining amplifiers, they amplify the light polarized along the slow axis of the fiber. Each high power EDFA unit has integrated isolators for the input and the output. Careful attention to component selection and circuit board design allow these 1550nm range EDFA's to produce high gain at a low noise level. Noise levels of < 5 dB with a very flat gain profile over the C-Band make these instruments ideal for many applications.
