Single Frequency Fiber Laser Module, 1530nm - 1572nm; Ultra-Narrow Line Width

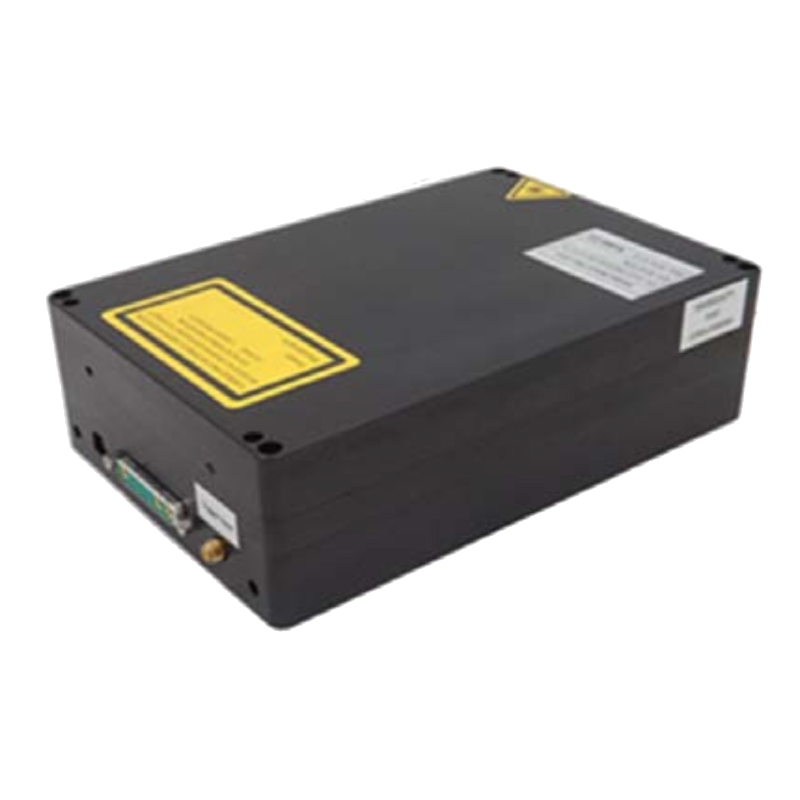

  • 1550nm Ultra-Narrow Line Width Fiber Laser Module

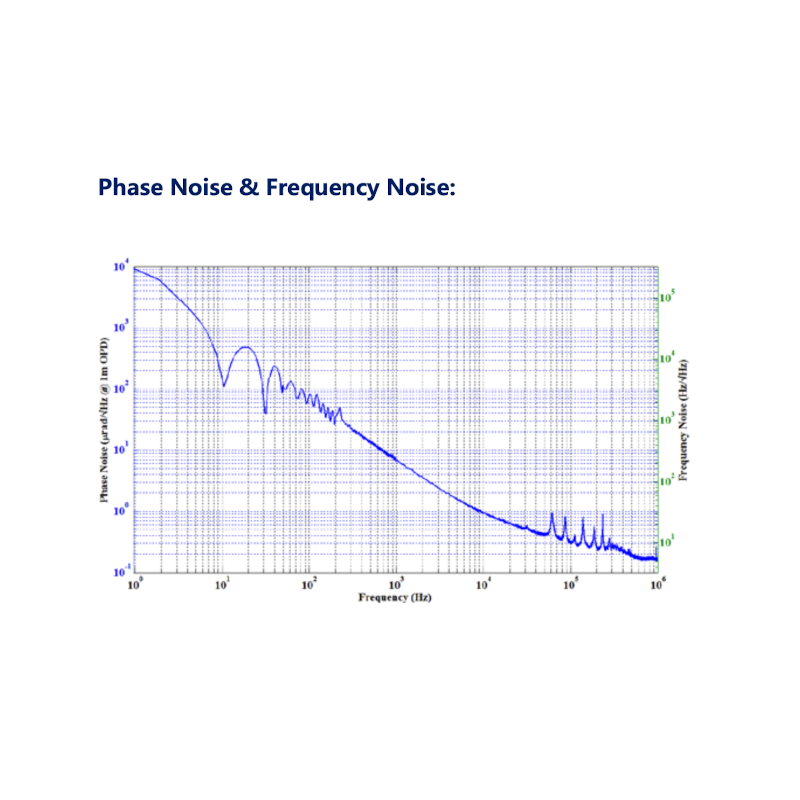

  • 1550nm Fiber Laser Phase Noise

Request Quote   Ships: Request Quote for Price and Lead Time | Model RLS / CKSF-D-ER-M

Key Features
  • Wavelength Range: 1530nm - 1572nm
  • 1 kHz Ultra Narrow Line Width
  • Very Low Phase Noise
  • User Adjustable Output Power

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL RLS / CKSF-D-ER-M
PRICE Request Price
Specifications
  • Operating Wavelengths: 1530 nm - 1572 nm fixed; others available
  • Output Power: 5 mW – 100 mW
  • Spectral Width: < 1 kHz
  • Output Power Stability: 0.5 % (typ)
General Specifications
  • Output Fiber: Panda PM1550, FC/APC
  • Power Supply: 12 VDC
  • Size: 145 mm x 100 mm x 25 mm

Product Overview:

Fiber Laser Module Overview

This fiber laser module is a low-noise single frequency fiber laser based on Distributed Feedback Bragg Grating (DFB) technology. It features unique technology to provide a stable single- frequency laser output with single longitudinal mode, linear polarization, and narrow line width. This laser module has very low phase and frequency noise and low relative intensity noise (RIN). The module uses unique packaging technology to ensure low-noise DFB single frequency fiber laser output with excellent wavelength stability.
