Polarization Extinction Ratio Meter

  • polarization extinction ratio meter

Request Quote
sku / item#: RLS / PER-M500
ships: Request Quote for Price and Lead Time

Key Features
  • Up to 50dB Max PER
  • 1,2,4, or Multiple Channels for Simultaneous Measurement
  • Interchangeable interface FC/SC/LC
  • Three Wavelength Ranges Availlable: 840-950nm / 960-1160nm, 1260-1630nm
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / PER-M500
PRICE Request Price
General Specifications
  • Wavelength Range: 840~950/960~1160nm, 1260~1630nm
  • Maximum Input Power: +5 dBm / +20 dBm
  • PER Range: up to 50 dB Depending on Wavelength and Power
  • Accuracy of Polarization Angle: < ±0.45°
  • Connector Type: FC/PC (also support SC/LC interface)
  • Dimensions: 2U x 235 mm x 300 mm
  • Refer to Datasheet for Additional Specifications

Product Overview:

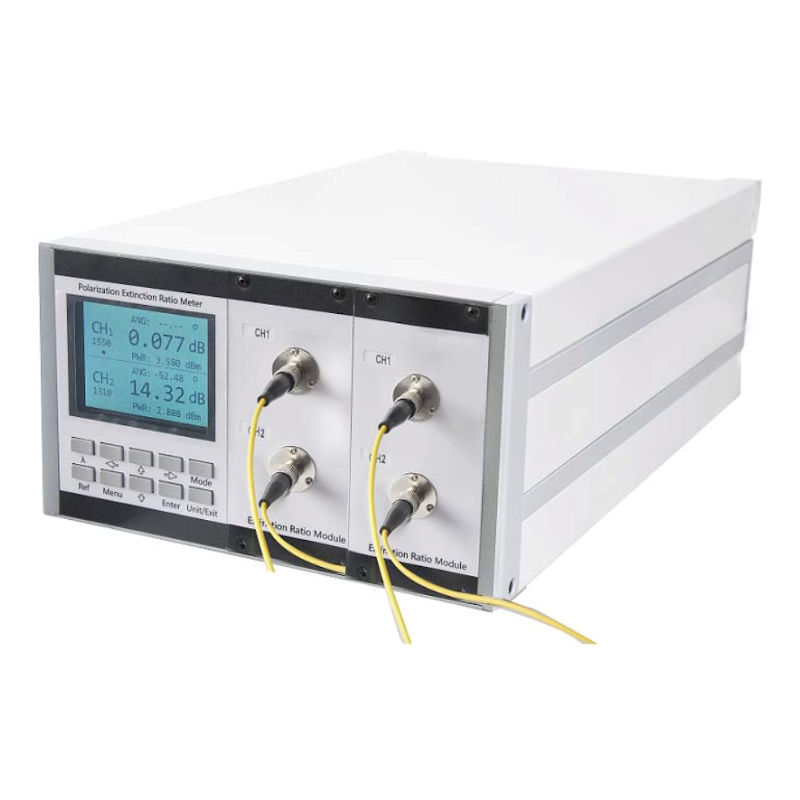

Benchtop PER Meter

This Polarization Extinction Ratio Meter is used to measure the polarization extinction ratio (PER) of polarization-maintaining devices, the degree of polarization of light sources, the extinction ratio of polarization-maintaining fibers, and other polarization-maintaining devices. It is a new generation of precision optical measuring instrument developed by Techwin with many years' experience in optical device testing. The operating system has powerful functions and is easy to operate from the front panel or via the RS232 interface.
