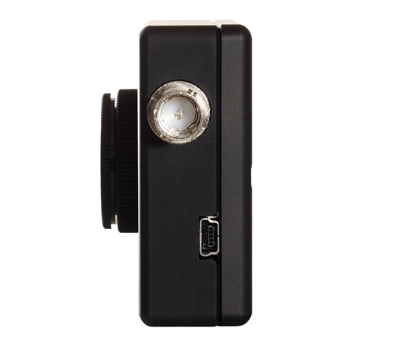

Laser Beam Profiler 355nm-1150nm

Request Quote
sku / item#: WCD-UCD12
ships: 2-3 Days

Key Features
  • 355 to 1150 nm, standard CCD detector
  • 1.4 Mpixel‚ 1360 x 1024 pixels, 6.3 x 4.8 mm active area
  • 4.65 µm pixels
  • Port-powered USB 2.0; flexible 3 m cable, no power brick
  • 14-bit ADC, 4 MB image buffer & on-board microprocessor
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL WCD-UCD12
PRICE Request Price
Wavelength
  • Standard camera: 355 to 1150 nm
  • 1350 nm capable: 355 to 1350 nm
  • NIR capable: 1480 to 1605 nm
Camera
  • Pixel Count‚ H x V: 1.3 Mpixel‚ 1280 x 1024
  • Image Area: 6.3 mm x 4.8 mm
  • Pixel Dimension: 4.65 x 4.65 µm
  • Min. Beam (10 pixels): ~47 µm
  • Shutter Type: Synchronous
  • Max Frame Rate: ~10 Hz
Applications
  • CW and pulsed laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M² measurement with available M2DU stage

Product Overview:

Laser beam profiling camera from DataRay covers the wavelength range of 355nm to 1150nm and uses a CCD camera. Standard USB port and doesn't require an external power supply. 14 bit ADC with 4MB image buffer.
