DPD80 USB Photodetector 1550nm

Request Quote
sku / item#: DPD801550 nm
ships: 2- 3 Weeks

Key Features
  • Internal 14-bit ADC sampling at 80 MegaSamples / second
  • USB 3.1 used for data streaming and device power.
  • Included software displays time & frequency domains in real-time, eliminating the need for an oscilloscope or spectrum analyzer.
  • Ultra low noise floor of 1.5 pW / √Hz.
  • Libraries provided for C, Python and MATLAB

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL DPD801550 nm
PRICE Request Price
Specifications
  • Minimum NEP: 1.5 pW / √Hz.
  • Saturation Power: 35 - 140 uW (depends on gain mode)
  • Spectral Sensitivity: 950 nm - 1650 nm
  • Data & Power Connector: USB 3.1 Type C
  • Coupling: Free Space or Fiber Coupled
  • Analog Output Bandwidth: 100 MHz

Product Overview:

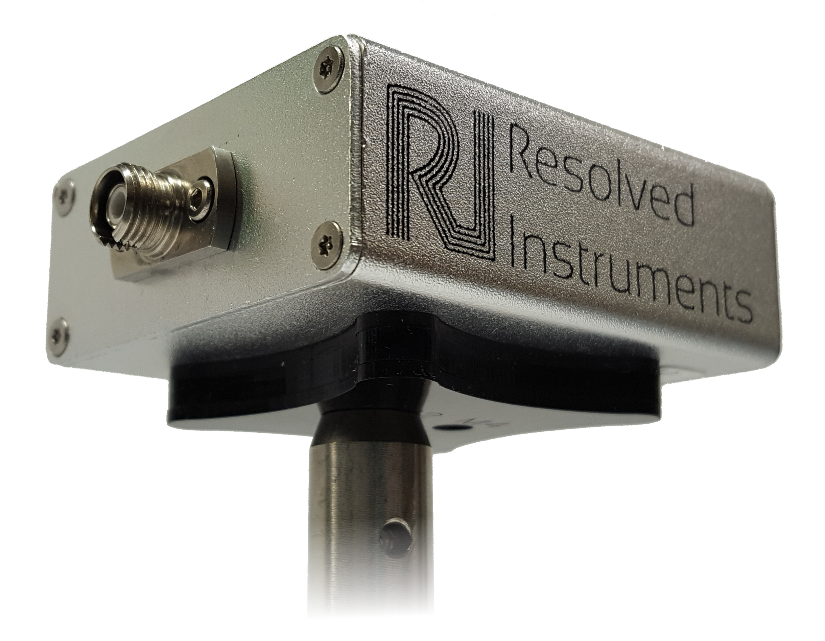

Measure optical signals quicker, easier, and with less noise with Resolved Instruments’ DPD80 USB photodetector. It features an integrated, low-noise 14-bit 80 MS/s analog-to-digital converter to enable streaming of the signal in real-time to a PC over USB-3. Included software allows researchers to acquire real-time data in either the time or frequency domain, eliminating the need for separate amplifiers, analog to digital converters, oscilloscopes, and spectrum analyzers. Using the latest in amplifier technology the DPD80 exhibits ultra-low noise floors and with an analog RF output port can provide a drop-in upgrade to existing experiments.

For more information about the DPD80 and our other products, please visit https://resolvedinstruments.com .
