High Resolution Optical Spectrum Analyzer (OSA); 2.5 Picometer Resolution; Scanning Range 1528.5nm – 1567.5nm

$10975.00
sku / item#: ID-OSA-MPD-01
ships: Request a Quote for Current Ship Date

Key Features
  • 2.5 Picometer Spectral Sampling Resolution
  • 1528.5 nm - 1567.5 nm Wavelength Scan Range
  • 2 Hertz Scan Rate
  • Interfaces: USB, Ethernet / Includes GUI Control Software App
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL ID-OSA-MPD-01
PRICE $10975.00

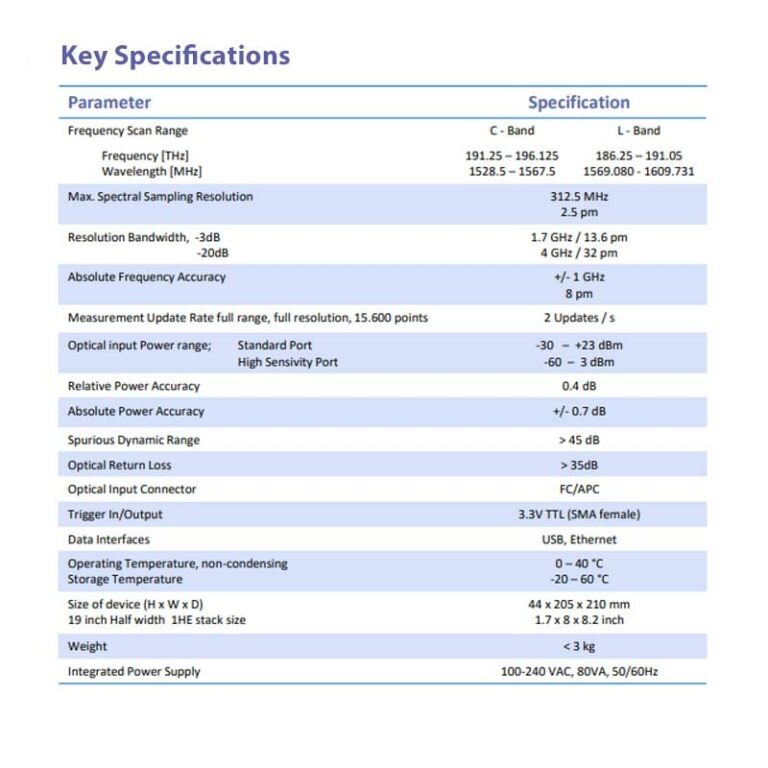

General Specifications
  • λ Range: 1528.5 – 1567.5 nm (191.25 – 196.125 THz)
  • Spectral Sampling Resolution (max): 2.5 picometers
  • Absolute Frequency Accuracy: 8 picometers, +/- 1 GHz
  • Optical Input Connector: FC/APC
  • More than 50 dB Dynamic Range
  • External Trigger Interfaces
  • 2 Hertz Scan Rate
  • USB and Ethernet, Intuitive GUI Software Provided
Applications
  • High-Resolution Spectral Analysis
  • DWDM Transport Testing
  • OSNR Characterization
  • Modulated Signal Characterization
  • Tranceiver Testing
  • Network Monitoring

Product Overview:

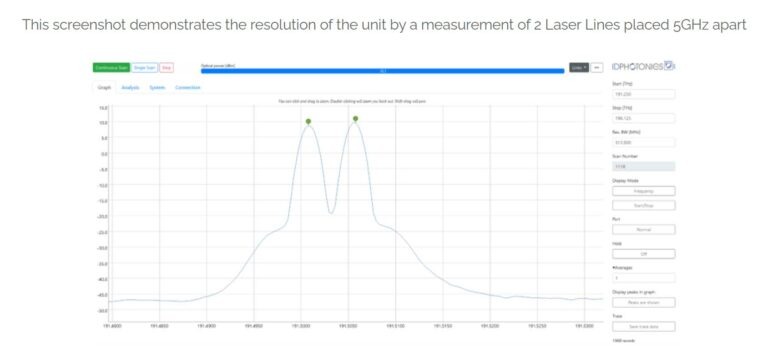

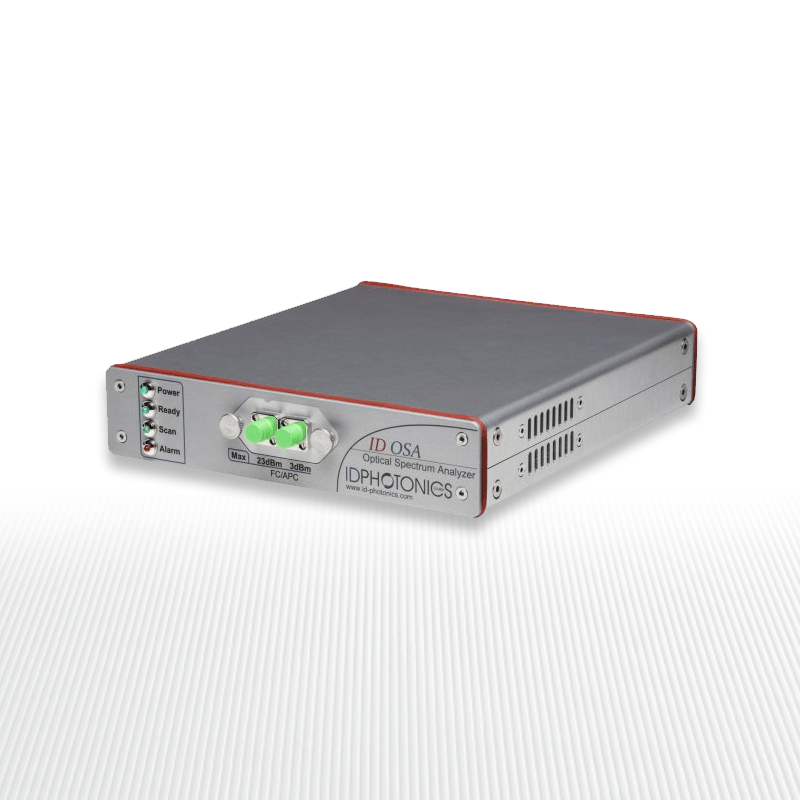

High Resolution OSA for Laboratory & Manufacturing Test Applications The ID OSA is a versatile Optical Spectrum Analyzer for laboratory R&D and manufacturing test applications. These high resolution OSA's offer picometer class spectral resolution across the C-Band wavelength range. They are a cost effective solution for high resolution spectral monitoring applications. Two input ports with different sensitivity boost the available power range beyond 90dB allowing accurate analysis of both low power signals as well as high power DWDM bands. The unit is compact and rugged as it contains no moving parts and does not require recalibration. The optical input connector plate can be removed by the user allowing the user clean the input port connectors effectively. It is controlled via USB or Ethernet interface and comes with a GUI interface and spectral plot screens OSA User Interface In addition to standard USB and ethernet interfaces with included GUI software, the ID OSA also offers an integrated web server application that allows the user to control and monitor the instrument via any Browser based device such as a smartphone or tablet without software installation. Key Features:

  • Cost Effective - much more affordable than a traditional OSA
  • Fast - scans the entire C-band at full resolution in 0.5 seconds
  • Rugged - no calibration required, and no moving optical parts
  • Compact - 1/2 size 1HE 19 Inch Stacking
