Home  >  Wavelength Meters  >  Keysight Technologies  >  86120B


AGILENT Wavelength Meter

Request Quote
sku / item#: 86120B
ships: 5 to 7 days

Key Features
  • Absolute accuracy: +/- 0.005 nm (@1550nm)
  • Display resolution: 0.001 nm

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL 86120B
PRICE Request Price
key specifications
  • Wavelength Range: 700 to 1650 nm (182 to 428 THz)
  • Absolute accuracy: +/- 0.005 nm
  • Differential accuracy: ± 2 ppm
  • Minimum resolvable separation: 20 GHz
  • Display resolution: 0.001 nm
  • Fast update mode: 0.01 nm
  • Units: nm (vacuum or standard air), cm –1, THz
  • Power Calibration accuracy: 0.5 dB
  • Power Flatness: ± 0.2 dB (1200 to 1600 nm)

Product Overview:

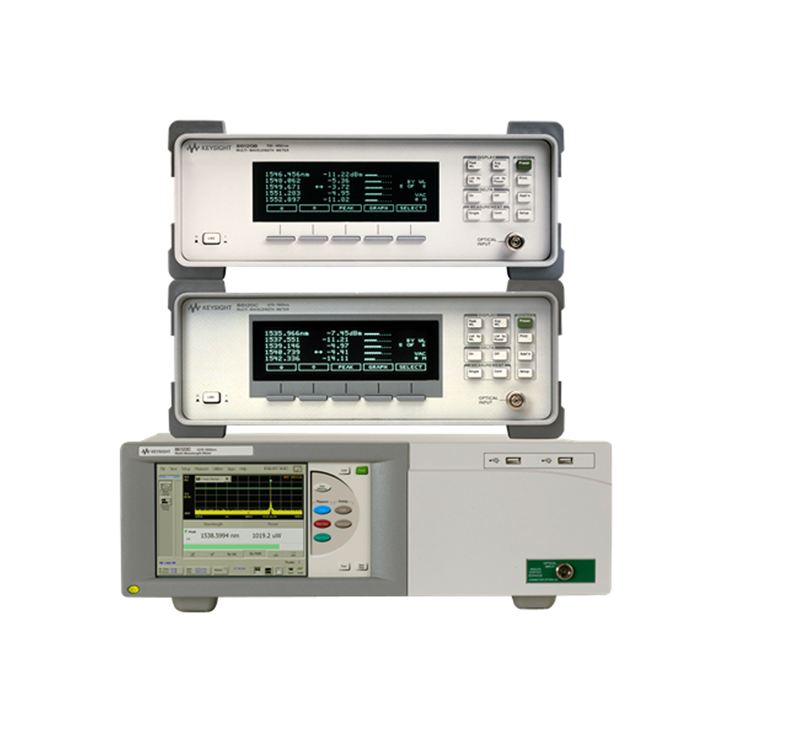

These Agilent multi-wavelength meters are Michelson interferometer based instruments that measure wavelength and optical power of laser light over a specified wavelength range. Simultaneous measurements of multiple laser lines are performed allowing measurements of DWDM signals and multiple lines of Fabry-Perot lasers. Additional features of the wavemeter include Power offset, power bars (on or off), user adjustable peak excursion and peak threshold, user adjustable start and stop wavelength limits, graphical display, save and recall instrument states. Wavelength measurement from 700nm-1650nm with accuracy of +/- 3ppm. – 10 GHz for the 86120B, – 5 GHz for the 86120C and – 2.5 GHz for the 86122C
