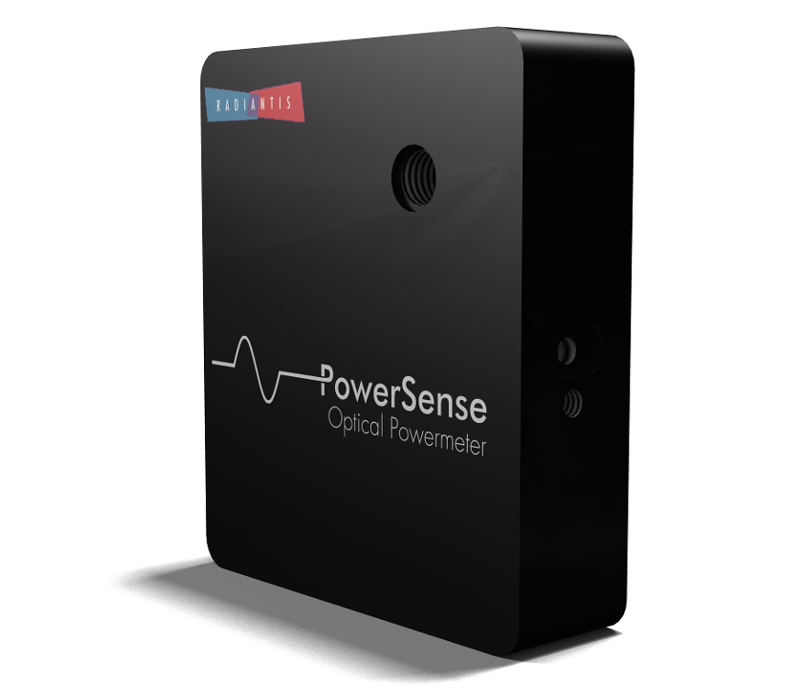

Optical Power Meter and Sensor

Request Quote
sku / item#: RAOPM0001
ships: Contact

Key Features
  • NIST traceable <2% measurement uncertainty
  • Wide Dynamic Range (1nW-20W)

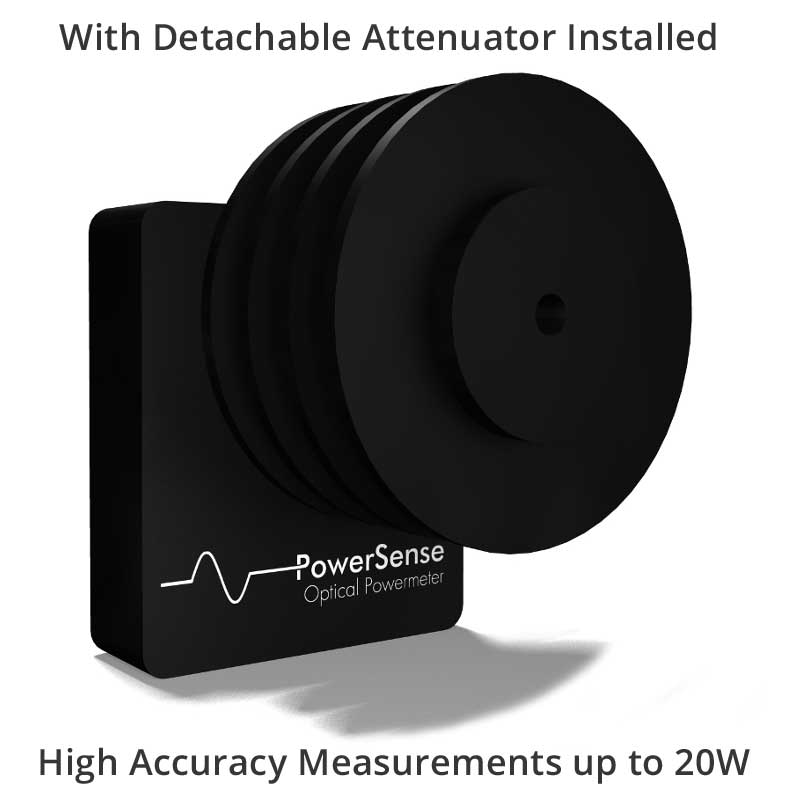

  • Simple to Use Detachable Attenuator for 1W to 20W Measurements
  • Integrated Detector
  • USB Connection

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RAOPM0001
PRICE Request Price
POWER MEASUREMENT
  • Maximum Power:1mW
  • Maximum Power with Attenuator: 20 Watts
  • Accuracy: <2% NIST Traceable
  • Wavelength Range: 200nm-1100nm
  • Entrance Aperture: 8mm
  • Measurement Speed: 100 readings / second
  • Detector Type: Low-Noise Photodiode
Computer Interface
  • USB 2.0
  • 100 readings/second

Product Overview:

An extremely compact, fully-integrated optical power meter, incorporating both the detector head and power meter under the same enclosure. The widest range of power levels (across 1 nW to 20 W) is measured with a single detector head. This eliminates the need to acquire several heads for different power ranges, improving usability and reducing cost.
