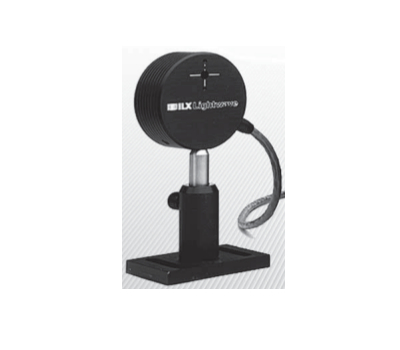

InGaAs Optical Power Sensor from ILX Lightwave

Request Quote
sku / item#: ILXPW0003
ships: 2 Weeks

Key Features
  • Integrating sphere based measurement with InGaAs Photodiode
  • Measures Power and Wavelength
  • Power Range: 1μW-1W
  • Wavelength Range: 950nm-1650nm

Price and Delivery Quote

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE Request Price
Power Measurement
  • Power Range:-40 to +30dBm
  • Damage Threshold: +42dBm
  • Accuracy: 5.0%
  • Entrance Aperture: 6mm
Wavelength Measurement
  • Wavelength Range: 950nm-1650nm
  • Accuracy: +/-1.0nm
Key Features
  • NIST traceable measurements
  • Integrating sphere based measurements
  • Temperature controlled InGaAs photodetectors
  • Free-space and fiber coupled measurements

Product Overview:

InGaAs optical power sensor measures both optical power and wavelength. Optical power range is 1μW-1W with NIST traceable accuracy of +/-5.0%. Integrating sphere based measurement with temperature controlled InGaAs photodetector. Wavelength measurement from 950nm-1650nm with accuracy of +/-1.0nm. Compatible with various fiber optic connectors include FC, SC, and bare fiber.
