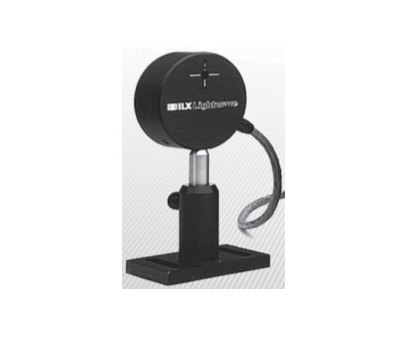

Optical Power Sensor from ILX Lightwave

Request Quote
sku / item#: ILXPW0002
ships: 2 Weeks

Key Features
  • Integrating sphere based measurement with Si Photodiode
  • Measures Power and Wavelength
  • Power Range: 1μW-1W
  • Wavelength Range: 450nm-1100nm
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL ILXPW0002
PRICE Request Price
Power Measurement
  • Power Range:-40 to +30dBm
  • Damage Threshold: +42dBm
  • Accuracy: 3.5%
  • Entrance Aperture: 6mm
Wavelength Measurement
  • Wavelength Range: 450nm-1100nm
  • Accuracy: +/-1.0nm
Key Features
  • NIST traceable measurements
  • Integrating sphere based measurements
  • Temperature controlled silicon photodetectors
  • Free-space and fiber coupled measurements

Product Overview:

ILX Lightwave optical power sensor also has unique ability to measure the wavelength. Integrating sphere based with temperature controlled Si Photodiodes provides NIST traceable accuracy of 3.5%. Measurement head is compatible with a wide range of fiber optic connectors include FC, SC, and bare fiber. Measures power over the range of 1μW-1W and wavelength 450nm-1100nm with accuracy of +/-1.0nm.
