Optical Power Sensor 1μW-1W

Request Quote
sku / item#: ILXPW0001
ships: 2 Weeks

Key Features
  • Power Range: -40 to +30 dBm
  • Wavelength Range: 400 to 1100 nm
  • Detector Material: Silicon with Integrating Sphere
  • NIST Calibration Uncertainty: +/- 5.0 %

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the product Engineer

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL ILXPW0001
PRICE Request Price
POWER MEASUREMENT
  • Wavelength Range: 400 to 1100nm
  • Power Range: -40 to +30dBm
  • Damage Threshold: +42dBm
  • Accuracy: +/-5.0%
  • Entrance Aperture: 6mm
  • Sensor Type: Silicon
  • Noise: 1nW p-p (typical)

Product Overview:

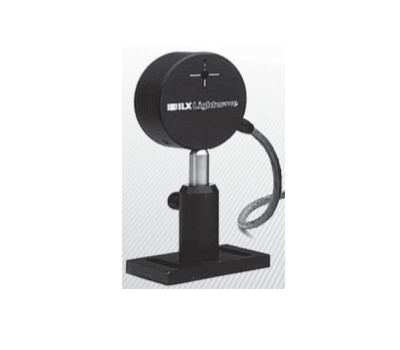

Optical power sensor with small form factor and built in integrating sphere. Integrating spheres simplify optical power measurements of laser diodes and LEDs by eliminating measurement problems related to detector saturation, alignment beam profile, polarization, and back reflection. Integrating spheres are inherently insensitive to beam profiles, providing you with more flexibility in laser type and launch conditions. Optical power sensor with wavelength range of 450nm to 1100nm and power measurement from 1μW-1W.
