Si Optical Power and Detector System

Request Quote
sku / item#: AROPMS0003
ships: 2-3 Weeks

Key Features
  • Germanium: 190nm to 1100nm
  • Up to 4mW
  • USB Interface
  • Optical Power Meter + Detector + Filters + Adapters
  • Low Cost, Easy to Use

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL AROPMS0003
PRICE Request Price
Si Detector
  • Wavelength Range: 190 nm to 1100 nm
  • Power Range: 1nW to 4 mW
  • Accuracy: +/- 6%
  • Reproducibility: +/- 3%
  • Linearity: +/- 0.2 dB
Optical Power Meter
  • USB powered and controlled

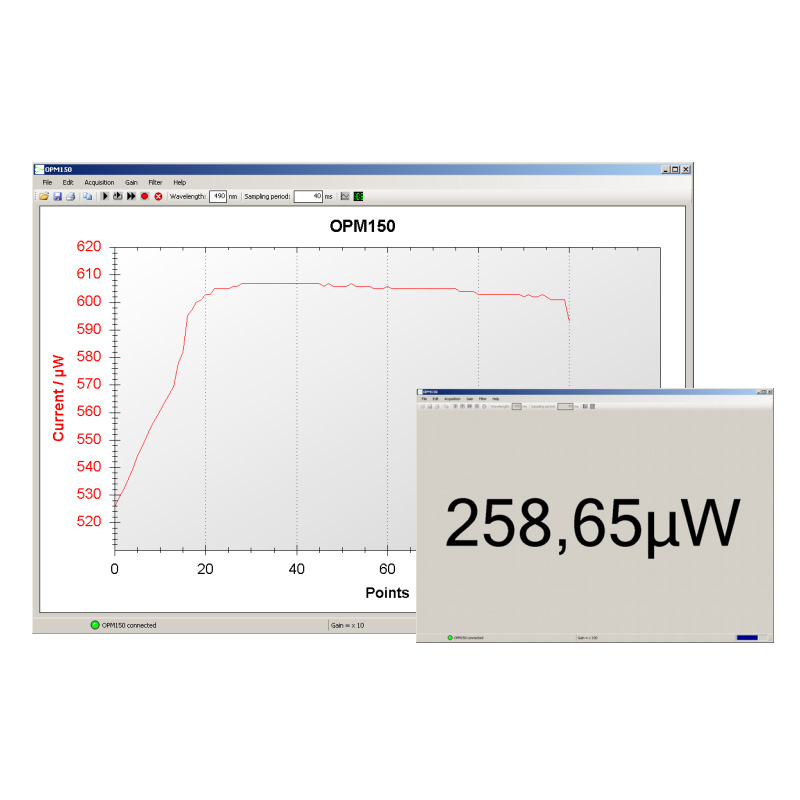

  • 30 Hz update rate with GUI, 1500 Hz as data logger
  • 5 gain ranges: 1, 10, 100, 1000, 10000
DIMENSIONS
  • Base module: 60 x 81 x 36 mm (B x L x H)
  • Head: 35 x 30 mm
Accessories
  • Calibrated filters
  • Adapters for standard optomechanic systems
  • Reducing apertures
  • Fiber receptacles
  • Carrying case

Product Overview:

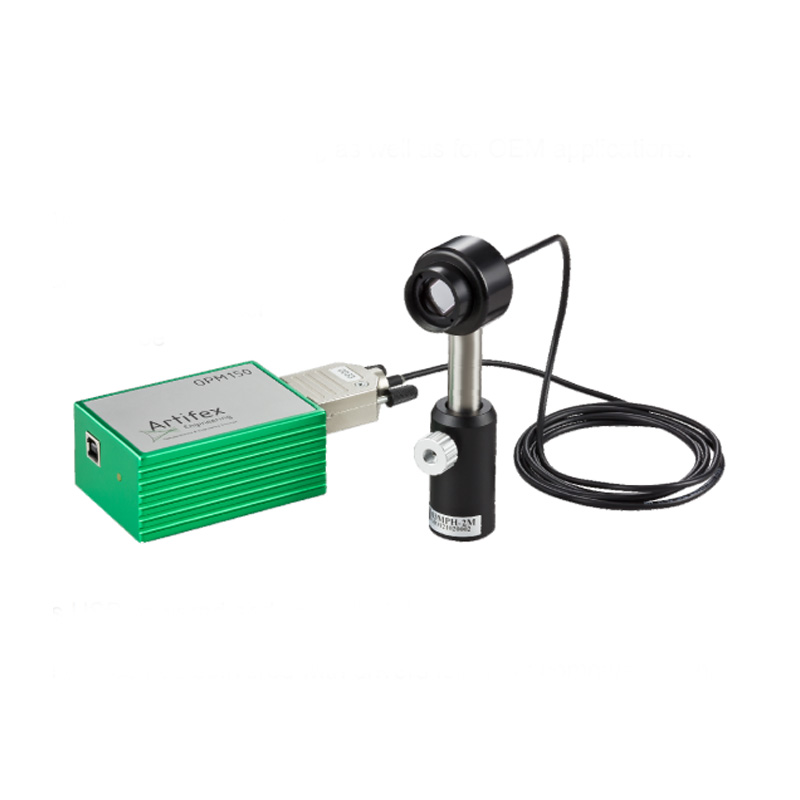

Artifex Engineering optical measurement system. Includes high accuracy, compact Si detector with USB optical power meter. Designed for easy integration into automated test setups in the laboratory or OEM integration into systems. With use of optional integrating sphere power measurement of 2kW lasers can be achieved. Laser measurement wavelength range of 190 nm to 1100nm which includes popular wavelengths of 405 nm and 532 nm.
