Home  >  Laser Beam Profilers  >  DataRay, Inc.  >  WCDFIR

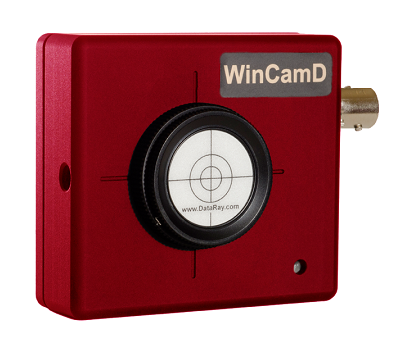

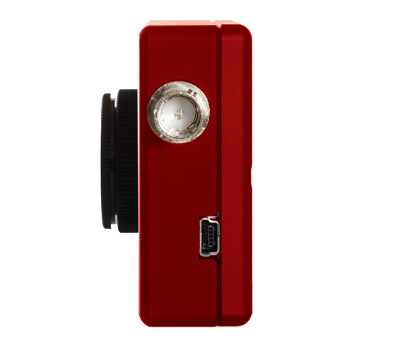

Laser Beam Profiler, 8µm-14µm

Request Quote
sku / item#: WCDFIR
ships: Contact

Key Features
  • 8 to 14 µm Si microbolometer
  • 640 x 480, 13.4 x 10.8 mm active area
  • 17 µm pixels
  • Port-powered USB 2.0;, no power brick
  • 14-bit ADC
  • 10 ms time constant
  • No chopper – measure pulsed or CW beams
  • Room temperature – no cooling required

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL WCDFIR
PRICE Request Price
Features
  • Wavelength: 8 to 14 µm
  • Pixel Count, H x V: 307 kPixel, 640 x 480
  • Image Area: 10.88 x 8.16 mm
  • Pixel Dimension: 17 x 17 µm
  • Min. Beam (10 pixels) : ~170 µm
  • Shutter Type: Rolling
  • Max. Full Frame Rate: 10 Hz
  • ADC: 14-bit
Applications
  • MIR/FIR/ CO2 laser profiling
  • Field servicing of CO2 lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging

Product Overview:

Compact, Portable, Port-Powered, USB 2.0 10.6 µm Beam Profiling from DataRay. Typical applications include: MIR/FIR/ CO2 laser profiling, Field servicing of CO2 lasers and laser-based systems, Optical assembly & instrument alignment, and Beam wander & logging. Measure CW and Pulsed laser sources.
