Home  >  Laser Beam Profilers  >  DataRay, Inc.  >  WinCamD



Laser Beam Profiler, 190nm-1650nm

Request Quote
sku / item#: WinCamD
ships: Contact

Key Features
  • 355nm-1150 nm (CMOS)
  • With options 190nm-1605nm
  • 4.2 MPixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area
  • 5.5 µm pixels
  • 60 fps @ 512 x 512 to 12 fps @ 2048 x 2048
  • Port-powered USB 3.0; no power brick

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL WinCamD
PRICE Request Price

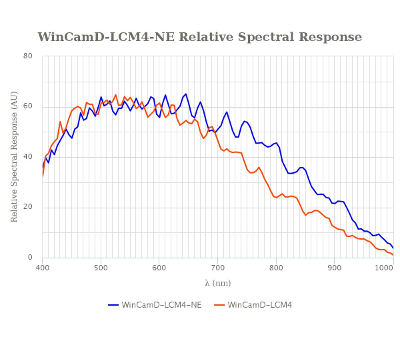

Wavelength
  • Standard camera: 355 to 1150 nm
  • 1350 nm capable: 355 to 1350 nm
  • NIR capable: 1480 to 1605 nm
  • UV capable: 190 to 1150 nm
Camera
  • Pixel Count‚ H x V: 4.2 MPixel‚ 2048 x 2048
  • Optical Format 1"
  • Image Area: 11.3 x 11.3 mm
  • Pixel Dimension: 5.5 x 5.5 µm
  • Min. Beam (10 pixels) : ~55 µm
  • Shutter Type: Global
  • Max Frame Rate: 60 Hz
Applications
  • CW & pulsed laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M2 Measurements

Product Overview:

High speed USB 3.0 with 11.3mm active for measurement of CW and pulse laser systems. CMOS based cameras measure from 355nm to 1150nm and options provide wavelength measurement from 190nm to 1650nm. Large 4.2M pixel camera with 12 bit A/D.
