Home  >  Laser Beam Profilers  >  DataRay, Inc.  >  BC-HR



Laser Beam Profiler, 190nm-1100nm

Request Quote
sku / item#: BC-HR
ships: In Stock

Key Features
  • 355 to 1150 nm, standard CMOS detector
  • 1.3 Mpixel‚ 1280 x 1024 pixels, 6.6 x 5.3 mm active area
  • 5.2 µm pixels
  • Port-powered USB 2.0; flexible 3 m cable, no power brick
  • 10-bit ADC, 4 MB image buffer & on-board microprocessor
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL BC-HR
PRICE Request Price
Camera
  • Pixel Count‚ H x V: 1.3 Mpixel‚ 1280 x 1024
  • Optical Format: 1/2 inch
  • Image Area: 6.6 mm x 5.3 mm
  • Pixel Dimension: 5.2 x 5.2 µm
  • Min. Beam (10 pixels) : ~55 µm
  • Shutter Type: Global
  • Max Frame Rate: 60 Hz
Wavelength
  • Standard camera: 355 to 1150 nm
  • 1350 nm capable: 355 to 1350 nm
  • NIR capable: 1480 to 1605 nm
  • UV capable: 190 to 1150 nm
Applications
  • CW laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M² measurement with available M2DU stage

Product Overview:

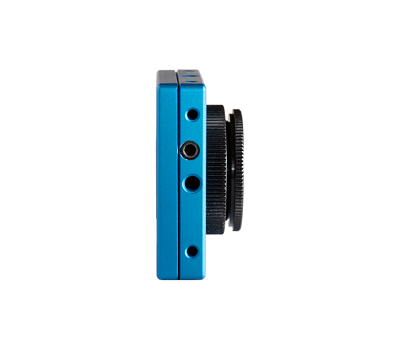

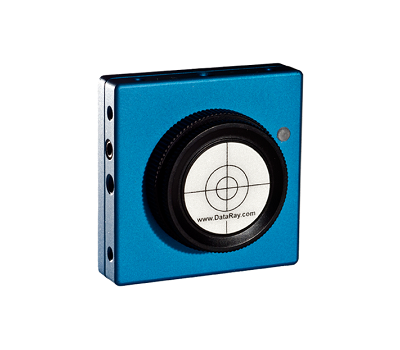

0.65” Thin Portable, Port-Powered, USB 2.0, Laser Beam Profiler from DataRay. Typical applications include: CW laser profiling, Field servicing of lasers and laser-based systems, Optical assembly & instrument alignment, and Beam wander & logging.
