Germanium Optical Power Detector System

  • Optical Power Meter from Artifex Engineering

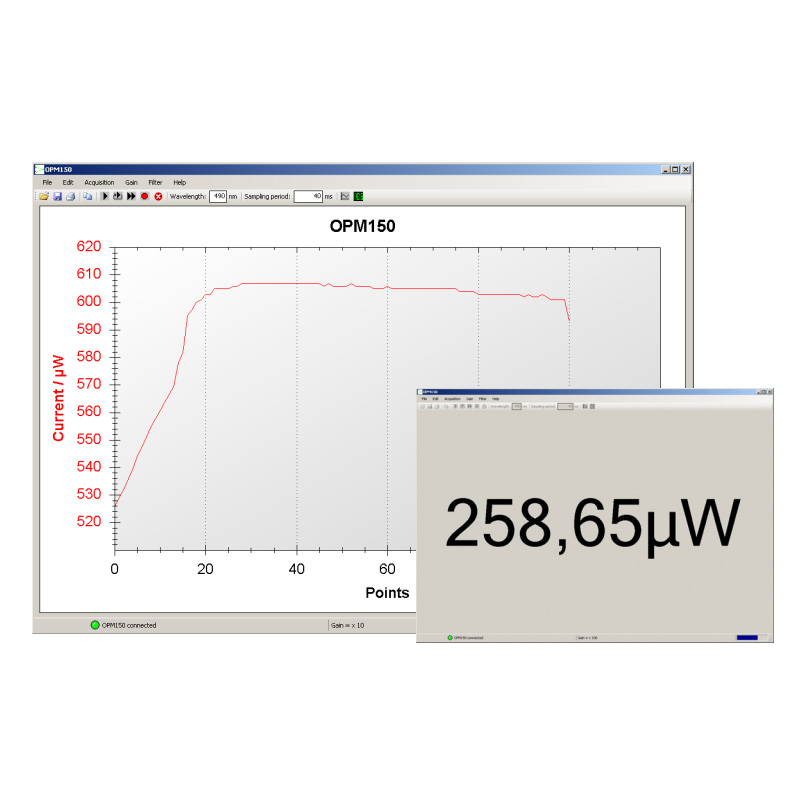

  • Optical Power Meter Software - Artifex Engineering

Request Quote
sku / item#: AROPMS0002
ships: 2-3 Weeks

Key Features
  • Germanium: 800nm to 1550nm
  • Up to 8mW
  • USB Interface
  • Optical Power Meter + Detector + Filters + Adapters
  • Low Cost, Easy to Use

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL AROPMS0002
PRICE Request Price
Ge Detector
  • Wavelength Range: 800 nm to 1550 nm
  • Power Range: 0.5 nW to 8 mW
  • Accuracy: +/- 6%
  • Reproducibility: +/- 3%
  • Linearity: +/- 0.2 dB
Optical Power Meter
  • USB powered and controlled
  • 30 Hz update rate with GUI, 1500 Hz as data logger
  • 5 gain ranges: 1, 10, 100, 1000, 10000
DIMENSIONS
  • Base module: 60 x 81 x 36 mm (B x L x H)
  • Head: 35 x 30 mm
Accessories
  • Calibrated filters
  • Adapters for standard optomechanic systems
  • Reducing apertures
  • Fiber receptacles
  • Carrying case

Product Overview:

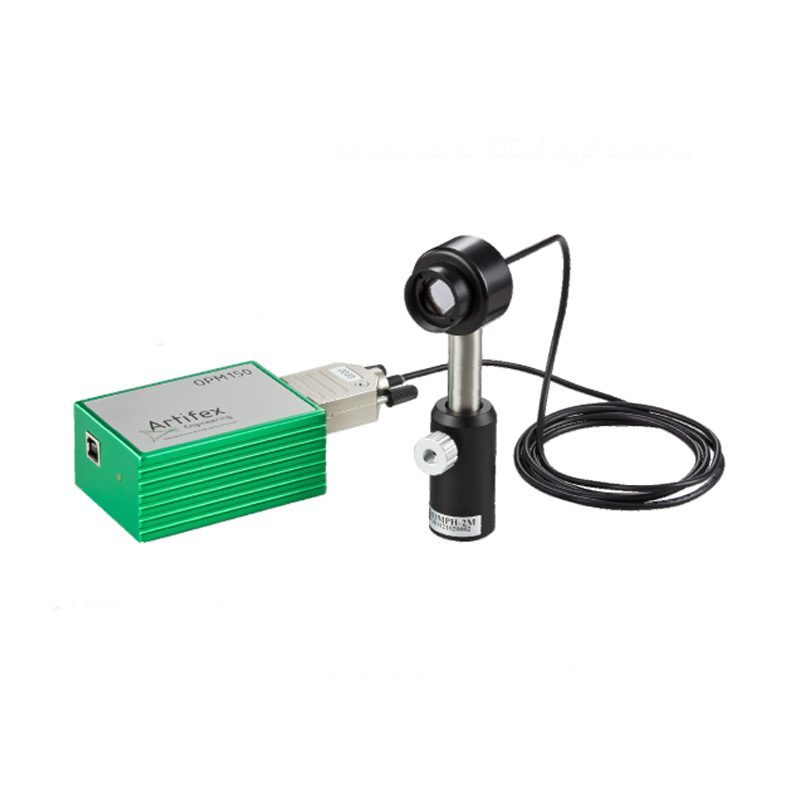

Optical power meter with GE detector from Artifex Engineering. Designed for easy OEM integration or use in the laser laboratory. Easy to use GUI interface. Ge detector can measure laser signals down to 0.5nW and up to 8mW. Output powers up to 2kW can be measured with attenuators and integrating spheres. Wavelength range of the Ge detector is 800nm to 1550nm.
