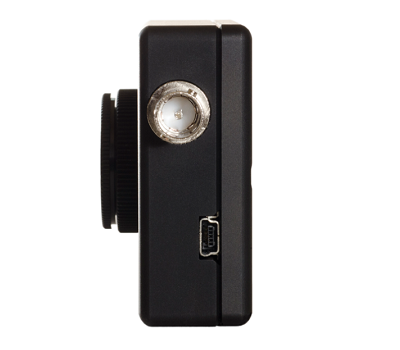

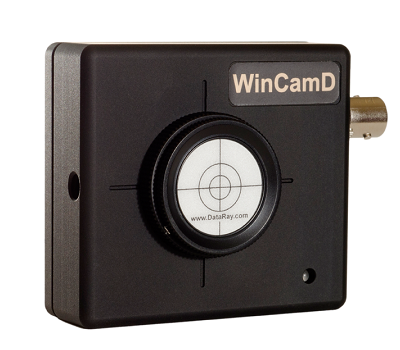

CMOS Beam Imaging Camera, 355nm-1150nm

Request Quote
sku / item#: WCD-XHR
ships: Request

Key Features
  • 355 nm to 1150 nm, standard CMOS detector
  • 3.1 Mpixel‚ 2048 x 1536 pixels, 6.5 x 4.9 mm active area
  • 3.2 µm pixels
  • Port-powered USB 2.0; flexible 3 m cable, no power brick
  • 10-bit ADC, 4 MB image buffer & on-board microprocessor
  • Field-replaceable image sensors
  • M² option – beam propagation analysis, divergence, focus

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL WCD-XHR
PRICE Request Price
Camera
  • Pixel Count‚ H x V: 3.1 Mpixel‚ 2048 x 1536
  • Image Area: 6.5 x 4.9 mm
  • Pixel Dimension: 3.2 x 3.2 µm
  • Min. Beam (10 pixels): ~32 µm
  • Shutter Type: Rolling
  • Max. Full Frame Rate: ~10 Hz
  • Signal to RMS Noise: 1‚000:1
  • Dynamic Range: 43 dB
  • ADC: 10-bit (1‚024 levels)

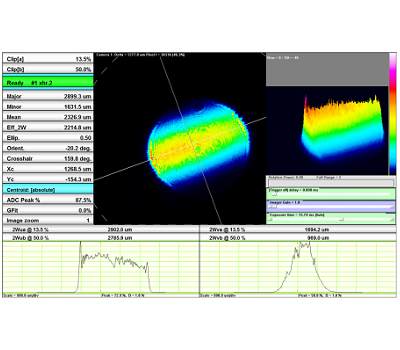

Displayed Profiles
  • Line‚ 2D & 3D plots. Normalized or un-normalized.
  • Linear or Logarithmic‚ Zoom x10
  • 2D‚ 3D in 10‚ 32 or max. colors or grayscale
  • Contoured display at 10 and 32 colors
Beam Diameter
  • Diameter at two user set Clip levels
  • Gaussian & ISO 11146 Second Moment beam diameters
  • Equivalent diameter above a user defined Clip level
  • Equivalent Slit and Knife Edge diameters
Applications
  • CW laser profilingField servicing of lasers and laser-based systemsOptical assembly & instrument alignmentBeam wander & loggingM² measurement with available M2DU stage

Product Overview:

DataRay laser beam profiling camera system with CMOS detector covering a wavelength range of 355nm to 1150nm. High pefromance software is included with the laser beam profiler system for analysis of CW laser.
