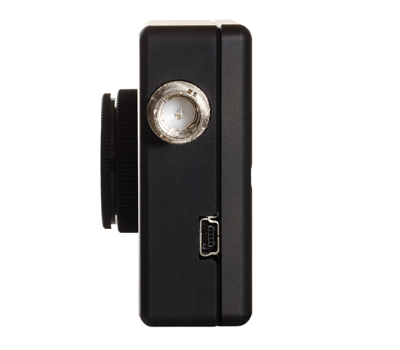

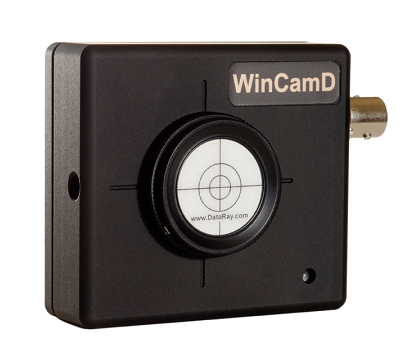

Beam Imaging Camera 190nm-1605nm

Request Quote
sku / item#: WCD-UHR
ships: Request

Key Features
  • Standard CMOS detector
  • 355nm to 1650 nm (model dependent)
  • 1.3 Mpixel‚ 1280 x 1024 pixels, 6.6 x 5.3 mm active area
  • 5.2 µm pixels
  • 10-bit ADC, 4 MB image buffer & on-board microprocessor
  • Port-powered USB 2.0; flexible 3 m cable, no power brick

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL WCD-UHR
PRICE Request Price
Wavelength
  • Standard camera: 355 to 1150 nm
  • 1350 nm capable: 355 to 1350 nm
  • NIR capable: 1480 to 1605 nm
Camera
  • Pixel Count‚ H x V: 1.3 Mpixel‚ 1280 x 1024
  • Image Area: 6.6 x 5.3 mm
  • Pixel Dimension: 5.2 x 5.2 µm
  • Min. Beam (10 pixels): ~52 µm
  • Shutter Type: Rolling
  • Max. Full Frame Rate: ~10 Hz
  • Signal to RMS Noise: 1‚000:1
  • Dynamic Range 43 dB
  • Electronic Shutter: 113 dB (2.10¹¹:1)
  • ADC: 10-bit (1‚024 levels)
Applications
  • CW laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M² measurement with available M2DU stage

Product Overview:

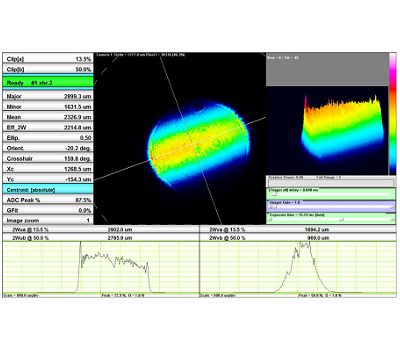

CMOS laser beam profilier from DataRay covering the wavelength range of 355 nm to 1650 nm with 1.3MPixel camera. High performance software for detailed analysis of CW lasers.
