0.1-20μm, 5nW-25mW Optical Power Sensor

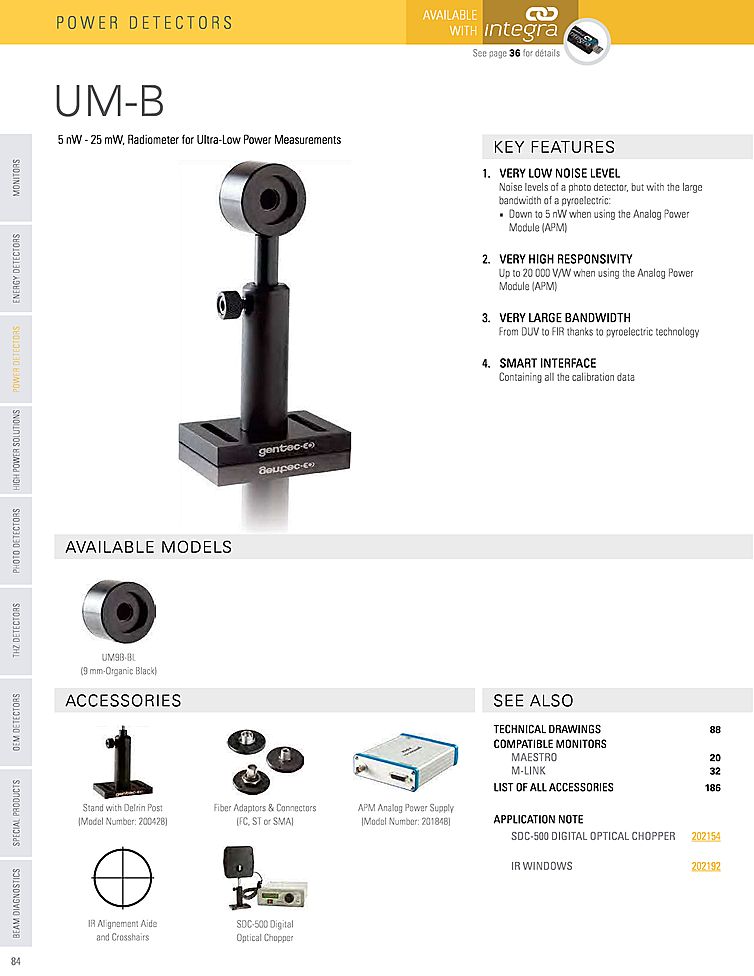

Gentec-EO UM9B-BL
0.1-20μm Spectral Range
5nW-25mW Power Range

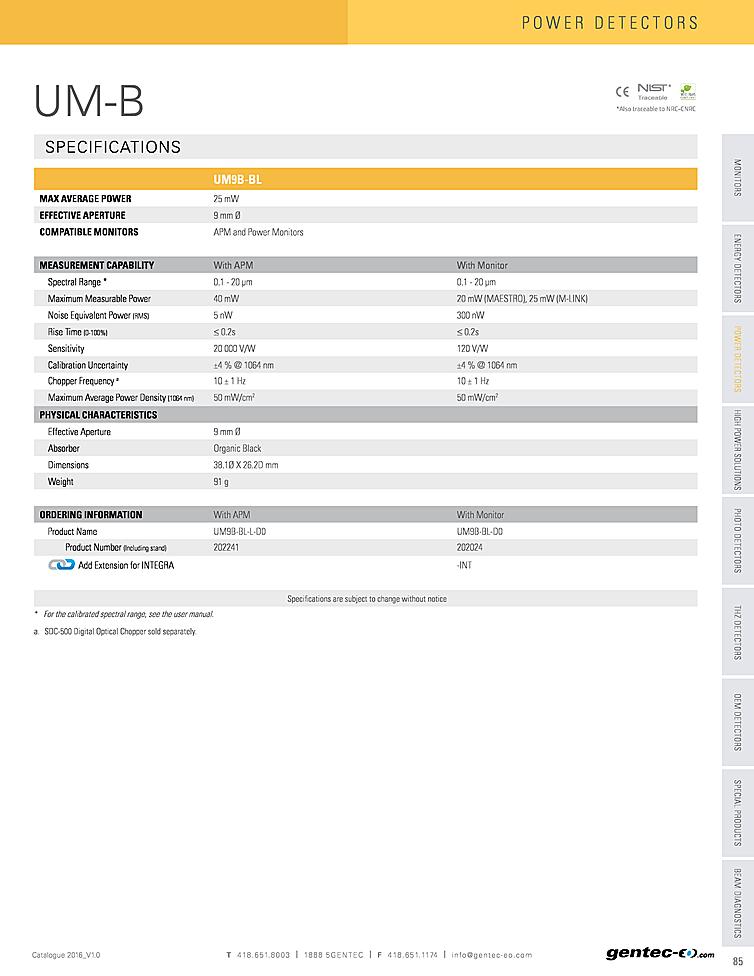

Typical Specifications:
- Max Avg Power: 25 mW
- Effective Aperture: 9 mm
- Spectral Range: 0.1-20 μm
- Max Measurable Power: 40 mW
- Noise Equivalent Power: 5 nW
- Rise Time: < 0.2 s
- Sensitivity: 20,000 V/W
- Calibration Uncertainty: +/- 4%
