200-1100nm, 50mW Optical Power Sensor

Newport 918D-UV-OD3R
200-1100nm Wavelength Range
50 mW Power

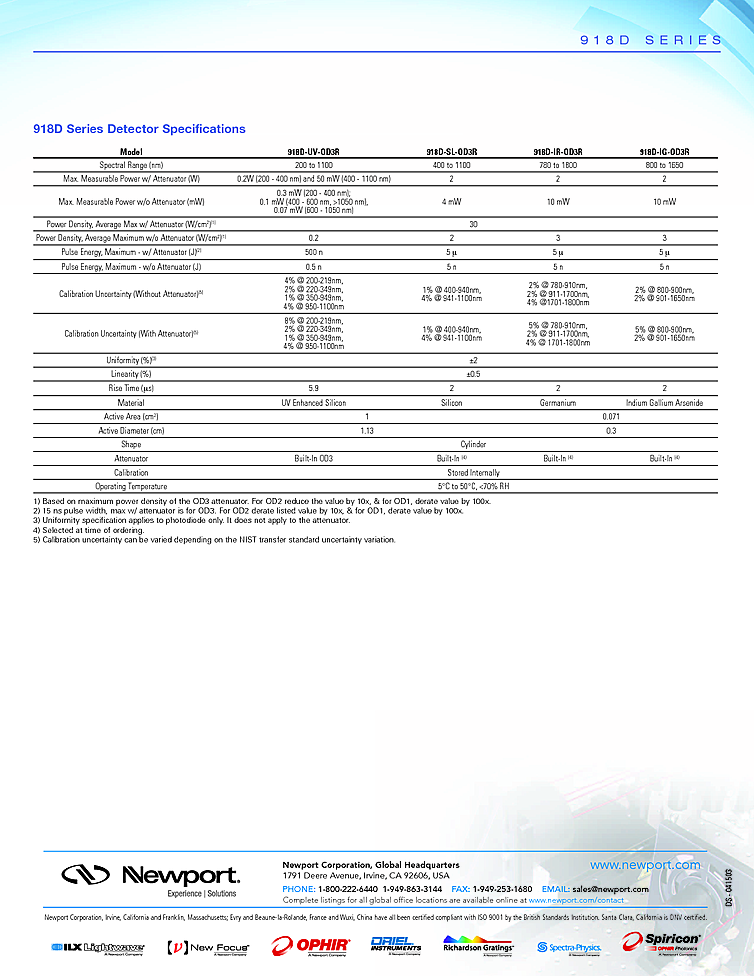

Typical Specifications:
- Spectral Range: 200 to 1100 nm
- Attenuator: OD3
- Calibration Uncertainty (%): ±1.5
- Linearity (%): ±0.5
- Maximum Power Density (W/cm²): 1
- Active Area Diameter (mm): 10
- Rise Time (ns): 1.5
- Fall Time (ns): 1.5
- NEP (W/√Hz): 1.5 x 10^-14

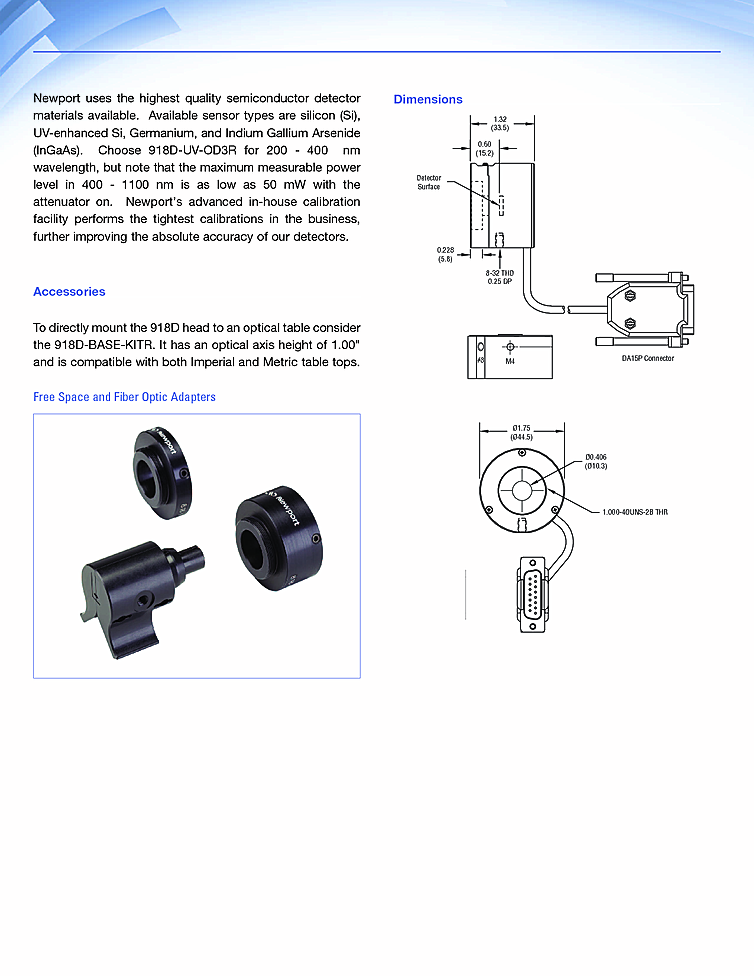

- Dimensions (mm): 42 x 76 x 25
- Weight (g): 70
